Retro fitting Driver Alert System (Fatigue detection) on Pre FL Octavia

virgo79 · 16 October, 2017

Hi,

I have Pre FL Octavia 2 and I have upgraded my instrument cluster to 1Z0 920 843 S and CAN gateway to 7N0 907 530 AN.

Below is my VCDS log.

Address 17: Instruments (J285) Labels:| 5K0-920-xxx-17.clb
Part No SW: 1Z0 920 843 S HW: 1Z0 920 843 S
Component: KOMBI H06 0608
Serial number: 00000000000000
Coding: 110E01
Shop #: WSC 73430 031 00083
ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04114
ROD: EV_Kombi_UDS_VDD_RM09_A04_VW32.rod
VCID: 489ED584F3671F0602-801C

No fault code found.

-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533) Labels:. 7N0-907-530-V2.clb
Part No SW: 7N0 907 530 AN HW: 7N0 907 530 AN
Component: J533 Gateway H56 1642
Revision: H56 Serial number: 061213F1002209
Coding: 351303
Shop #: WSC 73430 790 12345
VCID: 7CF67954FF3F83A6D6-8028

No fault code found.

I have enabled fatigue detection in CAN gateway and have enabled pause recommendation in instrument cluster, still cannot see DAS in assistance menu of cluster.

May i missing something? some component or coding? and how to test if DAS is working?

Thanks.

langers2k · 16 October, 2017

Got a full VCDS autoscan?

Does that gateway support fatigue detection? It might need flashing to add it.

You might also find the ABS and power steering modules need updating or replacing.

virgo79 · 16 October, 2017

Here is my full auto scan

Chassis Type: 1Z-SK35 (7N0)
Scan: 01 02 03 08 09 10 15 16 17 19 1C 25 36 42 44 46 47 52 55 56
62 72

VIN: Mileage: 156670km-97350miles

01-Engine -- Status: OK 0000
02-Auto Trans -- Status: OK 0000
03-ABS Brakes -- Status: Malfunction 0010
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: OK 0000
10-Park/Steer Assist -- Status: Malfunction 0010
15-Airbags -- Status: OK 0000
16-Steering wheel -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: OK 0000
1C-Position Sensing -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
36-Seat Mem. Drvr -- Status: OK 0000
42-Door Elect, Driver -- Status: OK 0000
44-Steering Assist -- Status: OK 0000
46-Central Conv. -- Status: OK 0000
47-Sound System -- Status: OK 0000
52-Door Elect, Pass. -- Status: OK 0000
55-Headlight Range -- Status: OK 0000
56-Radio -- Status: OK 0000
62-Door, Rear Left -- Status: OK 0000
72-Door, Rear Right -- Status: OK 0000

-------------------------------------------------------------------------------
Address 01: Engine Labels: 03G-906-016-BKC.clb
Part No SW: 03G 906 021 LB HW: 03G 906 021 AN
Component: R4 1,9L EDC G000AG 9251
Revision: --H07--- Serial number: SKZ7Z0G4313907
Coding: 0000078
Shop #: WSC 73430 790 00000
VCID: 6ADA4F0C45AB0D1634-803E

No fault code found.
Readiness: 0 0 0 0 1

-------------------------------------------------------------------------------
Address 02: Auto Trans Labels: 02E-927-770.clb
Part No SW: 02E 300 044 G HW: 02E 927 770 AE
Component: GSG DSG 081 1404
Revision: 04608010 Serial number: 00000705160223
Coding: 0000020
Shop #: WSC 73430 790 00000
VCID: 193840C0D04D568E6D-804C

No fault code found.

-------------------------------------------------------------------------------
Address 03: ABS Brakes Labels: 1K0-907-379-MK60-F.lbl
Part No SW: 1K0 907 379 AC HW: 1K0 907 379 AC
Component: ESP FRONT MK60 0101
Revision: 00H11001
Coding: 0005249
Shop #: WSC 73430 790 00000
VCID: 73E452681261CCDE87-8026

1 Fault Found:
01486 - System Function Test Activated
000 - -

-------------------------------------------------------------------------------
Address 08: Auto HVAC (J255) Labels:| 5K0-907-044.clb
Part No SW: 5K0 907 044 EK HW: 5K0 907 044 EK
Component: Climatronic H17 1010
Revision: 00003001
Coding: 0000000002
Shop #: WSC 73430 790 00999
ASAM Dataset: EV_Climatronic A01010
ROD: EV_ClimaAutoBasis_SK35.rod
VCID: 78FE6544C307AF86B2-802C

No fault code found.

-------------------------------------------------------------------------------
Address 09: Cent. Elect. Labels:. 3C0-937-049-30-H.lbl
Part No SW: 3C0 937 049 AJ HW: 3C0 937 049 AJ
Component: Bordnetz-SG H54 2202
Revision: 00H54000 Serial number: 00000005009614
Coding: E1028E111004140000110D000000000000087F065C000000000000000000
Shop #: WSC 73430 790 12345
VCID: 71E85860687DFECE75-8024

Subsystem 1 - Part No: 1Z2 955 119 C Labels: 1KX-955-119.CLB
Component: Wischer 050607 022 0601
Coding: 00055223
Shop #: WSC 73430

Subsystem 2 - Part No: 1K0 955 559 AF Labels: 1K0-955-559-AF.CLB
Component: RLS 010707 046 0204
Coding: 00471077
Shop #: WSC 73430

No fault code found.

-------------------------------------------------------------------------------
Address 10: Park/Steer Assist (J446) Labels:| 1Q0-919-475.clb
Part No SW: 56D 919 475 A HW: 56D 919 475
Component: PARKHILFE 8K H02 0006
Revision: -------- Serial number: 35821404003728
Coding: 100101
Shop #: WSC 12345 123 12345
ASAM Dataset: EV_EPHVA18VW4110000 001007
ROD: EV_EPHVA18VW4110000.rod
VCID: 336492689AE18CDE47-8066

1 Fault Found:
12718592 - Databus
U1121 00 [009] - Missing Message
Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Status: 00000001
Fault Priority: 6
Fault Frequency: 1
Reset counter: 223
Mileage: 156675 km
Date: 2017.10.16
Time: 09:09:34

-------------------------------------------------------------------------------
Address 15: Airbags Labels: 1K0-909-605.lbl
Part No SW: 1K0 909 605 AA HW: 1K0 909 605 AA
Component: Q3 AIRBAG VW8 027 0900
Revision: 11027000 Serial number: 003B5D128VK8
Coding: 0020787
Shop #: WSC 73430 790 00000
VCID: 6BD44A084A51141E4F-803E

Subsystem 1 - Serial number: 6332MSME173C651BH

Subsystem 2 - Serial number: 6342MSME1C13626DG

Subsystem 3 - Serial number: 6351HSME0F220A253

Subsystem 4 - Serial number: 6361HSME0F1643715

No fault code found.

-------------------------------------------------------------------------------
Address 16: Steering wheel Labels: 1K0-953-549-MY9.lbl
Part No SW: 1K0 953 549 CH HW: 1K0 953 549 CH
Component: J0527 056 0111
Coding: 0101633
Shop #: WSC 73430 790 00000
VCID: 7AFA7F4C350BBD96C4-802E

Subsystem 1 - Part No: 3T0 959 537 A Labels: 3C8-959-537.CLB
Component: E221__MFL-URO H07 0012
Coding: 00000131
Shop #: WSC 00000

No fault code found.

-------------------------------------------------------------------------------
Address 17: Instruments (J285) Labels:| 5K0-920-xxx-17.clb
Part No SW: 1Z0 920 843 S HW: 1Z0 920 843 S
Component: KOMBI H06 0608
Serial number: 00000000000000
Coding: 110E01
Shop #: WSC 73430 031 00083
ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04114
ROD: EV_Kombi_UDS_VDD_RM09_A04_VW32.rod
VCID: 489ED584F3671F0602-801C

No fault code found.

-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533) Labels:. 7N0-907-530-V2.clb
Part No SW: 7N0 907 530 AN HW: 7N0 907 530 AN
Component: J533 Gateway H56 1642
Revision: H56 Serial number: 061213F1002209
Coding: 351303
Shop #: WSC 73430 790 12345
VCID: 7CF67954FF3F83A6D6-8028

No fault code found.

-------------------------------------------------------------------------------
Address 1C: Position Sensing Labels: 1Kx-919-xxx-1C.lbl
Part No SW: 5N0 919 879 HW: 5N0 919 879
Component: Kompass 001 0001
Revision: 00001000 Serial number: 1225223RAYD606
Coding: 0000002
Shop #: WSC 73430 790 00000
VCID: 7EF2735C292391B6F8-802A

No fault code found.

-------------------------------------------------------------------------------
Address 25: Immobilizer (J334) Labels:| 5K0-920-xxx-25.clb
Part No SW: 5K0 953 234 HW: 5K0 953 234
Component: IMMO H06 0608
Serial number: SKZ7Z0G4313907
Coding: 000000
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03009
ROD: EV_Immo_UDS_VDD_RM09_VW21.rod
VCID: 6ADA4F0C8DAB0D1634-803E

No fault code found.

-------------------------------------------------------------------------------
Address 36: Seat Mem. Drvr Labels: 3C0-959-760.lbl
Part No SW: 3C0 959 760 E HW: 3C0 959 760 E
Component: Sitzverstellung 1101
Revision: 00005000 Serial number: 00000000000000
Shop #: WSC 00000 000 00000
VCID: 2F6C9E18BEC9A83E23-807A

No fault code found.

-------------------------------------------------------------------------------
Address 42: Door Elect, Driver Labels:. 1K0-959-701-MAX3.clb
Part No SW: 1T0 959 701 E HW: 1T0 959 701 E
Component: Tuer-SG 006 1204
Coding: 0001014
Shop #: WSC 73430 790 00000
VCID: 3978A040708D768E8D-806C

No fault code found.

-------------------------------------------------------------------------------
Address 44: Steering Assist Labels: 1Kx-909-144-G2V3.clb
Part No: 1K2 909 144 M
Component: EPS_ZFLS Kl.069 H08 1901
Shop #: WSC 02069 000 90108
VCID: 3662AB7C419399F660-8062

No fault code found.

-------------------------------------------------------------------------------
Address 46: Central Conv. Labels:. 1K0-959-433-MAX.clb
Part No SW: 1K0 959 433 BT HW: 1K0 959 433 BT
Component: KSG PQ35 G2 020 0204
Revision: 00020000 Serial number: 00000000000000
Coding: 98801A085283007F3F020F0FC008DFD6907C00
Shop #: WSC 00046 000 00000
VCID: 030402A842C1FC5E97-8056

Subsystem 1 - Part No: 1K0 951 605 C
Component: LIN BACKUP HORN H05 1501

Subsystem 2 - Part No: 5J0 951 172
Component: DWA-Sensor H03 1211

Subsystem 3 - Part No: 5J0 951 172
Component: DWA-Sensor H03 1211

No fault code found.

-------------------------------------------------------------------------------
Address 47: Sound System Labels: 1Z0-035-456.lbl
Part No SW: 1Z0 035 456 HW: 532 226 800
Component: SK35-DSP 4 1000
Revision: 4 Serial number: 00029700
Coding: 0000000001
Shop #: WSC 73430 790 12345
VCID: 72EA576C6D7BC5D68C-8026

No fault code found.

-------------------------------------------------------------------------------
Address 52: Door Elect, Pass. Labels:. 1K0-959-702-MAX3.clb
Part No SW: 1T0 959 702 E HW: 1T0 959 702 E
Component: Tuer-SG 006 1204
Coding: 0001014
Shop #: WSC 73430 790 00000
VCID: 3A7ABF4C758B7D9684-806E

No fault code found.

-------------------------------------------------------------------------------
Address 55: Headlight Range Labels: 1T0-907-357.lbl
Part No: 1T0 907 357
Component: Dynamische LWR 0003
Coding: 0000007
Shop #: WSC 73430 790 00000
VCID: 74E65174176FCBE69E-8020

No fault code found.

-------------------------------------------------------------------------------
Address 56: Radio Labels: 1K0-035-1xx-56.lbl
Part No SW: 1Z0 035 156 D HW: 1Z0 035 156 D
Component: Radio FO3 004 0011
Revision: 00004000 Serial number: SKZ7Z4G0001824
Coding: 0000020
Shop #: WSC 73430 790 00000
VCID: 3364926852E18CDE47-8066

No fault code found.
-------------------------------------------------------------------------------
Address 62: Door, Rear Left Labels:. 1K0-959-703-GEN3.clb
Part No SW: 1K0 959 703 J HW: 1K0 959 703 J
Component: Tuer-SG 006 1201
Coding: 0000144
Shop #: WSC 73430 790 1012544
VCID: 377CA678469960FE7B-8062

No fault code found.

-------------------------------------------------------------------------------
Address 72: Door, Rear Right Labels:. 1K0-959-704-GEN3.clb
Part No SW: 5K0 959 704 A HW: 5K0 959 704 A
Component: Tuer-SG 007 2101
Coding: 0000144
Shop #: WSC 73430 790 1012550
VCID: 3364926852E18CDE47-8066

No fault code found.

Is there any output test for DAS?

langers2k · 16 October, 2017

Looking at that, I think you'd need:

- a new ABS pump, MK60EC1 rather than MK60

- a new power steering rack, gen3 rather than gen2

I have no idea if anything else would need changing as I've not seen anyone try this on a pre-FL.

You can check the measuring blocks of the CAN gateway, assuming everything is good it should look like this:

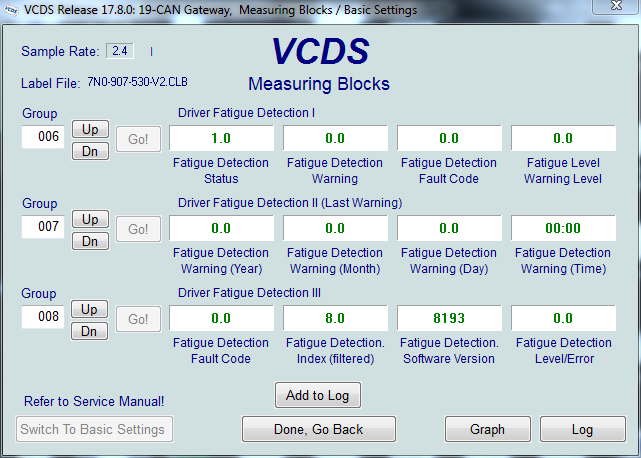

I would expect there to be a non zero fault code shown in group 6 in your car.

virgo79 · 17 October, 2017

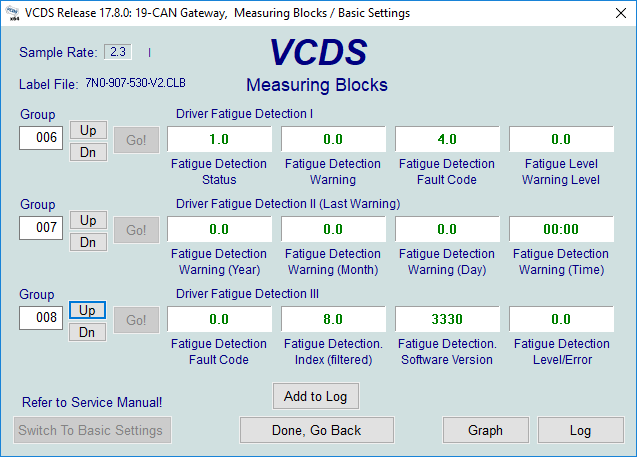

Attached is my screenshot, I see 4 in error code

virgo79 · 19 October, 2017

Issue fixed by flashing CAN gateway SW to 7N0907530BL and applying parameter file.

All credit to langers2k , wouldn't have been possible without his help.

Attached is my measuring block post upgrade.

Harrytech · 21 November, 2017

On 10/19/2017 at 12:56, virgo79 said:

Issue fixed by flashing CAN gateway SW to 7N0907530BL and applying parameter file.

All credit to langers2k , wouldn't have been possible without his help.

Attached is my measuring block post upgrade.

How did u flash can gateway . And what is the parameter file? Are u referring to old coding values

langers2k · 21 November, 2017

@Harrytech - Google is your friend, https://www.drive2.ru/l/8674505/

Continue at your own risk, flashing always has it's dangers...

Harrytech · 24 November, 2017

On 11/22/2017 at 00:06, langers2k said:

@Harrytech - Google is your friend, https://www.drive2.ru/l/8674505/

Continue at your own risk, flashing always has it's dangers...

I tried flashing but it retains my original SW even after successful session .. any idea why?

langers2k · 24 November, 2017

Post a full autoscan and what are you using to flash?

Any screenshots etc might be useful...

Harrytech · 24 November, 2017

3 hours ago, langers2k said:

Post a full autoscan and what are you using to flash?

Any screenshots etc might be useful...

Using Odis engineering. I have AK as stock .. flashed it with AN 1642 sgo. Though post flash the identification still showed AK. I chose to run the parameters file anyways and it worked. Not sure why version was still AK.

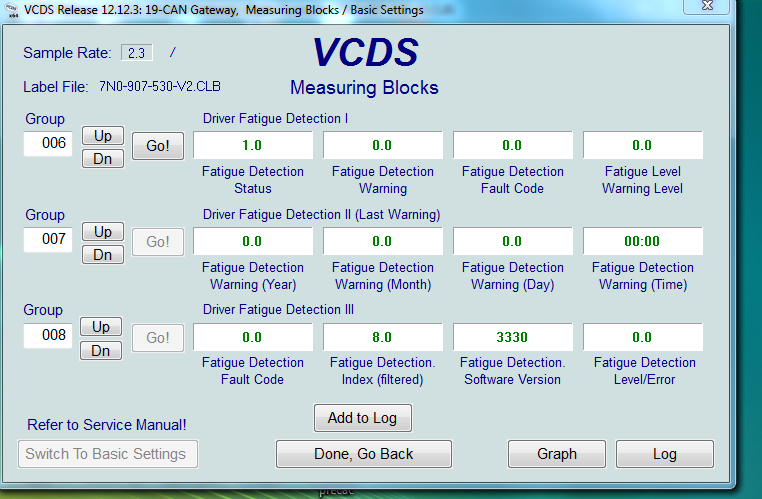

On Channel 6 i have no Errors under fatigue detection fault code. But my Channel 8 fatigue detection sw version is same pre and post flash (3330).

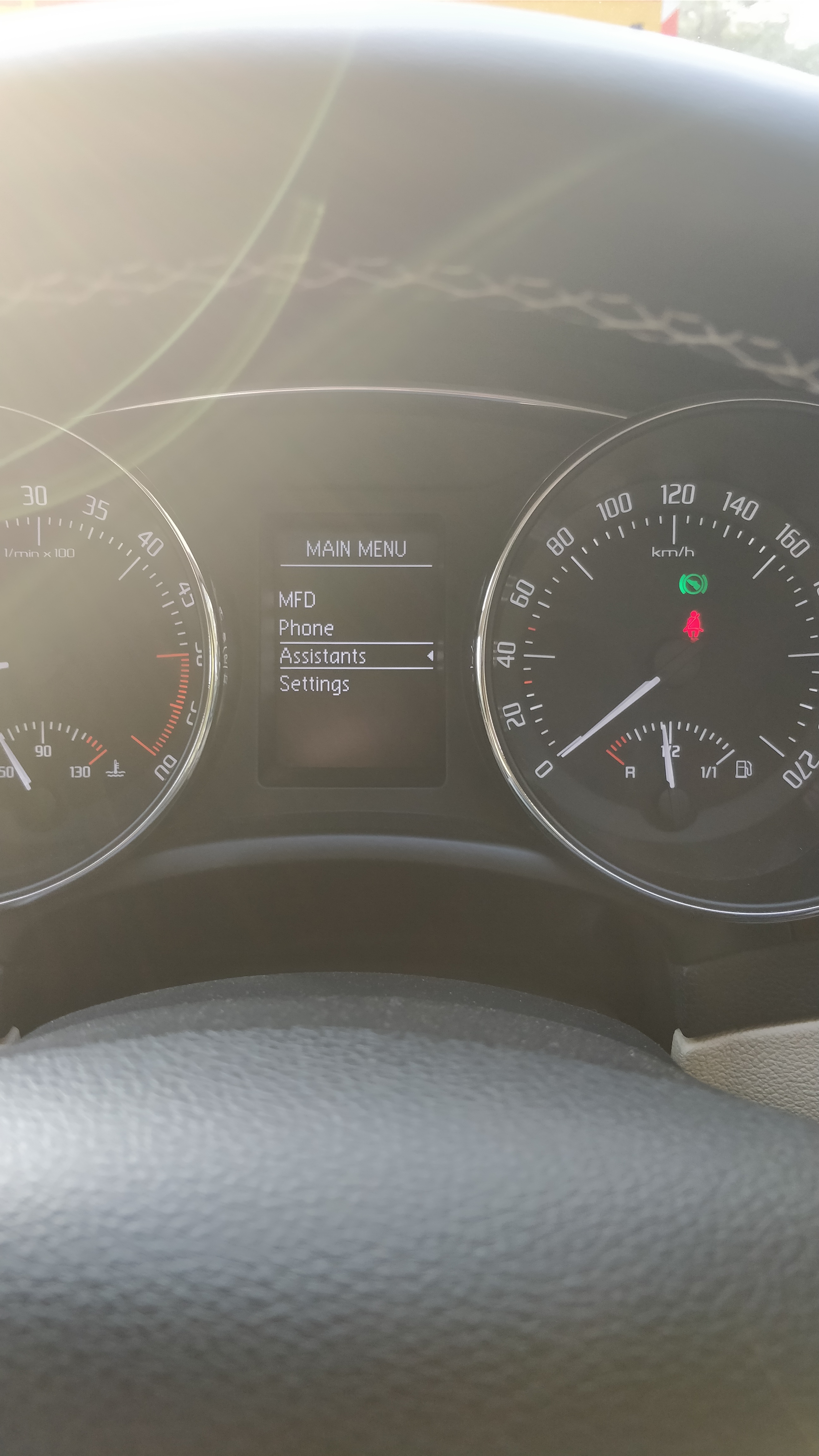

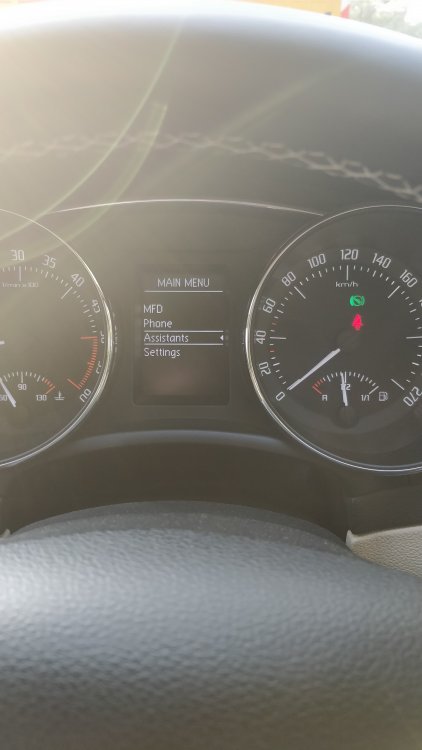

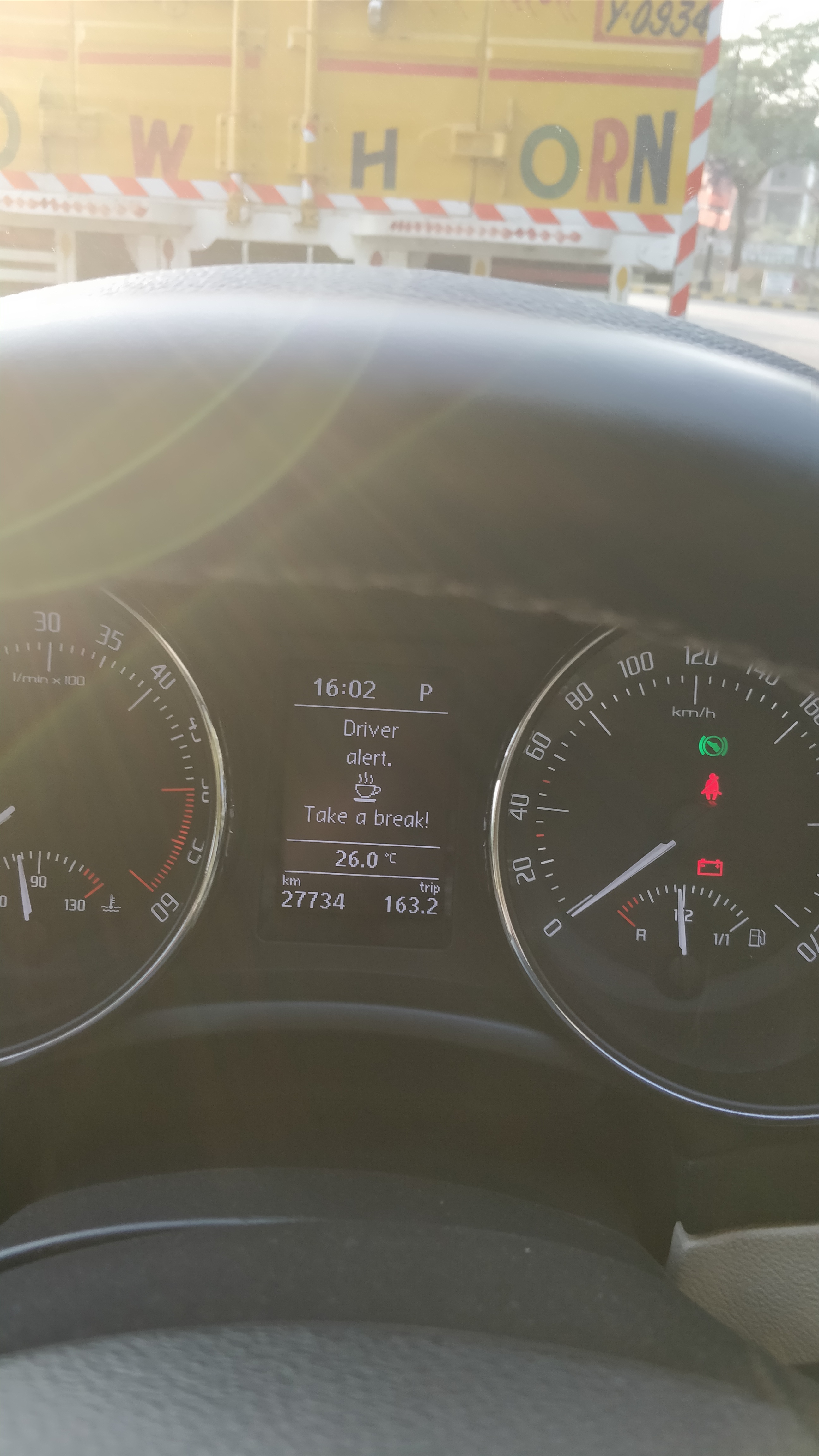

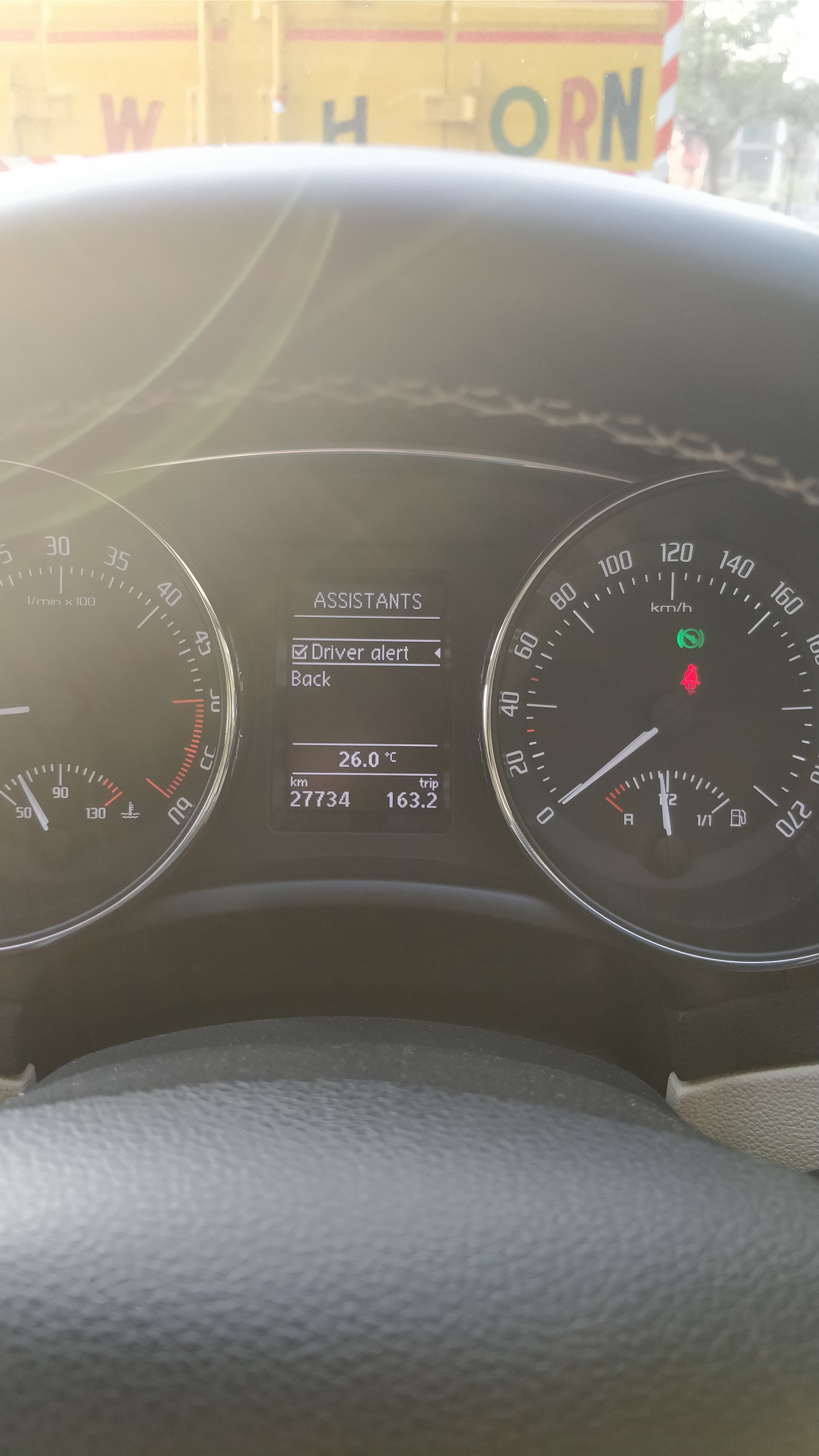

Here is the result after i ran the parameter file and tested with VCDS Fatigue test on Canbus. (Earlier it use to say channel not supported)

Edited 24 November, 2017 by Harrytech
additional info

langers2k · 24 November, 2017

That's normal.

As listed on the drive2 page:

- E, AB, AF, AK rev will become AK.

- AA, AE, AJ, AN rev will become AN.

If doesn't make any difference as long as the SW version is 1642, the suffix will change depending on the hardware of the gateway.

Harrytech · 24 November, 2017

3 minutes ago, langers2k said:

That's normal.

As listed on the drive2 page:

- E, AB, AF, AK rev will become AK.

- AA, AE, AJ, AN rev will become AN.

If doesn't make any difference as long as the SW version is 1642, the suffix will change depending on the hardware of the gateway.

so you are saying all the above will support MKE? i understood the drive2 page as:

a. Stock canbus 7N0907530AF Ver 1635 to be flashed to 7N0907530AJ Ver 1635

b. Stock 7N0907530AT Ver 1663 to be flashed to 7N0907530BC Ver 1663

c. Stock 7N0907530AK Ver 1642 to be flashed to 7N0907530AN Ver 1642 (THIS IS MY FILE)

d. Stock 7N0907530AL Ver 1642 to be flashed to 7N0907530AN Ver 1642

e. Stock 7N0907530AM Ver 1642 to be flashed to 7N0907530AN Ver 1642

did i understand wrong?

langers2k · 24 November, 2017

I'm saying that there is one flash file (AN 1642 sgo) which can be used to update many gateways to SW:1642. The part number after flashing will depend on the hardware inside the gateway. In your case, a AK gateway H57, it will never become a AN gateway H52.

Your AK gateway was already running SW:1642. There was no need to flash the AN 1642 sgo, you just needed the dataset XML flashing...

The fatigue detection software version won't change as it's running the same software (1642) as before the flash, all you've done is enabled MKE

Harrytech · 24 November, 2017

5 minutes ago, langers2k said:

I'm saying that there is one flash file (AN 1642 sgo) which can be used to update many gateways to SW:1642. The part number after flashing will depend on the hardware inside the gateway. In your case, a AK gateway H57, it will never become a AN gateway H52.

Your AK gateway was already running SW:1642. There was no need to flash the AN 1642 sgo, you just needed the dataset XML flashing...

The fatigue detection software version won't change as it's running the same software (1642) as before the flash, all you've done is enabled MKE

SUPER!

just to understand it clearly and also help my friends - suppose some one has 7N0907530H ver 1620 and 7N0907530AE ver1633 which Sgo should be applied? this example will help me understand it clearly.

also is it possible to do this in MQB Octavia 5E

Address 19: CAN Gateway (J533) Labels: 5Q0-907-530-V1.clb
Part No SW: 5Q0 907 530 AM HW: 5Q0 907 530 F
Component: GW MQB High 128 1265

Sorry to bug you so much

langers2k · 24 November, 2017

Based on the drive2 page:

- 7N0907530H takes 7N0907530AJ_1635.sgo

- 7N0907530AE takes 7N0907530AN_1642.sgo

Both should support MKE after the flash and dataset have been completed.

These files aren't suitable for MQB cars. To enabled MKE on these, you'll need a dealer to activate a FeC/SWaP code.

Eddie-NL · 24 November, 2017

AK is a low version

AN is a high version

you can't make a low version into a high version

both versions support MKE

Harrytech · 24 November, 2017

1 hour ago, langers2k said:

Based on the drive2 page:

- 7N0907530H takes 7N0907530AJ_1635.sgo

- 7N0907530AE takes 7N0907530AN_1642.sgo

Both should support MKE after the flash and dataset have been completed.

These files aren't suitable for MQB cars. To enabled MKE on these, you'll need a dealer to activate a FeC/SWaP code.

Awesome .. thanks a million

dan_irinel · 27 November, 2017

On 11/24/2017 at 17:03, Eddie-NL said:

AK is a low version

AN is a high version

you can't make a low version into a high version

both versions support MKE

Is AL a high version or low version?

Where can I find this kind of info?

Eddie-NL · 27 November, 2017

3 hours ago, dan_irinel said:

Is AL a high version or low version?

Where can I find this kind of info?

if you have the gateway

go in adaptions and see if you can enable extended can

dan_irinel · 27 November, 2017

22 minutes ago, Eddie-NL said:

if you have the gateway

go in adaptions and see if you can enable extended can

I ordered a AN gateway, but instead I got an AL. I'm asking because I intend to install PLA 2.0, RVC, MKE, TPMS, OPS and I want to know if AL gateway supports all of these functions.

Edited 27 November, 2017 by dan_irinel

Eddie-NL · 27 November, 2017

32 minutes ago, dan_irinel said:

I ordered a AN gateway, but instead I got an AL. I'm asking because I intend to install PLA 2.0, RVC, MKE, TPMS, OPS and I want to know if AL gateway supports all of these functions.

extended can (high version) only required for high tpms

blackspaven · 30 November, 2017

All that so you can get a cup of tea pop up on your screen??!

sarfraz1997 · 9 May, 2020

On 17/10/2017 at 16:07, virgo79 said:

Attached is my screenshot, I see 4 in error code

Hi, I have a 2011 Mk6 Jetta (5C). I have enabled Fatigue Detection in CAN Gateway and Pause Recommendation in the Instruments. But I'm not able to get the assistants menu in the MFD or the fatigue detection system. Upon checking the measuring blocks, I have a Fatigue Detection Fault Code "4.0" too. I am attaching a VCDS scan of my car. Could you pls help me out on how to proceed?

Saturday,09,May,2020,20:45:38:59248

VCDS -- Windows Based VAG/VAS Emulator Running on Windows 10 x64

VCDS Version: 18.9.1.0

Data version: 20190114 DS296.0

www.Ross-Tech.com

VIN: WVWK11160CA551350 License Plate:

Chassis Type: 16-VW32 (7N0)

Scan: 01 02 03 08 09 10 15 16 17 19 25 42 44 46 52 56 62 72

VIN: WVWK11160CA551350 Mileage: 90070km-55966miles

01-Engine -- Status: OK 0000

02-Auto Trans -- Status: OK 0000

03-ABS Brakes -- Status: OK 0000

04-Steering Angle -- Status: OK 0000

08-Auto HVAC -- Status: OK 0000

09-Cent. Elect. -- Status: OK 0000

10-Park/Steer Assist -- Status: OK 0000

15-Airbags -- Status: OK 0000

16-Steering wheel -- Status: OK 0000

17-Instruments -- Status: OK 0000

19-CAN Gateway -- Status: OK 0000

25-Immobilizer -- Status: OK 0000

42-Door Elect, Driver -- Status: OK 0000

44-Steering Assist -- Status: OK 0000

46-Central Conv. -- Status: OK 0000

52-Door Elect, Pass. -- Status: OK 0000

56-Radio -- Status: OK 0000

62-Door, Rear Left -- Status: OK 0000

72-Door, Rear Right -- Status: OK 0000

-------------------------------------------------------------------------------

Address 01: Engine (J623-CLCB) Labels:. 03L-906-018-CFF.clb

Part No SW: 03L 906 018 GJ HW: 03L 907 309 R

Component: R4 2.0l TDI H25 9977

Revision: 42H25--- Serial number: 00000000000000

Coding: 001D0012042500080000

Shop #: WSC 12704 938 00000

ASAM Dataset: EV_ECM20TDI01103L906018GJ 003006

ROD: EV_ECM20TDI01103L906018GJ.rod

VCID: 78FF37A4C3343B8AE5-802C

No fault code found.

Readiness: 0 0 0 0 1

-------------------------------------------------------------------------------

Address 02: Auto Trans Labels: 02E-927-770.clb

Part No SW: 02E 300 057 A HW: 02E 927 770 AL

Component: GSG DSG AG6 511 2706

Revision: 05351113 Serial number: 00001107250497

Coding: 0000020

Shop #: WSC 00047 000 00000

VCID: 173D1418266AD4F20C-8042

No fault code found.

-------------------------------------------------------------------------------

Address 03: ABS Brakes (J104) Labels:. 1K0-907-379-60EC1F.clb

Part No SW: 1K0 907 379 BJ HW: 1K0 907 379 BJ

Component: ESP MK60EC1 H31 0121

Revision: 00H31001

Coding: A63B40F8092700FB650E02E990190082250800

Shop #: WSC 00047 123 12345

VCID: 7BF528A8FA02109288-802E

No fault code found.

-------------------------------------------------------------------------------

Address 08: Auto HVAC (J301) Labels:| 3C8-907-336.clb

Part No SW: 7N0 907 426 AM HW: 7N0 907 426 AM

Component: AC Manuell H19 0507

Revision: 00001015

Coding: 0000001002

Shop #: WSC 00047 000 00090

ASAM Dataset: EV_ACManueBHBVW36X A01010

ROD: EV_ACManueBHBVW36X_VW32.rod

VCID: 7F0DDCB8E61A0CB2A4-802A

No fault code found.

-------------------------------------------------------------------------------

Address 09: Cent. Elect. (J519) Labels:. 1K0-937-08x-09.clb

Part No SW: 5K0 937 086 J HW: 5K0 937 086 J

Component: BCM PQ35 M 011 0046

Revision: BC011001

Coding: 06000A38F82900C0C0080080140081EC07F1008850A08120DC8040040040

Shop #: WSC 00066 123 12345

VCID: 3B75E8A8BA82D092C8-806E

Subsystem 1 - Part No: 1K0 955 559 AH Labels: 1K0-955-559-AG.CLB

Component: RLS 050811 05 54 0403

Coding: 07300A

No fault code found.

-------------------------------------------------------------------------------

Address 10: Park/Steer Assist (J446) Labels:| 1Q0-919-475.clb

Part No SW: 5C6 919 475 HW: 7E0 919 475 A

Component: PARKHILFE 8K H10 0005

Revision: -------- Serial number: 84091116401870

Coding: 108101

Shop #: WSC 00047 000 00090

ASAM Dataset: EV_EPHVA18VW3610000 001003

ROD: EV_EPHVA18VW3610000.rod

VCID: 71E90A80A04E6AC222-8024

No fault code found.

-------------------------------------------------------------------------------

Address 15: Airbags (J234) Labels:| 5K0-959-655.clb

Part No SW: 5C0 959 655 D HW: 5C0 959 655 D

Component: AirbagVW10G 013 0613

Serial number: 003G7RA0J2ZX

Coding: 00003241

Shop #: WSC 00047 000 00000

ASAM Dataset: EV_AirbaVW10SMEVW360 A01014

ROD: EV_AirbaVW10SMEVW360.rod

VCID: 3365C0889AD218D210-8066

Crash sensor for side airbag: driver side:

Subsystem 1 - Part No SW: 5K0 959 354 HW: 5K0 959 354

Component: S.Sens.Fahr.V H01 ----

Serial number: 3572MSME646F0542ZZZZ

Crash sensor for side airbag: front passenger side:

Subsystem 2 - Part No SW: 5K0 959 354 HW: 5K0 959 354

Component: S.Sens.Beif.V H01 ----

Serial number: 3582MSME7C750542ZZZ-

Crash sensor for side airbag: rear: driver side:

Subsystem 3 - Part No SW: 5K0 959 351 A HW: 5K0 959 351 A

Component: S.Sens.Fahr.H H02 ----

Serial number: 3516KSME291D1E13ZZZX

Crash sensor for side airbag: rear: passenger side:

Subsystem 4 - Part No SW: 5K0 959 351 A HW: 5K0 959 351 A

Component: S.Sens.Beif.H H02 ----

Serial number: 3526KSME531C3712ZZZO

No fault code found.

-------------------------------------------------------------------------------

Address 16: Steering wheel (J527) Labels:| 5K0-953-569.clb

Part No SW: 1K5 953 521 AK HW: 5K0 953 569 B

Component: LENKS.MODUL 014 0140

Revision: FF010040 Serial number: 20110726300620

Coding: 0892140000

Shop #: WSC 00047 123 00090

ASAM Dataset: EV_SMLSNGVOLWSXS A01004

ROD: EV_SMLSNGVOLWS.rod

VCID: 76E3399CC9204DFAF7-8022

Multifunction steering wheel control module:

Subsystem 1 - Part No SW: 5K0 959 542 HW: 5K0 959 542 Labels: 3C8-959-537.CLB

Component: E221__MFL-TAS H08 0010

Coding: 830000

No fault code found.

-------------------------------------------------------------------------------

Address 17: Instruments (J285) Labels:| 5K0-920-xxx-17.clb-SRI1

Part No SW: 5C6 920 871 A HW: 5C6 920 871 A

Component: KOMBI H04 0617

Serial number: 00000000000000

Coding: 171B00

Shop #: WSC 00047 123 00090

ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04114

ROD: EV_Kombi_UDS_VDD_RM09_004_VW32.rod

VCID: 2A5BDDEC4D18591AA3-807E

No fault code found.

-------------------------------------------------------------------------------

Address 19: CAN Gateway (J533) Labels:. 7N0-907-530-V2.clb

Part No SW: 7N0 907 530 H HW: 1K0 907 951

Component: J533 Gateway H42 1620

Revision: H42 Serial number: 210711F1000786

Coding: 351003

Shop #: WSC 00047 123 12345

VCID: 3561FE909CA606E23E-8060

No fault code found.

-------------------------------------------------------------------------------

Address 25: Immobilizer (J334) Labels:| 5K0-920-xxx-25.clb

Part No SW: 5K0 953 234 HW: 5K0 953 234

Component: IMMO H04 0617

Serial number:

Coding: 000000

Shop #: WSC 00000 000 00000

ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03009

ROD: EV_Immo_UDS_VDD_RM09.rod

VCID: 6ADB1DEC8D98991A63-803E

No fault code found.

-------------------------------------------------------------------------------

Address 42: Door Elect, Driver (J386) Labels:| 3C0-959-70X-GEN4.clb

Part No SW: 561 959 701 A HW: 3C0 959 793 C

Component: TUER-SG FT 002 0516

Revision: 12110009 Serial number: 0002922906

Coding: 0012B7

Shop #: WSC 01383 790 50316

ASAM Dataset: EV_TSGFPQ35BRFVW46X A04001

ROD: EV_TSGFPQ35BRFVW46X_VW32.rod

VCID: 1C370B34174CB7AA21-8048

Slave Driver:

Subsystem 1 - Part No SW: 3C0 959 704 B HW: 3C0 959 794 C Labels: 1K0-959-70X-GEN4.CLB

Component: J389__TSG-HR 006 1508

Serial number: 00000005878191

Coding: 000290

No fault code found.

-------------------------------------------------------------------------------

Address 44: Steering Assist Labels: 1K0-909-14x-GEN3.clb

Part No: 1K0 909 144 M

Component: EPS_ZFLS Kl. 70 3201

Revision: 00H20000

Shop #: WSC 02069 000 90108

VCID: 3467C39457DC1FEA09-8060

No fault code found.

-------------------------------------------------------------------------------

Address 52: Door Elect, Pass. (J387) Labels:| 3C0-959-70X-GEN4.clb

Part No SW: 561 959 702 A HW: 3C0 959 792 C

Component: TUER-SG BT 002 0516

Revision: 14110009 Serial number: 0002892582

Coding: 0012B6

Shop #: WSC 01383 790 50316

ASAM Dataset: EV_TSGBPQ35BRFVW46X A04001

ROD: EV_TSGBPQ35BRFVW46X_VW32.rod

VCID: 1D3106300C56BEA2D6-8048

Slave Passenger:

Subsystem 1 - Part No SW: 3C0 959 703 B HW: 3C0 959 795 C Labels: 1K0-959-70X-GEN4.CLB

Component: J388__TSG-HL 006 1508

Serial number: 00000005956442

Coding: 000290

No fault code found.

-------------------------------------------------------------------------------

Address 56: Radio (J503) Labels: None

Part No SW: 6RF 035 187 C HW: 6RF 035 187 C

Component: Radio 557 5522

Revision: -------- Serial number: VWZ7Z2T3107373

Coding: 0E000400000000

Shop #: WSC 01234 785 00200

VCID: 49998260E05E72024A-801C

No fault code found.

End-------------------------(Elapsed Time: 02:28)--------------------------

sarfraz1997 · 9 May, 2020

Also, my Fatigue Detection Software Version is 204

Retro fitting Driver Alert System (Fatigue detection) on Pre FL Octavia

Recommended Posts

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Create an account or sign in to comment

Create an account

Sign in

Recently Browsing 0 members

Community Partner

Important Information
