Hi,  does anyone know the torque settings for the retaining bolts & sliders on front callipers of Superb Mk2  2008/9.  As I will be replacing  discs & pads very soon, any help or suggestions if you have done this job would be appreciated.

Repairing front brake, brake caliper FNR-G

  Note

t	Observe the instructions for changing the pad → Chapter

t	Brake inspection → Chapter.

t	After replacing the brake pads, depress brake pedal firmly several times when the vehicle is stationary to ensure the brake pads are properly seated in their normal operating position.

t	Use the brake filling and bleeding device e. g. -VAS 5234- to drain the brake fluid from the brake fluid reservoir.

t	Use the brake pedal load, e.g. -V.A.G 1869/2 - before removing a brake caliper or separating a brake hose from the brake caliper.





1 -	Cover plate

2 -	Torx screw, 12 Nm

3 -	Brake disc

q	internally ventilated, Ø 345 mm (17" chassis) → Chapter

q	Brake disc thickness and wear limit → Chapter

q	always replace axle-wise

q	unscrew the brake caliper before removing

q	Assignment → Electronic Catalogue of Original Parts

4 -	Screw, 4 Nm

5 -	Brake carrier

q	screwed onto the wheel-bearing housing

6 -	Retaining spring

q	held on the retaining spring of the brake pad and pushed behind the brake caliper

7 -	Screw, 190 Nm

q	clean when using again

8 -	Brake pads

q	Brake lining thickness → Chapter

q	with wear indicator

q	with a corresponding wear (limit: approx. 4 mm) a warning light in the dash panel insert lights up

q	Wear limit → Chapter

q	always replace axle-wise

q	removing and installing → Chapter

q	Assignment → Electronic Catalogue of Original Parts

q	Observe the instructions for changing the pad → Chapter

9 -	Brake caliper

q	do not unscrew the brake line when replacing the brake pad

q	removing and installing → Chapter

q	repairing → Chapter

q	Assignment → Electronic Catalogue of Original Parts

q	Observe the instructions for changing the pad → Chapter

10 -	Guide bolt, 30 Nm

11 -

Cap

q

remove

12 -

Support

13 -	Screw, 15 Nm

14 -	Brake line, 14 Nm

15 -	Brake line

16 -	Screw, 8 Nm

17 -

Support

18 -	Spring clip



Whoa.

I think item 7 and 10 have a typo!!!!!

Edited 21 July, 20196 yr by 3T51704x4

59 minutes ago, StuH78 said:







2 -	Torx screw, 12 Nm



4 -	Screw, 4 Nm

7 -	Screw, 190 Nm



10 -	Guide bolt, 30 Nm





Think 10 & 7 are mixed up.



Oh yes!  Or at least 30Nm works for me (and my hex bits).

From another chapter in the manual:



Repairing front brake, brake caliper FNR-G

  Note

t	Observe the instructions for changing the pad → Chapter

t	Brake inspection → Chapter.

t	After replacing the brake pads, depress brake pedal firmly several times when the vehicle is stationary to ensure the brake pads are properly seated in their normal operating position.

t	Use the brake filling and bleeding device e. g. -VAS 5234- to drain the brake fluid from the brake fluid reservoir.

t	Use the brake pedal load, e.g. -V.A.G 1869/2 - before removing a brake caliper or separating a brake hose from the brake caliper.

1 -	Cover plate

2 -	Torx screw, 12 Nm

3 -	Brake disc

q	internally ventilated, Ø 345 mm (17" chassis) → Chapter

q	Brake disc thickness and wear limit → Chapter

q	always replace axle-wise

q	unscrew the brake caliper before removing

q	Assignment → Electronic Catalogue of Original Parts

4 -	Screw, 4 Nm

5 -	Brake carrier

q	screwed onto the wheel-bearing housing

6 -	Retaining spring

q	held on the retaining spring of the brake pad and pushed behind the brake caliper

7 -	Screw, 190 Nm

q	clean when using again

8 -	Brake pads

q	Brake lining thickness → Chapter

q	with wear indicator

q	with a corresponding wear (limit: approx. 4 mm) a warning light in the dash panel insert lights up

q	Wear limit → Chapter

q	always replace axle-wise

q	removing and installing → Chapter

q	Assignment → Electronic Catalogue of Original Parts

q	Observe the instructions for changing the pad → Chapter

9 -	Brake caliper

q	do not unscrew the brake line when replacing the brake pad

q	removing and installing → Chapter

q	repairing → Chapter

q	Assignment → Electronic Catalogue of Original Parts

q	Observe the instructions for changing the pad → Chapter

10 -	Guide bolt, 30 Nm

11 -

Cap

q

remove

12 -

Support

13 -	Screw, 15 Nm

14 -	Brake line, 14 Nm

15 -	Brake line

16 -	Screw, 8 Nm

17 -

Support

18 -	Spring clip



Thanks STuH78  this is going to be very helpful!   I have noted the mix ups,  so 10 should be 190Nm and 7 should be 30Nm correct?    Again many thanks

Yes.

Any idea what the torque is for wheel bolts,  I've done them to 125Nm

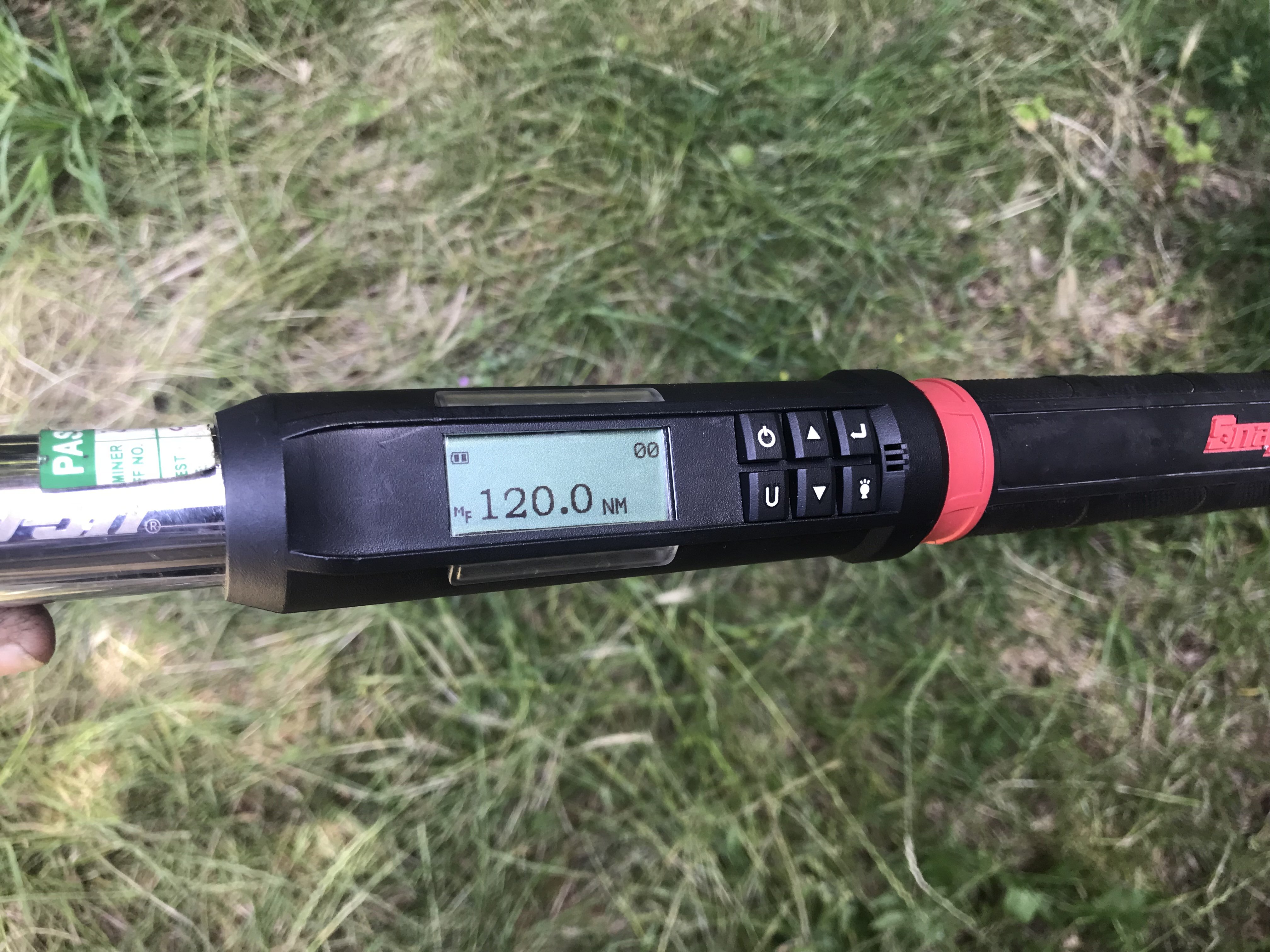

120 Nm

Hi 3T51704x4,  many thanks I'll readjust.

29 minutes ago, POUCH said:

Hi 3T51704x4,  many thanks I'll readjust.



I don't think you need to worry about +5 Nm. Most over the counter torque wrenches aren't calibrated that accurately anyhow.

4 hours ago, Tech1e said:



I don't think you need to worry about +5 Nm. Most over the counter torque wrenches aren't calibrated that accurately anyhow.

I agree, don’t bother readjusting. Unless your wrench is calibrated, near enough is good enough.

At least they won’t come undone.

It will be closer than a tyre centre would get winding them on with a gun 😉.

Unless of course you do have a calibrated wrench.

Edited 23 July, 20196 yr by 3T51704x4

I've got the same torque wrench. Makes torque and angle a doddle.

Thanks everyone,  very posh torque wrench!   What make and how much??

It’s Snap On and no need for something like that for hobby use.

You can get a good torque wrench for a fraction of the cost.

But when changing lots of 1.6 CAYC/D CR piezo injectors requiring accurate torque angle, they save so much time.

The injector retaining bolt is a one shot pony, they do let go if you don’t change it leaving a nice dent in the bonnet.

23 minutes ago, 3T51704x4 said:

It’s Snap On and no need for something like that for hobby use.

You can get a good torque wrench for a fraction of the cost.

But when changing lots of 1.6 CAYC/D CR piezo injectors requiring accurate torque angle, they save so much time.

The injector retaining bolt is a one shot pony, they do let go if you don’t change it leaving a nice dent in the bonnet.



I got mine for doing L405 Range Rover sub frame bolts, that's a brown trousers moment.

Hi everyone  I replaced the discs and pads on my Superb but found that it took longer than I thought,  but I put part of that down my age (70) and also the hot weather.  Because of the length of my torque wrench, I found it easier to have the steering on full lock for each side to accommodate it and get the leverage required.  I used Comma copper grease where needed but found that its not like the stuff of my youth.    Again many thanks too all those who gave advise etc.

My solution to the awkward access was to use the trolley jack on the end of a standard length ratchet handle. A bit crude but effective for that application.

I'm looking for an adjustable torque wrench, can't justify Snap-On or Facom prices though, any recommendations?

1 hour ago, silver1011 said:

I'm looking for an adjustable torque wrench, can't justify Snap-On or Facom prices though, any recommendations?

These would be good value:

get the correct working range for your needs.

You will need the 1/2 inch drive one for wheel bolts and calliper bolts as 3/8 won’t go high enough.



https://www.toolstation.com/draper-torque-wrench/p87089?store=O6&utm_source=googleshopping&utm_medium=feed&utm_campaign=googleshoppingfeed&gclid=EAIaIQobChMI_9iexqnQ4wIVGODtCh0ZMALbEAQYByABEgLk1vD_BwE

Hi silver 1011.  I would be inclined to take a look on Amazon or Ebay, the other place to look is Machine Mart.  Depends on what you want to pay and how often you will use it.  I bought mine from LIDL years ago,  quite happy with it.

The one that 3T51704x4 has shown is similar to mine so should do most jobs with ease.

Halfords do some good deals sometimes. Their torque wrenches are re labelled Sykes Pickavant Mortorq ones which are very good quality.
