EnterName

I asked AI to have a look into DQ381 failures and try and find some patterns of root cause of failures. Here's what it came back with. It might be a useful resource, or something people already know, but if nothing else, it's a lot of potentially useful info in one place on the DQ381. Detailed Survey Note: Comprehensive Analysis of DQ381 DSG Gearbox Failures The Volkswagen/Audi DQ381 Direct-Shift Gearbox (DSG), a 7-speed wet-clutch dual-clutch transmission introduced in 2017, is designed for efficiency and performance, fitted in vehicles such as the Volkswagen Tiguan, Golf, Audi A3, Skoda Superb, and Seat Ateca. While it represents an improvement over earlier DSG models like the DQ250 and DQ200, it is not immune to reliability issues. This report synthesises findings from technical reports, user forums, and repair services to identify common root causes of failure, patterns, and preventive measures, providing a thorough understanding for owners and technicians. Background and Context The DQ381 is part of Volkswagen Group’s MQB platform, offering a smaller, lighter design compared to the DQ500, improving fuel consumption and reducing CO2 emissions. It is rated for up to 420 Nm of torque, making it suitable for front- and all-wheel-drive vehicles. However, its complexity, particularly in the mechatronic unit and hydraulic systems, has led to reported failures, often discussed in automotive forums and repair service websites like ECU Testing and Autotronics. Common Root Causes of Failure The following table summarises the primary failure causes, symptoms, and associated fault codes, based on analysis of repair data and user reports: Failure Cause Symptoms Fault Codes (Examples) Prevalence Mechatronic Unit Failure Intermittent loss of gears, limp mode, missing odd/even gears, jerky shifts P173500, P173600 (clutch position sensor faults) Most common, especially in Tiguans Hydraulic Pump Issues Delayed shifts, gearbox errors, complete failure P0C2900 (faulty pump, recall-related) Linked to 2017–2019 production Clutch Pack Wear Juddering, slipping, harsh shifts, reduced power delivery None specific, often diagnosed via symptoms High-mileage or heavy-use vehicles Transmission Fluid Issues Rough shifting, overheating, gear slippage None specific, fluid analysis required Common with neglected maintenance Software and Calibration Issues Erratic shifts, lag, communication errors U0101 (loss of TCU communication) Often post-update or in tuned cars 1. Mechatronic Unit Failure The mechatronic unit, integrating the TCU, sensors, solenoids, and hydraulic valves, is the Achilles’ heel of the DQ381. It manages gear selection and clutch operation, and its failure is extensively documented, particularly in Volkswagen Tiguan models (2016–2020). Symptoms include: Intermittent or complete loss of gears, often missing odd gears (1st, 3rd, 5th, 7th). Vehicle entering limp mode, restricting performance to protect the transmission. Jerky gear changes or inability to select gears, especially after long drives or in hot conditions. Root causes include: Manufacturing Defects: Despite improvements, the unit can have weak soldering, substandard electronics, or design flaws, leading to intermittent failures. Solenoid Failures: Solenoids controlling hydraulic fluid flow can stick or fail due to contamination or electrical faults. Sensor Malfunctions: Faulty clutch position or pressure sensors (e.g., P173500, P173600) send incorrect signals, disrupting shifts. Wiring Issues: Internal wiring faults, often exacerbated by heat or fluid contamination, cause communication errors. Repair services like ECU Testing offer rebuilds with higher-rated components, suggesting a pattern of thermal stress and wear-related degradation, particularly after 50,000–100,000 miles. 2. Hydraulic Pump Issues A significant recall (34K1 for VW, 34L4 for Audi) addressed a production flaw in the auxiliary hydraulic pump, affecting certain 2017–2019 units. This pump is critical for maintaining hydraulic pressure for clutch engagement and gear shifts. Symptoms include: Delayed or harsh shifts, especially in lower gears (1st–3rd). Gearbox error messages, with fault code P0C2900 indicating a faulty pump. Complete transmission failure if debris from a failed pump damages internal components. User reports on platforms like Reddit (DQ381 Carnage) highlight cases where missing bolts for the pump led to catastrophic damage, requiring full gearbox replacement. The recall offers free repairs if addressed timely, but delays or aftermarket tuning can complicate coverage, adding controversy around warranty policies. 3. Clutch Pack Wear The DQ381’s wet clutches are generally more durable than dry clutches (e.g., DQ200), but wear can occur under stress. Symptoms include: Juddering or slipping during acceleration, particularly noticeable in performance models like Golf R or Audi S3. Harsh or delayed shifts, especially in lower gears. Root causes include: Normal Wear and Tear: Friction over time, especially in high-torque applications (up to 420 Nm), accelerates wear in tuned vehicles or those used for towing. Inadequate Lubrication: Contaminated or degraded transmission fluid increases friction, hastening clutch wear. Improper Calibration: Software issues or failure to adapt the TCU after maintenance can cause excessive slipping, leading to premature wear. This issue is less frequent but more common in high-mileage vehicles (>80,000 miles) or those subjected to heavy use, as noted in Honest John’s DSG guide. 4. Transmission Fluid Contamination or Low Levels The DQ381 relies on clean, high-quality transmission fluid for lubrication, heat dissipation, and hydraulic pressure. Symptoms include: Rough or delayed shifting, often felt as jerky movements. Overheating, indicated by a burning smell or dark/burnt fluid. Gear slippage, reducing performance. Root causes include: Fluid Degradation: Over time, fluid breaks down, losing lubricating properties and accumulating contaminants like metal particles. Leaks: Leaks from the transmission pan, filter housing, or oil cooler reduce fluid levels, leading to insufficient pressure. Maintenance Neglect: Skipping recommended fluid changes (every 40,000 miles for most models, 80,000 for newer units) accelerates wear across components. Fluid issues are often secondary, contributing to mechatronic, clutch, or pump failures, and are more prevalent in vehicles with incomplete service histories, as discussed in repair forums. 5. Software and Calibration Issues The DQ381’s TCU software controls shifting strategies and clutch engagement, and glitches can mimic hardware failures. Symptoms include: Erratic or harsh shifting, especially after software updates. Delayed acceleration or lag during gear changes. Fault codes like U0101, indicating loss of TCU communication. Root causes include: Software Bugs: Updates, such as those for the hydraulic pump recall, have sometimes caused harsher shifts, as reported by users. Tuning Conflicts: Aftermarket tuning for increased engine power can exceed torque limits, disrupting calibration and leading to shifting issues. Improper Adaptation: After repairs or fluid changes, failing to recalibrate the TCU can cause rough shifts or clutch slippage. These issues are less common but significant in tuned vehicles or post-update scenarios, highlighting the need for careful calibration management, as noted in ImmoTools Cyprus. Patterns of Failure Analysis reveals several trends: Mechatronic Dominance: Mechatronic failures are the most frequent, often linked to manufacturing defects and thermal stress, particularly in early production units. Mileage and Usage: Failures peak between 50,000 and 100,000 miles, especially in high-torque or performance models, with heavy use (e.g., towing, stop-start traffic) exacerbating issues. Maintenance Sensitivity: Neglecting fluid changes significantly increases failure risk, with regular maintenance (every 40,000–60,000 miles) critical for longevity. Recall Impact: The hydraulic pump recall affects 2017–2019 units, suggesting quality control issues in early production, with user reports confirming higher failure rates in these batches. Environmental Factors: Hot climates and heavy loads increase failure rates, as heat accelerates fluid degradation and component stress. Preventive Measures and Recommendations To mitigate these issues, owners should: Follow Maintenance Schedules: Change transmission fluid and filters every 40,000–60,000 miles, using OEM-specified fluid to ensure compatibility. Prompt Diagnostics: Address warning signs like fault codes or rough shifting immediately, using dealer-level tools for accurate diagnosis. Software Updates: Ensure TCU software is up to date, but verify with dealers about potential side effects, especially post-recall updates. Driving Habits: Avoid aggressive driving or prolonged low-speed operation in high gears, which stresses clutches and fluid. For tuned vehicles, optimize gearbox software for increased torque. Repair Options: For mechatronic failures, consider rebuild services from specialists like ECU Testing or Autotronics, which offer upgraded components and lifetime warranties, often at lower costs than OEM replacements. Conclusion The Volkswagen/Audi DQ381 DSG gearbox’s common failure causes include mechatronic unit defects, hydraulic pump issues (especially in recalled 2017–2019 units), clutch wear, fluid contamination, and software glitches. Mechatronic failures dominate, often linked to manufacturing defects, while maintenance neglect amplifies risks. Patterns suggest higher failure rates in early production, high-mileage, or heavily used vehicles. With proper care—regular fluid changes, prompt diagnostics, and cautious driving—the DQ381 can be reliable, and rebuilt components offer cost-effective repair solutions. Key Citations ECU Testing DQ381 Mechatronic Causing Tiguan DSG Gearbox Problems Reddit DQ381 Carnage Discussion on Hydraulic Pump Recall Honest John Guide to DSG Gearbox Problems and Repairs ImmoTools Cyprus DQ381 Mechatronic Failure Analysis Autotronics DQ381 Mechatronic Rebuild Service for Tiguan

Where the 45K miles figure came from is beyond my Ken (😄), but he was sure that the correct interval was 45K and not 80K, though I have seen the 80K figure repeatedly quoted from official sources. Like I said, I'm just passing on what I was told. As I got mine serviced at under 26K, it's a moot point from my perspective. I don't know what the implications of switching between N & D on the Mechatronic are. Maybe it causes wear, maybe it's a good thing to exercise the mechatronic in that way. I genuinely don't know. 🤷‍♂️ Certainly Ken didn't advise me to do anything differently. Do you (or anyone) have an explanation for how switching between N & D might cause wear on the Mechatronic? I'm not going to use the stop/start function as (rightly or wrongly) it bothers me. IIRC, what I thought was the official service regime as at 80K miles or 8 years, whichever occurred first. 6 years is a bit previous, but as not all the oil is removed, I'm comfortable with what I've done. As soon as I got home, I mentally kicked myself for not making a note of the oil used by Ken. I might give him a buzz before too long and ask him, though he might have disappeared into Kenspace and be unavailable. TBH, it bothered me a little that the new oil looked darker than the oil coming out of the gearbox, but we shall see how I get on. My DSG behaves identically after the service to how it did before; i.e. impeccably. As for being serviced in accordance with the requirements of the manufacturer's warranty, IIRC VAG don't think the DSG oil filter needs replacing, so I'm not sure VAG service schedules/guidelines are infallible, though I agree it's important to keep your warranty valid if you have one. I've just had a look at my dash-cam footage to see if I could catch a glimpse of the bulk oil container Ken used for the replacement oil, but no luck. Bah!

I had my DQ381 serviced at 6 years and 25400 miles. My gearbox was serviced by Transmission Technology (UK) Ltd. Ken, who runs TTUK, has over 50 years experience working on gearboxes and was a very interesting and knowledgeable gent to talk to. The cost of my DSG service was £177.36 DSG Oil: £63.00 Filter: £24.80 Labour: £60.00 VAT: £29.56 Having watched Ken perform the service, it appears very DIY-able, if you fancy tackling it, though I'll mention my local VAG specialist told me to go to Transmission Technology when I enquired about a DSG service there. Having watched the service being done, this seems slightly surprising, though it may be that there's more to the DSG service than meets my eye. The process was mostly as the videos show, and was as follows as I watched it: 1) Remove DSG filter housing and filter. (This was the most awkward part of the job as the filter housing was difficult to remove. Access was from under bonnet above engine.) The filter was clear of debris, as far as I could see. (See pic. The replacement filter was a plain white filter. ) 2) Clean filter housing interior. 3) Fit new filter & replace housing. 4) Raise car to allow access underneath. 5) Remove level plug from DSG level aperture. 6) Remove drain plug from DSG and let oil drain. As I watched it drain, the old oil was light-gold in colour and appeared very clean, whereas the replacement oil was slightly darker. (I questioned this and was assured it is normal.) 7) Replace drain plug. 8) Attach replacement oil pump kit. 9) Start engine, and with engine idling, pump new oil into gearbox. 10) When correct quantity of oil has been pumped in, remove pump kit and, allowing oil to drain from level aperture to correct level, replace level plug. Note: I suspect this is where you will need some expertise in judging precisely how much oil is in the gearbox, and it is quite possible that there is more to it than simply letting the oil drain until it no longer comes out of the level hole. For a simple oil change on a DQ381, Ken told me you don't need to worry about checking oil temperatures, that is only needed when the gearbox has been disassembled in some way, where oil may not have reached all the nooks and crannies in the system and greater care is needed to ensure that there is the correct amount of oil in the gearbox. Additionally, Ken told me that the recommended service interval on a DQ381 is 45K miles, not 80K. If you disagree with that, I suggest you argue it out with Ken, I'm just reporting what he told me. Incidentally, I asked Ken about my practice of always putting the gearbox into idle at junctions, as I could feel that the clutch is not completely disengaged when in drive with the brake pressed. He confirmed that the clutch is indeed NOT disengaged when the car is in Drive with the brake pressed. He added that it wasn't a problem to leave the car in Drive with the footbrake on for short periods, but for traffic jams, putting it in Neutral was recommended. He also said that putting the DSG into Neutral at every junction would extend the life of the clutch pack. (Which I had already worked out, but it's nice to have an expert confirm it.) Judging by his experience, Ken is pretty much peerless (certainly around my area) when it comes to transmission work, and is able to resolve just about any gearbox issue on any vehicle. He does full gearbox rebuilds, sorts out mechatronic issues and will take on gearbox repair jobs that other garages will insist can only be solved with a new gearbox. The phrase, "What he doesn't know about gearboxes isn't worth knowing.", springs to mind. He talked about how much time he spends keeping himself up to date on gearbox tech and he's a man who has clearly devoted his life to vehicle transmissions. Downsides? For the patient person, none. However, Ken has been working since the 60's, and sometimes he can be hard to get hold of. My first appointment with him didn't happen because he took the day off for personal reasons. (When I got there at the agreed time, the place was shut and there was no way to get hold of him.) I turned up on spec on another random weekday, just to meet the guy and size him up after the first failed appointment, and again the place was shut, despite it being during normal working hours. Still third time lucky, though I did make sure to phone him up before setting off. 😄 I laugh, but it wasn't a good start, and had Transmission Technology not been recommended by my trusted garage, I'd have been tempted to go elsewhere for my DSG service because I don't like unreliable people. I note the reviews of Transmission Technology are a mix of delighted customers (the majority) and people who failed to get hold of him (a very grumpy minority, which I nearly joined). Ken's an elderly gent who he has skills that can't easily be found elsewhere. I suspect he's got to that stage in life where he works as and when he wants to, rather than because he has to. If you have a gearbox problem, if no one else can help, and if you can find him, maybe you can hire Ken.

£16K for a 7 year-old car seems like quite a lot to me. How old is your current car? Look at the cost to change. It's your money, and if it seems a good deal to you and you really like the car, then the opinions of other people don't really matter. Bear in mind VAG cars need careful servicing and TLC. If you look after them and anticipate and employ preventative maintenance, they're great. If you just get them serviced once a year/every 10K, you may find they can surprise you with some unexpected failures that you could have prevented by getting to know the expected failure points of the car and heading off the problem.

That's good. Make sure that they solve the problem, not just replace bits. I'm thinking of that window judder.

As someone who's not a far-left nutter or a Tesla owner, this has been enormously entertaining, but I do have sympathy for Tesla owners who have fallen foul of the NPC's latest update. The same people doing everything they can to get people to drive EVs to save the planet from pollution, have been fire-bombing Tesla dealerships because Elon Musk stopped them appropriating US taxpayer money for nefarious purposes. 😄 Typically, their handlers have not criticised them. (It was the same with the BLM violence.)

Well this is a red flag. "I'll look into it." is a tried and tested way of fobbing off awkward questions until the buying decision is irreversible. If possible I would stall the buying process and when the dealer contacts you to proceed, tell them you are looking into buying the car. Their response to your "I'm looking into it." should guide how you respond to their "I'm looking into it.". And yes, for some reasons Octavia lights do seem prone to water ingress on rear lights. I had the problem on my car, a 2019 MK3.5.

Has it had a new turbo? Petrol turbos last well if serviced correctly, but you're getting into the mileage territory where a turbo failure would not be unexpected. I'm guessing you also have a GPF (the petrol equivalent of a DPF) on that vehicle. I don't know how long they last or what happens if they fail or how much they cost to sort out if they fail. Early failure is usually caused by damage from another failure, AFAIK. If it runs smoothly, drives well, and the price is right, then you might have a bargain. A lot of the things that could be expected to go wrong or wear out will likely have been repaired/replaced. 193Km in 7 years is quite a reliability endorsement in itself.

Not sure how using a "trusted indie" means you go to VAG when you need something important doing. Revealed preference is always more accurate than expressed preference. By all means go to VAG, but you might like to revisit your thoughts on whether you trust the indie you use. For the record, my trusted indie told me to go to a gearbox specialist for my Octavia's DQ381 service.

I think you need to pick your engine, gearbox and body combination before trying to get too specific on common faults. They each have strengths, features and issues peculiar to them. One issue common across the range of the MK3, is the silica bag in the coolant reservoir that can split and cause issues requiring a difficult and expensive cleaning process.

A good rule of thumb is not to let a "could" be leveraged into a £1500 bill that doesn't fix the problem. This, a 1000 times this. ☝ You cannot solve a problem you do not fully understand. But you can milk an unwary customer of a lot of money by iteratively trying to fix a problem you don't understand. As George says, get a proper diagnosis of the problem.

Perhaps if you had the honesty to actually quote me rather than paraphrase me you might get a more considered response?

Gibberish.

If you're going to quote me, quote me.

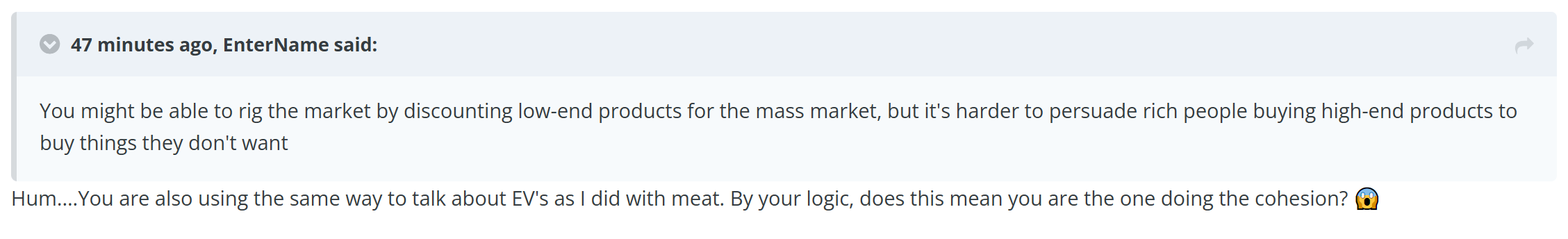

It sounds like you're trying suggest that Aston Martin is making strategic changes away from EVs for ideological and not business reasons. Is that what you're suggesting? No, clearly I wasn't talking about the rich. I was talking about affluent white liberals virtue-signalling their superiority over the rest of us with luxury beliefs that they can comfortably afford and aren't negatively impacted by. Huh? What I actually said: I do not see the point you are trying to make. If you have a point, make it clearly.

Aston Martin’s EV rethink reflects luxury market preferences. A significant shift is underway at Aston Martin as the luxury carmaker pumps the brakes on its electric vehicle ambitions. Citing concerns that fully electric cars are “too extreme a step” for many of its affluent customers, Aston Martin is delaying the launch of its first battery-powered vehicle for the second time. https://uk.investing.com/news/stock-market-news/what-the-wealthy-want-aston-martins-ev-rethink-reflects-luxury-market-preferences-3947300 Not everyone is easily manipulated. You might be able to rig the market by discounting low-end products for the mass market, but it's harder to persuade rich people buying high-end products to buy things they don't want by knocking a few grand off them, or raising taxes on the products they do want.

Or buy another cover and protect both.

My brake disks get rusty after I wash the car. It's wild how quickly rust shows up on them.

Try leaving it in "Sport" mode for a while, see if that improves the experience.

Do you have a name for it?

Amen to this. When I briefly had a problem with my dashcam, it felt like driving around without insurance. In the West Midlands, dashcams are absolutely essential. Even if it's the cheapest, crappiest dashcam you can find, it's still better than nothing. https://www.amazon.co.uk/DashCam-Diamond-170°Wide-Recording-G-sensor-Black/dp/B0BLH9LX4P

You are absolutely right. Some expert intervention is required immediately or you could/WILL damage your battery and possibly some other electrical components that were not expecting to find themselves handling over 20v.

Hmmm. That does not sound very convincing. I wonder what the issue with sparks is?

I've been trying to find evidence of an improved additive pack in Sainsbury's Super Unleaded, but I've never seen any to confirm this. Sainsbury's don't make any claims for it, which IMO is either Sainsbury's missing a trick or keeping their mouth shut on a deficiency. Tesco Momentum has an excellent reputation, so I'm not sure why Sainsbury's wouldn't want to promote their fuel if it was in some way outstanding.

I searched online for Marshmello as I'd never heard of them. https://www.marshmallow.com/insurance-for-expats?gad_source=1 They claim to be cheap, but £1300 doesn't sound cheap. What's your driving history & claims record like? I suppose as Tilt suggests, you might be one of the few under-50's actively posting on Briskoda. 😄
