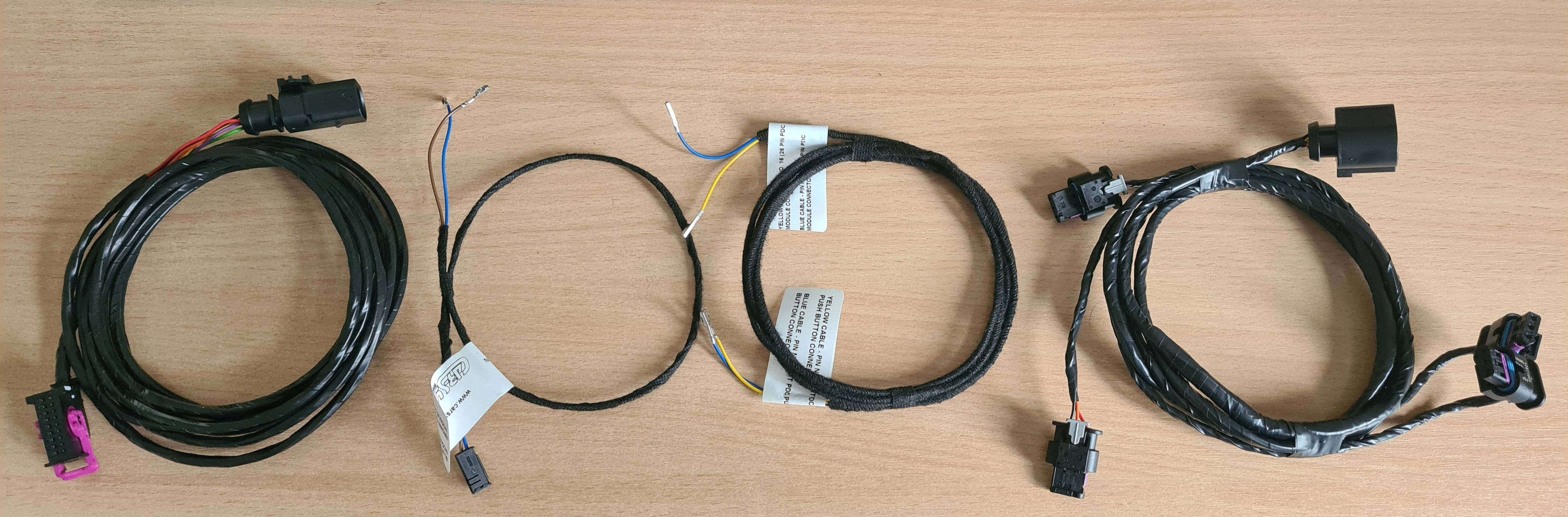

Well received complete wire harness from CarSystems today   I must say topnotch quality!!!!!



Other items received are the dashboard switch, sensor washers and parking module.



waiting on 4 x sensors and 4 x holders and then it's operation time

Edited 28 September, 20205 yr by singh946

@wirer is the parking module under the passenger side? best to remove glove box?

In Europe (left hand driving) on driver side



https://wirer.sk/wp-content/gallery/f3_pdc_predne-dp/PDC-jednotka.jpg

21 minutes ago, wirer said:

In Europe (left hand driving) on driver side



https://wirer.sk/wp-content/gallery/f3_pdc_predne-dp/PDC-jednotka.jpg



Thanks mate  I will check in evening may be in same place for Right hand drive?

I have only gone and ordered the wrong PDC switch :(



Mine is the UK RHD so needs 6V2927238E instead of the 6V1927238E

Oh bother, if you ordered it in new from your local Skoda dealership, they will normally take it back and charge a handling charge and order in the correct one.



I know this because I got my local VW parts place to order me in a pair of TREs for my wife's 2002 Polo back in 2006/7 - they trusted me as I normally just handed them part numbers as opposed to asking for a "y" for a 2002 Polo, unfortunately, I had picked the section in the parts listing for Polo without power steering - I never made that mistake again, lesson learned!

3 hours ago, rum4mo said:

Oh bother, if you ordered it in new from your local Skoda dealership, they will normally take it back and charge a handling charge and order in the correct one.



I know this because I got my local VW parts place to order me in a pair of TREs for my wife's 2002 Polo back in 2006/7 - they trusted me as I normally just handed them part numbers as opposed to asking for a "y" for a 2002 Polo, unfortunately, I had picked the section in the parts listing for Polo without power steering - I never made that mistake again, lesson learned!



All sorted now, I got it from Ebay and the seller has excepted return however I had to take plunge on the postage :(



Anyways correct part ordered so lets hope it goes according to plan.

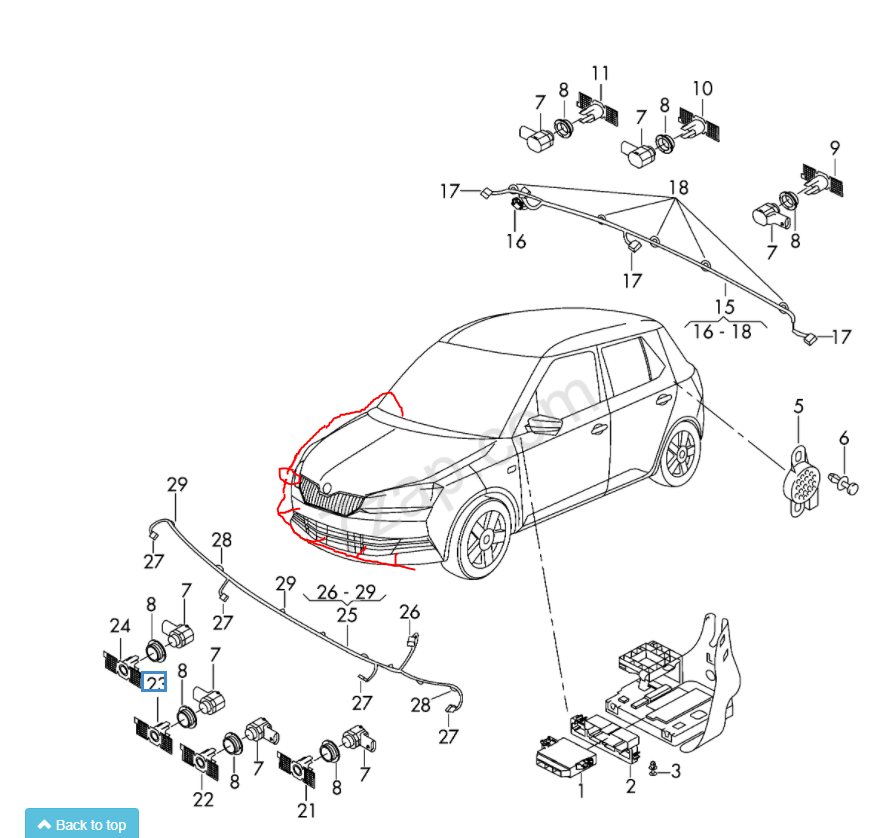

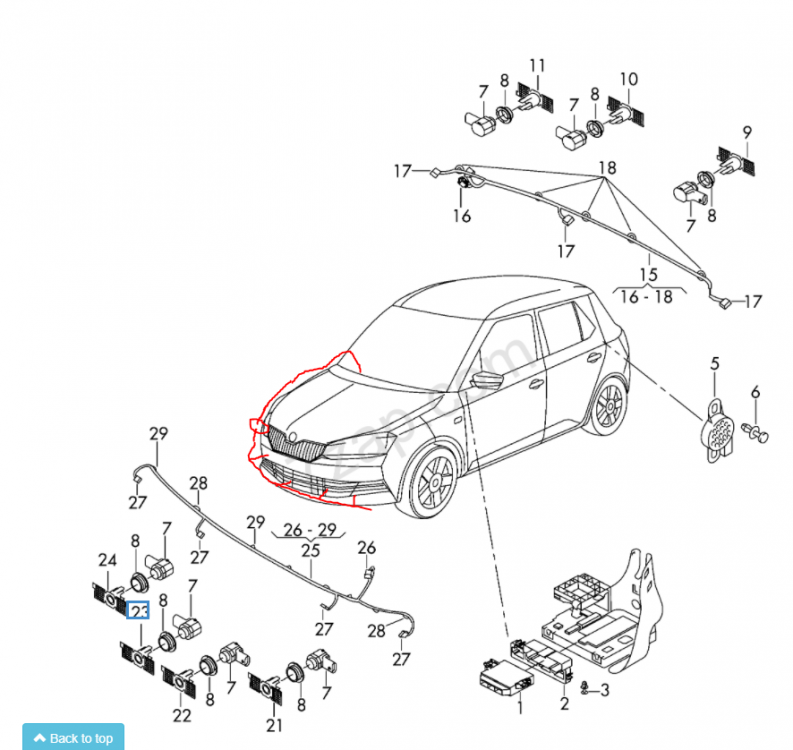

@singh946 on driver side too. no5







5 minutes ago, wirer said:

@singh946 on driver side too. no5









Can you send link to it @wirer please? What is No5?

no5 is parking module, control unit front (rear) PDC. on right hand drive you have it on driver side between steering wheel and door

33 minutes ago, wirer said:

no5 is parking module, control unit front (rear) PDC. on right hand drive you have it on driver side between steering wheel and door



Oh yes I found it yesterday  I removed Air Vent and got good access to the module

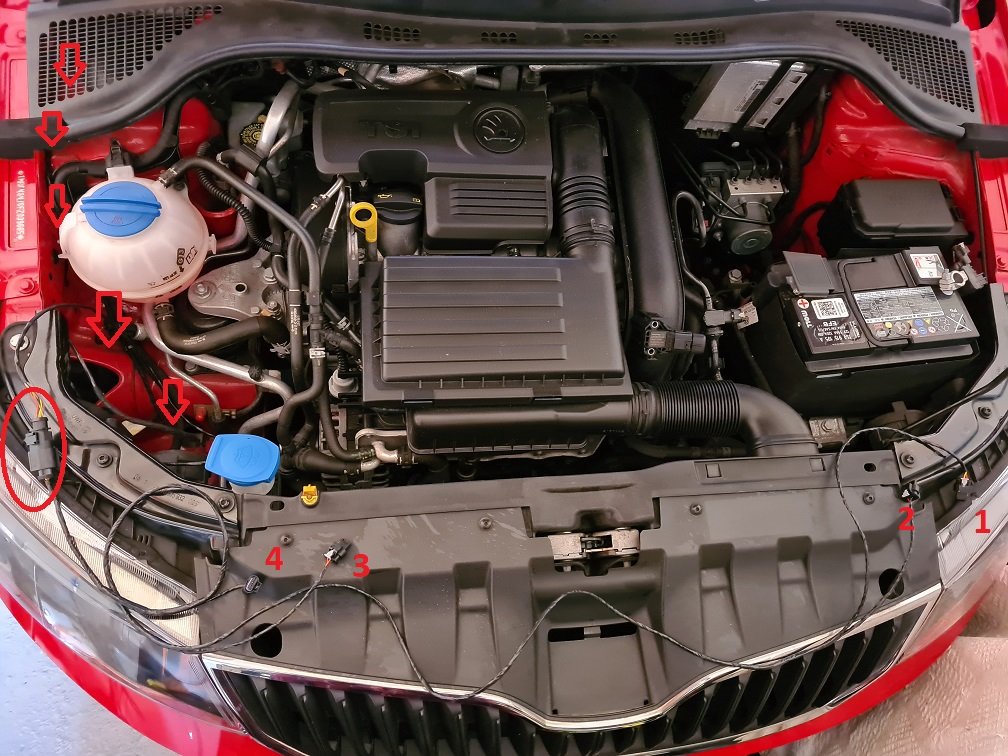

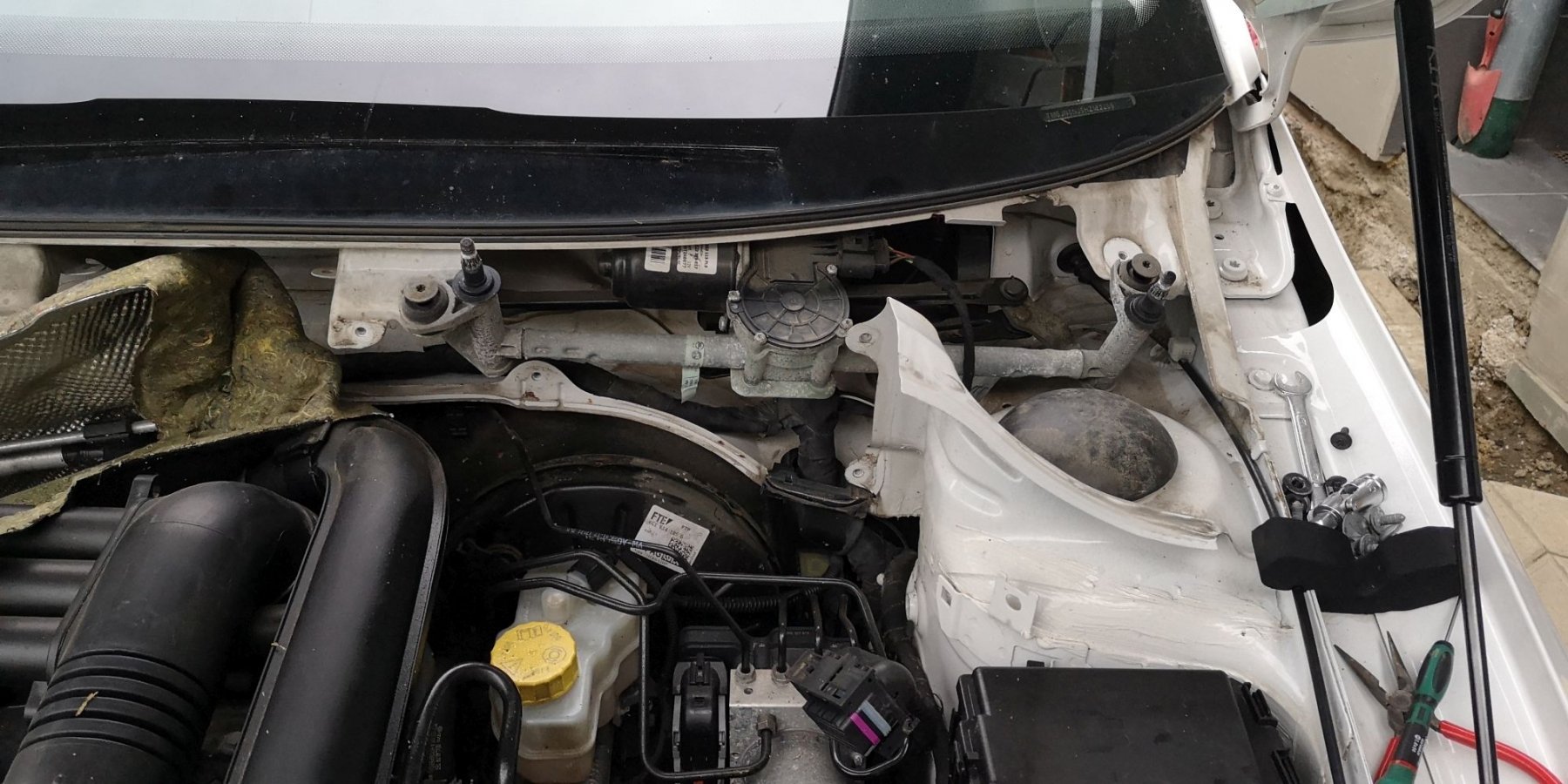

@wirer Since my car is RHD and my harness runs on the driver side to the engine compartment as shown in the picture will I need to connect it to the sensor harness from the passenger side?
In your tutorial you connect from passenger side.

Edited 30 September, 20205 yr by singh946

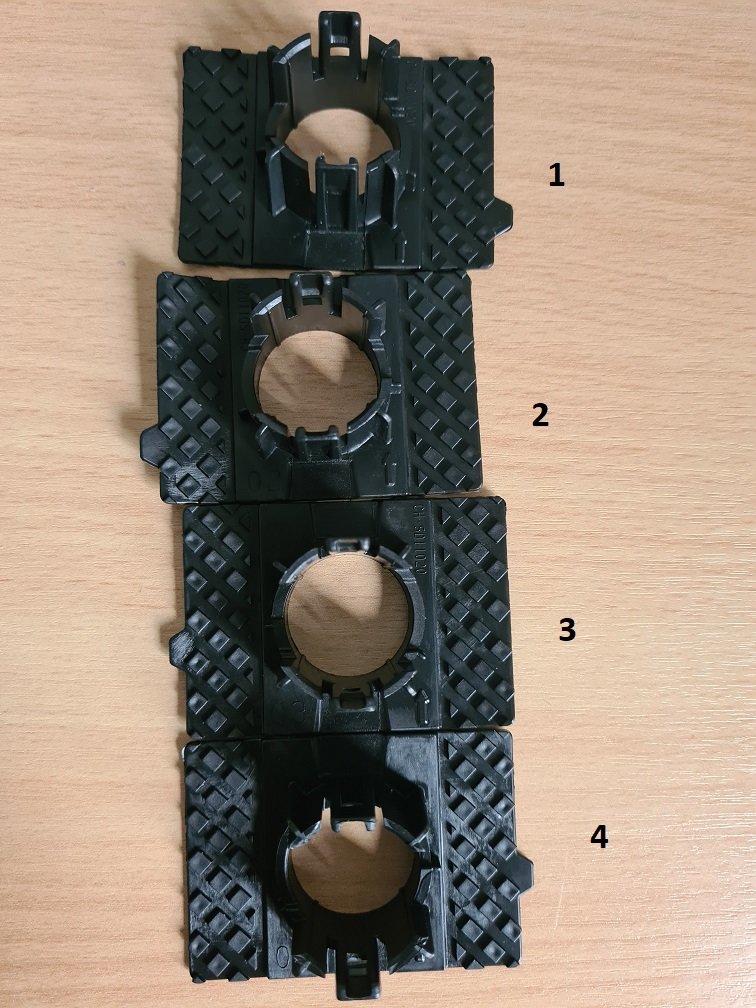

I received my sensor holders from AutoDoc today and they are aftermarket ones. However apart from being labeled 1,2,3,4 I am not sure which way they are meant to on the bumper?

@wirer can you help please?

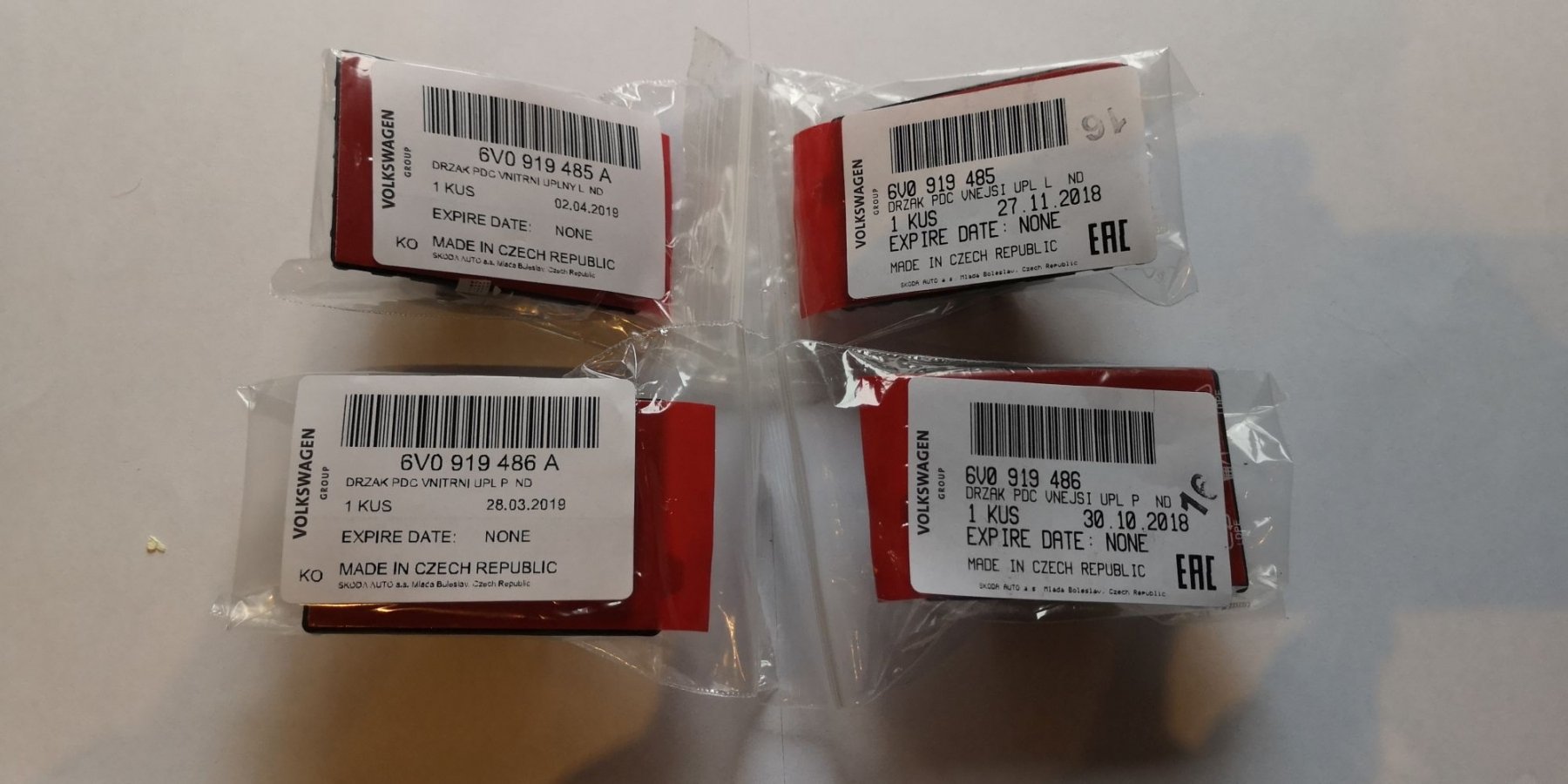

Holder must have part number:

6V0 919 485 – left out

6V0 919 485 A – left in

6V0 919 486 A – right in

6V0 919 486 – right out





The right / left side is determined in the direction of travel



I have left-hand drive and I have cables on the left side



Cables for the engine compartment should be stored on the driver's side - where there is also a wiper motor



26 minutes ago, wirer said:

Holder must have part number:

6V0 919 485 – left out

6V0 919 485 A – left in

6V0 919 486 A – right in

6V0 919 486 – right out





Mine don't have part numbers unfortunately.



OK so is this layout correct? Are sensors 4,3,2,1 layout correct?





Plug in, code and test. If, on the other hand, you only swap the pin in the control unit connector. I never hooked up an English car.

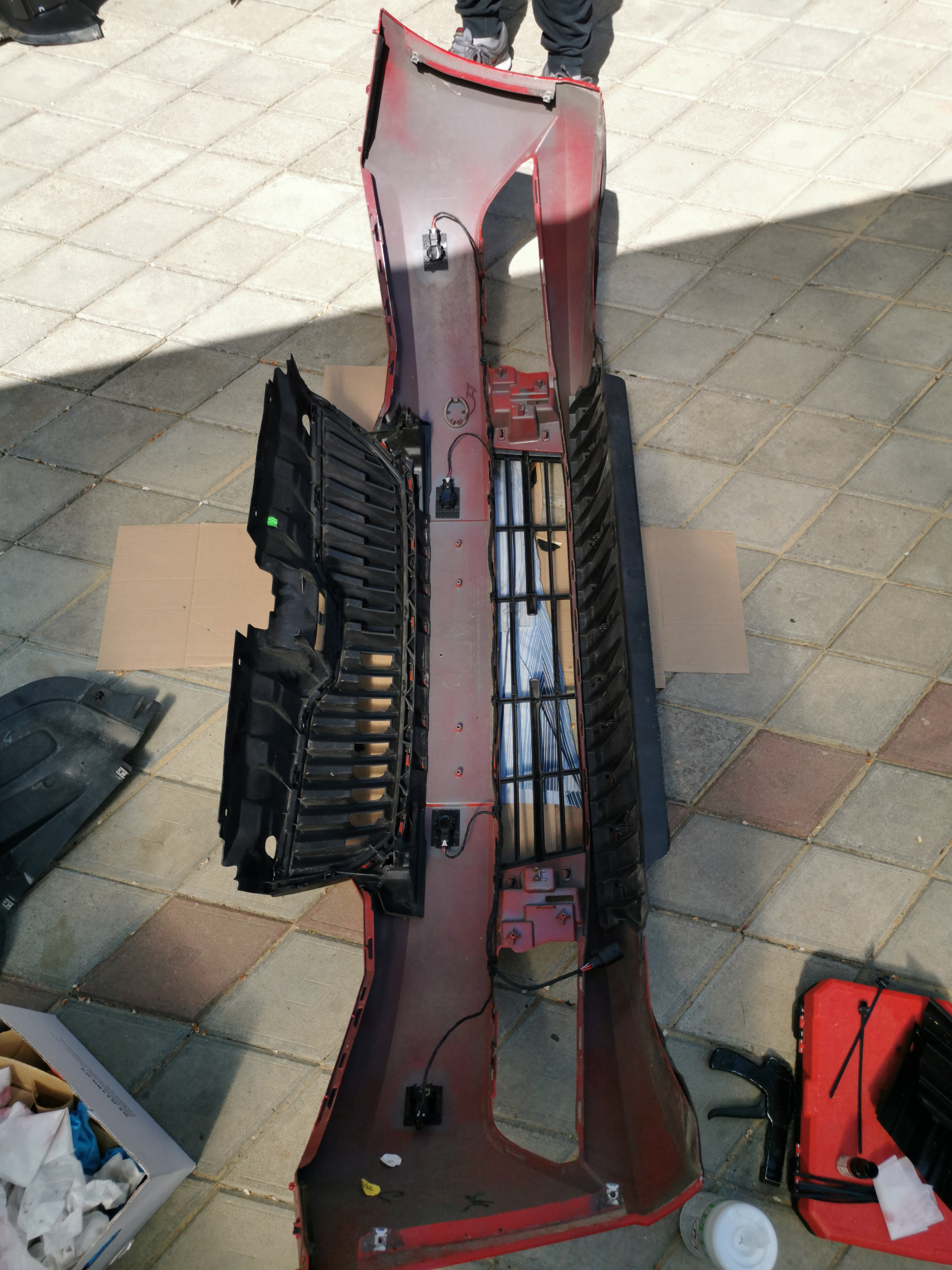

Holders for sensors according to the photo. Each holder has a different "cutout". The cut-outs also show the cut-outs and turn the parking sensors according to the photo.





Btw, if only the original holders, at least in small print they should be marked

Thanks @wirer for the help  I will be working on the bumper this evening so yes by testing I should be able to find out.

I am still waiting on switch so hopefully be able to test the front parking sensors?





I didn't try it without buttons. I still had them involved

57 minutes ago, wirer said:

I didn't try it without buttons. I still had them involved

I think if I put the car in reverse the front should be activated



I will let you know my findings



@wirer Ok did a dummy fit of the front sensors and hooked up VCDS and copied the coding as mentioned in Tutorial.



The infotainment display for the parking has disappeared :( getting following errors:



Error in Park / Steer Assist

Address 10: Park/Steer Assist       Labels: 5Q0-919-294.clb
Control Module Part Number: 5Q0 919 294 E    HW: 5Q0 919 294 A
  Component and/or Version: PARKHILFE 8K  H03 0048
           Software Coding: 0031055041
            Work Shop Code: WSC 01357 011 00200
              ASAM Dataset: EV_EPHVA18AU3700000 002024 (VW26)
                       ROD: EV_EPHVA18AU3700000_VW26.rod
                      VCID: 3D273BFA1DF22843795-8068
2 Faults Found:

12658704 - Databus
          U1121 00 [009] - Missing Message
          [Steuergerät für elektrische Park-/Handbremse-J540 - EPB_01 - kein Signal/keine Kommunikation]
          Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 1
                    Reset counter: 39
                    Mileage: 41792 km
                    Date: 2020.09.25
                    Time: 01:11:15

13639168 - Databus
          U1121 00 [009] - Missing Message
          [Steuergerät für Rear Cross Traffic Alert - RCTA_01 - kein Signal / keine Kommunikation]
          Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 6
                    Fault Frequency: 1
                    Reset counter: 39
                    Mileage: 41792 km
                    Date: 2020.09.25
                    Time: 01:11:15

Infotainment Error



1 Fault Found:
1546 - Internal Control Module Memory Check Sum Error
          B2000 46 [009] - Calibration/parameter memory failure
          [Control module faulty: EEPROM error]
          Confirmed - Tested Since Memory Clear
             Freeze Frame:
                    Fault Status: 00000001
                    Fault Priority: 3
                    Fault Frequency: 1
                    Mileage: 31955 km
                    Date: 2019.04.10
                    Time: 13:28:27

                    Voltage terminal 30: 12.1 V



Ok just done a translate on the error message



[Steuergerät für elektrische Park-/Handbremse-J540 - EPB_01 - kein Signal/keine Kommunikation]



to


[Control unit for electric parking / handbrake-J540 - EPB_01 - no signal / no communication



Electric parking / handbrake?   My PDC module was from golf.



Edit......



[Steuergerät für Rear Cross Traffic Alert - RCTA_01 - kein Signal / keine Kommunikation]

to

[Control unit for Rear Cross Traffic Alert - RCTA_01 - no signal / no communication]

Edited 30 September, 20205 yr by singh946

Looks like module is working well with 3 sensors in rear



@wirer Looks like I need new DataSet for the module :( VCDS cannot do it. One guy local to me with ODIS charging £100 to reflash the module.



Should I look for a Skoda module? I found one on Ebay 5Q0919294K which is from a 2016 Fabia.

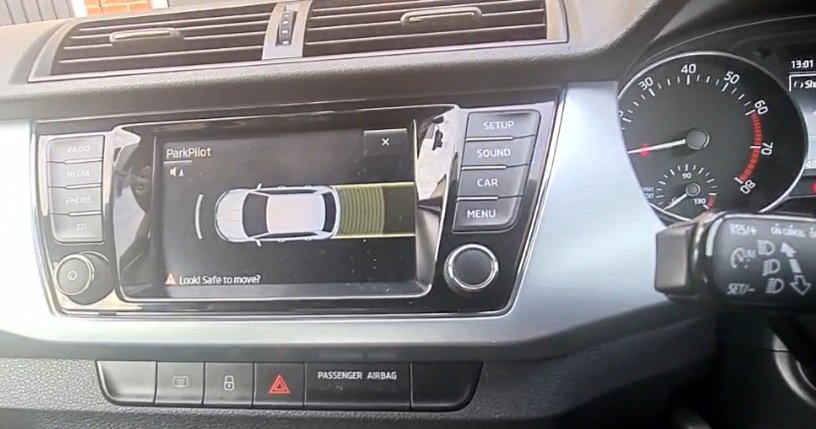

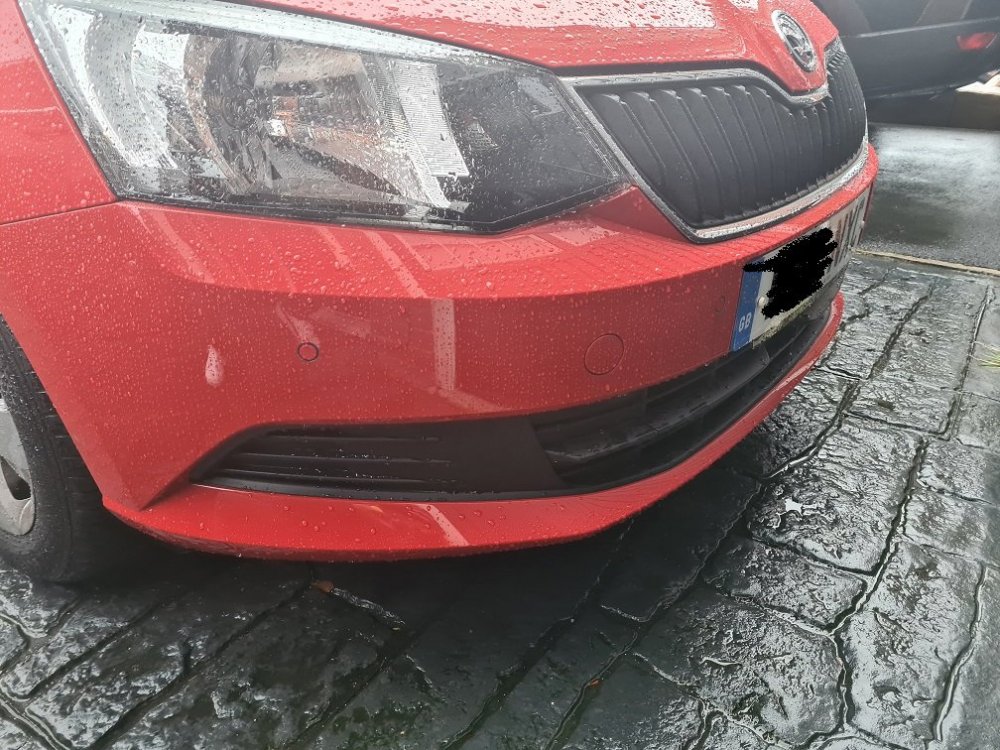

Well just to update, I finished installing the front sensors and put everything back together. The front sensors are working flawlessly as if it came standard from factory.



I got shocking quotation from local ODIS users here to reprogram my PDC module as it came from a 2015 Golf and it would require re-parameterising to Skoda i.e. new DataSet. VCDS unfortunately cannot do this and would require either VCP or ODIS. Think I am going to invest in VCP for future use.



Anyhow to save money on the build I have bought a 8K module which came from a 2016 Skoda Fabia so I am keeping my fingers crossed that it will work out of the box and if needed easily adapted with VCDS.



Will keep you all posted!!!!

Edited 5 October, 20205 yr by singh946

playing SW makes me familiar, but the price is definitely lower than yours. but it probably depends on each individual.

the front is connected correctly, otherwise it would also report an error at the front and display an exclamation mark (!)



you can only solve the error with the parking brake with another dataset



RTA - rear traffic allert is part of BSD - blind spot detect - blind spot sensor. I have added it too, instructions are on the web
