Well winter is here at last and due to the lack of a garage there will be no more cosmetic, mechanical or lighting mods for a while. So I have had this idea for a number of years now but due to the lack of availability and high price of the right hardware/software never had the chance to try it. Due to a recent purchase I am now in a position to give it a go.

Excuse the wobble but it was held by a diy car cradle

If/when I build it it will be fitted into the centre of the dash in its own pod trying to make it look as OEM as possible

Comment, criticisms and ideas welcome

Karl

Getting there

Updated Picture Read On

Edited 1 August, 201312 yr by korban

Will be interesting to see how this pans out.

I've toyed with the idea of doing something like this powered off my R-Pi. Only 'issues' would be GPS and data, but otherwise it could be something to look into so you can keep the tablet for home use still?

Nice potential! How much room is in the middle of the dash though, as obviously that looks to be totally different to a double DIN size.

Have done the Same with my Samsung Galaxy 8.9 Tablet and a cheap eBay tablet window mount

Im sure it goes without saying but i've had to replace a few windows the past two weeks due to two reasons!

1 being them smashed to nick radios and ipods etc, always an increase coming up to christmas.

2 being people defrosting cars in the morning and locking them in.

Funnily enough i replaced two fabia rear windows as the guys car locked with the keys in. He smashed the drivers rear window to remember after child locks were on... So then smashed the other side window!

So yeah on topic, dont leave them on display or your window might get smashed.

Ru going take bits off OEM cars (ie bmw's flip up cubby hole) or complete custom build? Have you connected torque via bluetooth or USB->OBDII?

Lastly, try Co-Pilot

Will be interesting to see how this pans out.

I've toyed with the idea of doing something like this powered off my R-Pi. Only 'issues' would be GPS and data, but otherwise it could be something to look into so you can keep the tablet for home use still?

Its a google Nexus which has built in GPS, as for data connects to my mobile via wifi when I get in the car

Nice potential! How much room is in the middle of the dash though, as obviously that looks to be totally different to a double DIN size.

Not trying to put it where the head unit goes Jason, hopefully just above the centre air vents

Have done the Same with my Samsung Galaxy 8.9 Tablet and a cheap eBay tablet window mount

Looking good, but I take it that you do not leave it there all the time ?

Im sure it goes without saying but i've had to replace a few windows the past two weeks due to two reasons!

1 being them smashed to nick radios and ipods etc, always an increase coming up to christmas.

2 being people defrosting cars in the morning and locking them in.

Funnily enough i replaced two fabia rear windows as the guys car locked with the keys in. He smashed the drivers rear window to remember after child locks were on... So then smashed the other side window!

So yeah on topic, dont leave them on display or your window might get smashed.

The idea is when finished it will look/be part of the dash

Ru going take bits off OEM cars (ie bmw's flip up cubby hole) or complete custom build? Have you connected torque via bluetooth or USB->OBDII?

Lastly, try Co-Pilot

Yes John looking around for OEM parts at the moment, but looks like it will be a custom build.

Torque via Bluetooth

Got Co-Pilot on my phone but thought I go back to TomTom on this one

Cheer

Karl

Excellent plan Karl. look forward to how this turns out :-)

Well after waiting for the parts that I ordered to turn up, I finally managed to find some time to get started on this new project

A second hand centre heater vent was first stripped down and some holes filled with plastic padding and a small tray was added to place the tablet on which ended up looking like this

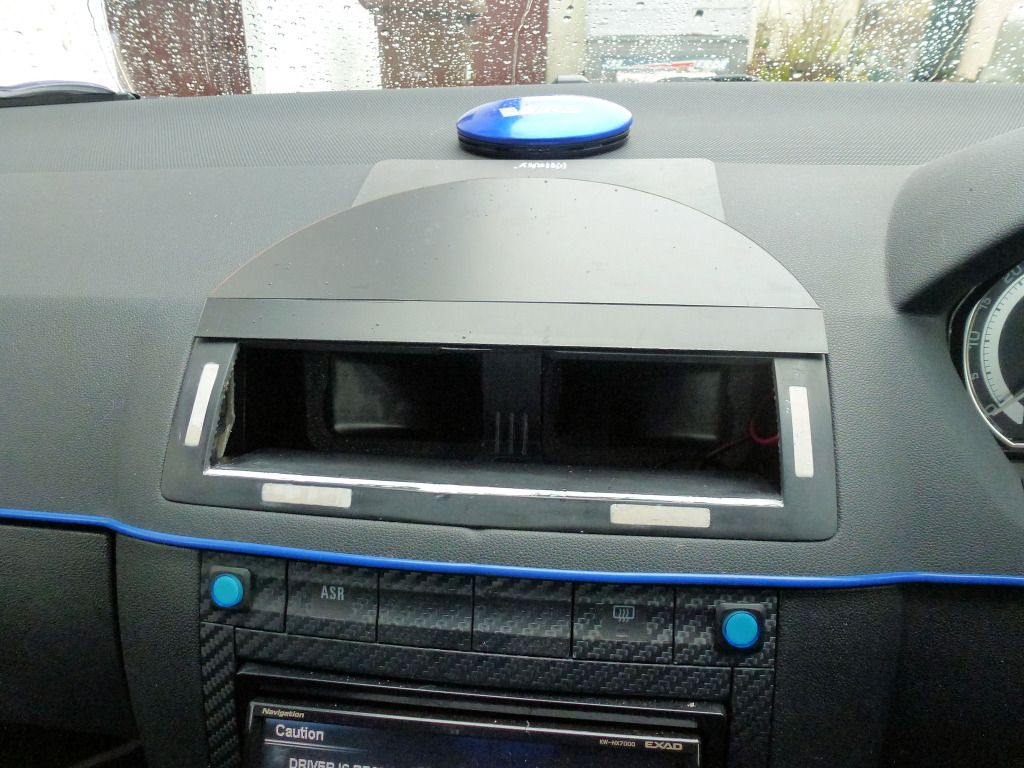

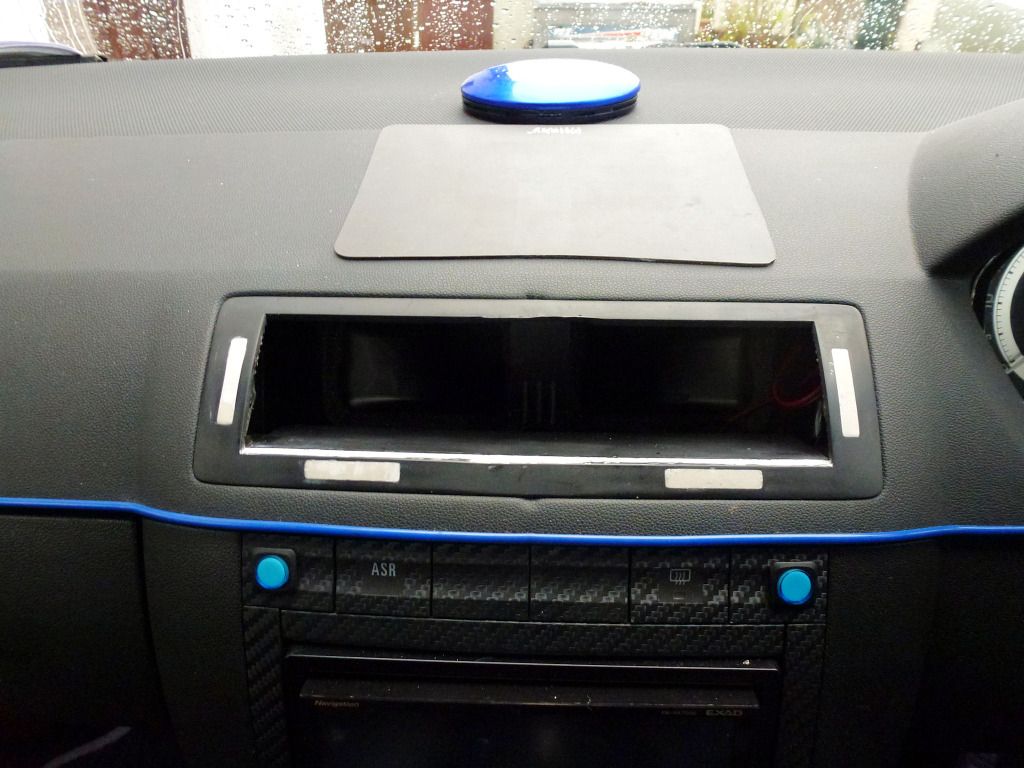

Trial fit into dash, I was hoping to possibly leave a few slats from the vent in place to have a functioning vent but it would have meant that the tablet would have been too high.

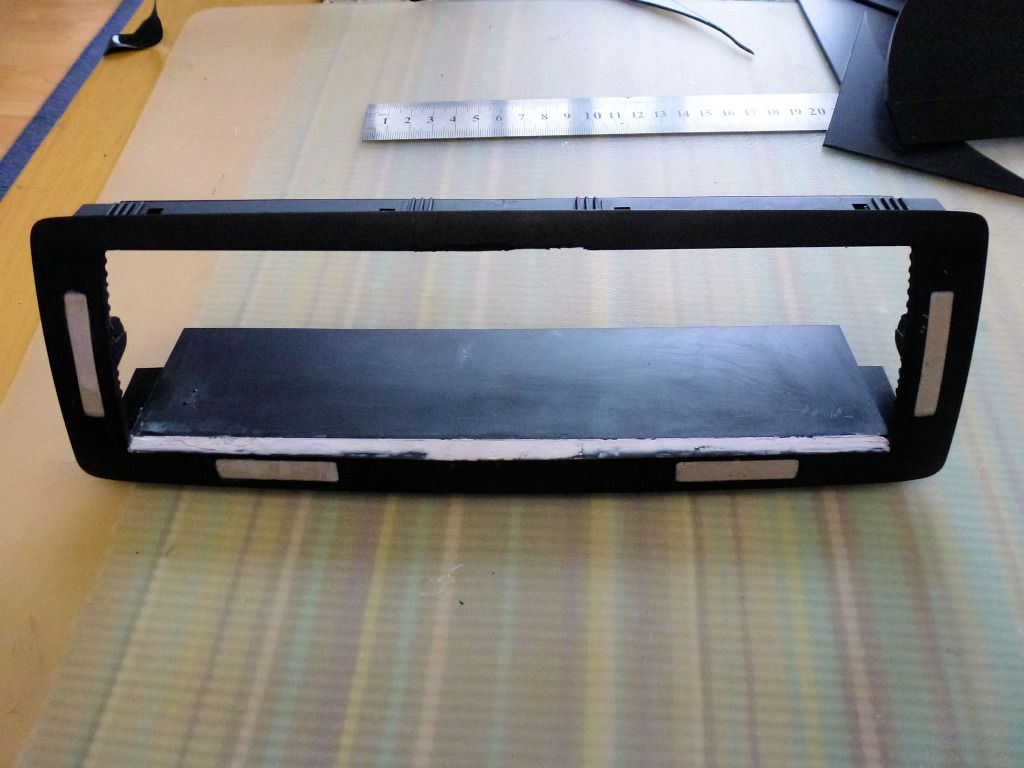

Plastic card was cut to create the base which the pod would sit on

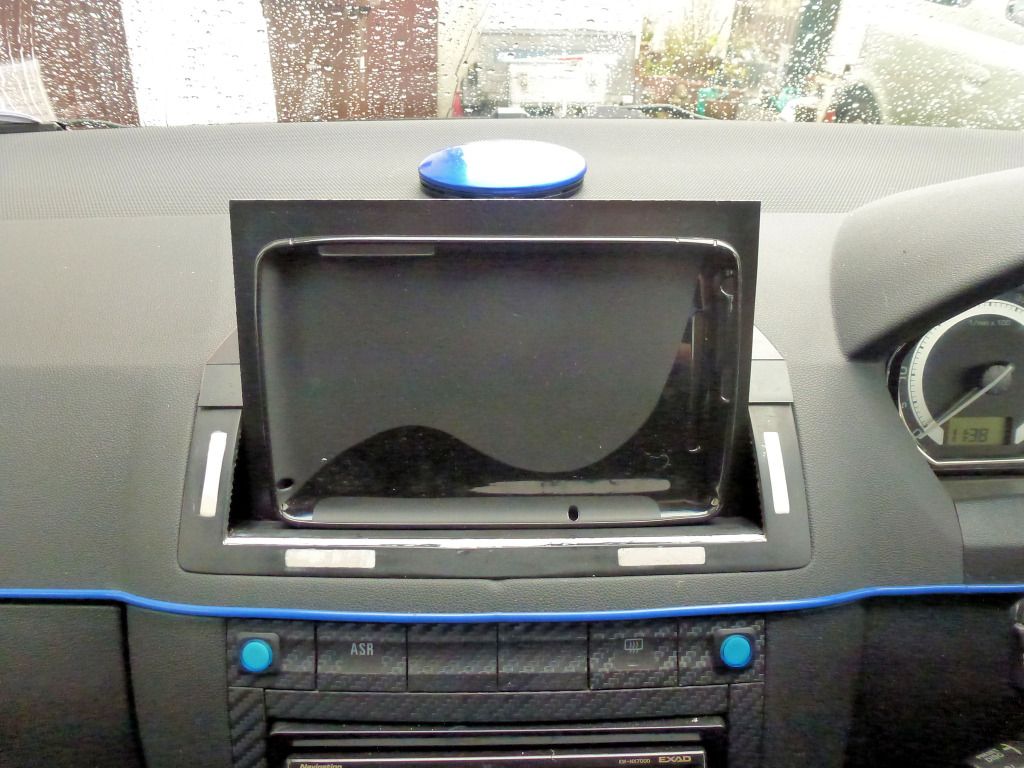

Again with tablet in place to judge the angle of the display

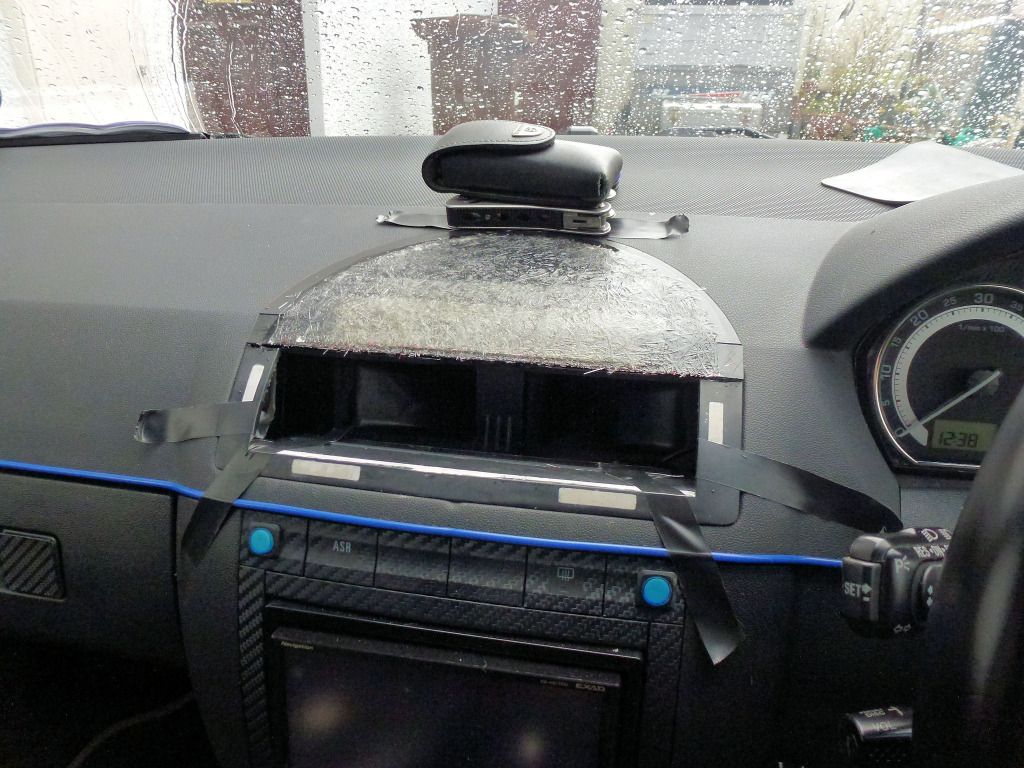

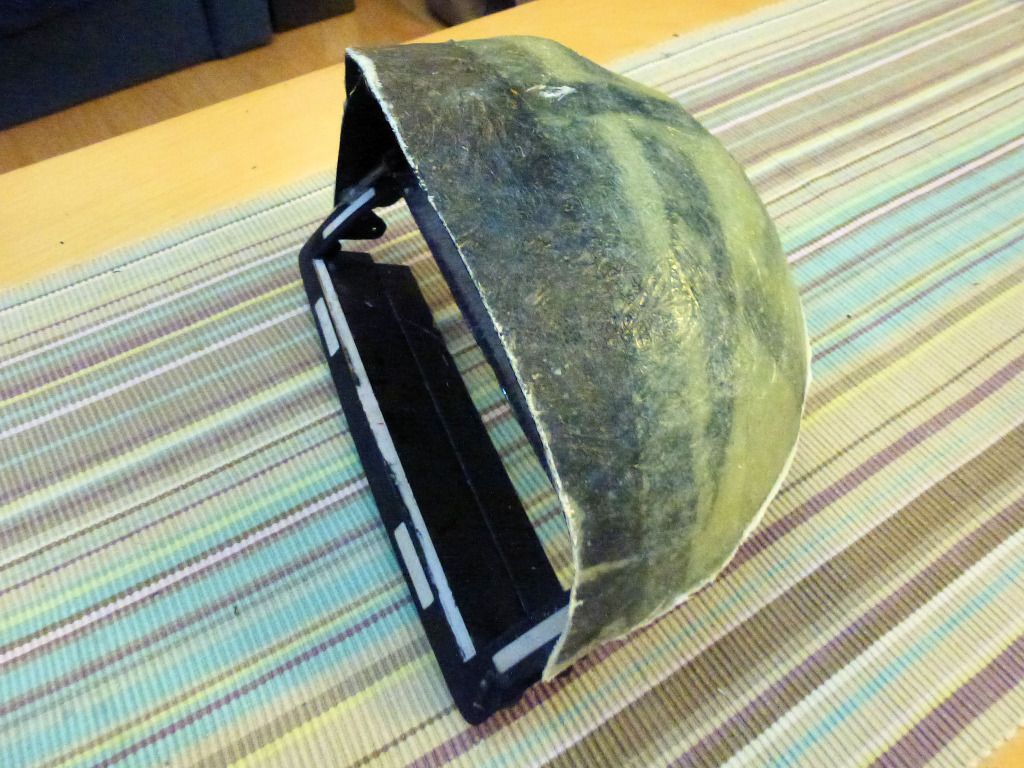

Fibre glass was used to bond the plastic card at the right angle

A frame made out of plastic card was constructed and then coved in fibre glass

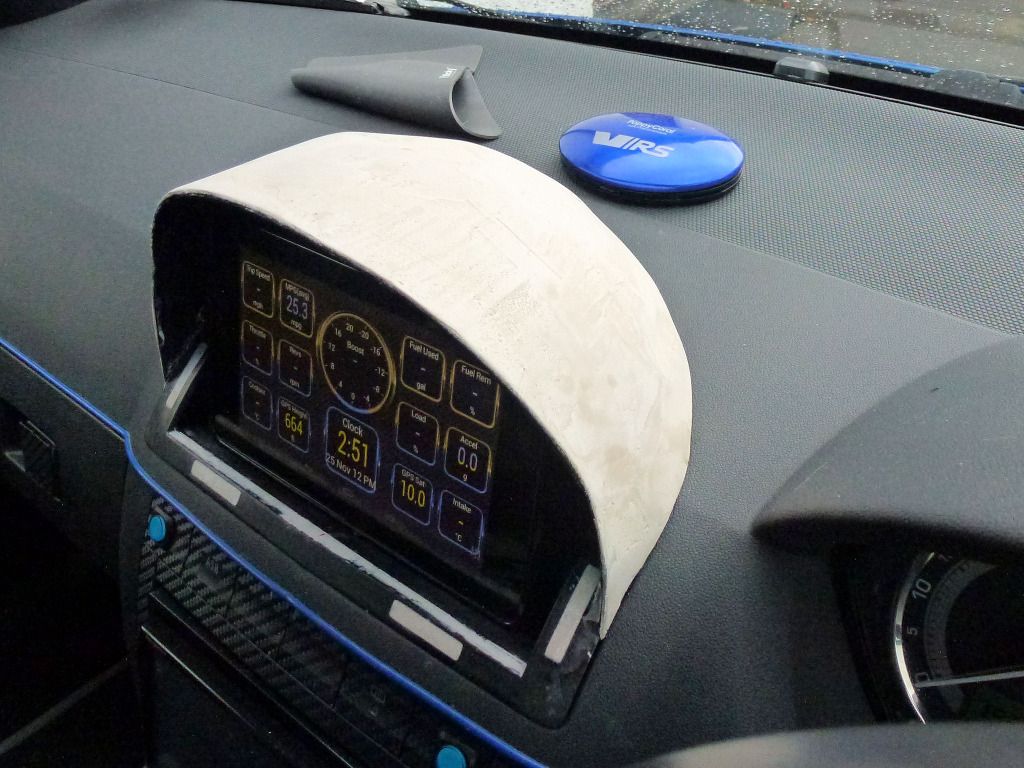

It was then coated in plastic padding to achieve the right contours and then test fitted in the dash

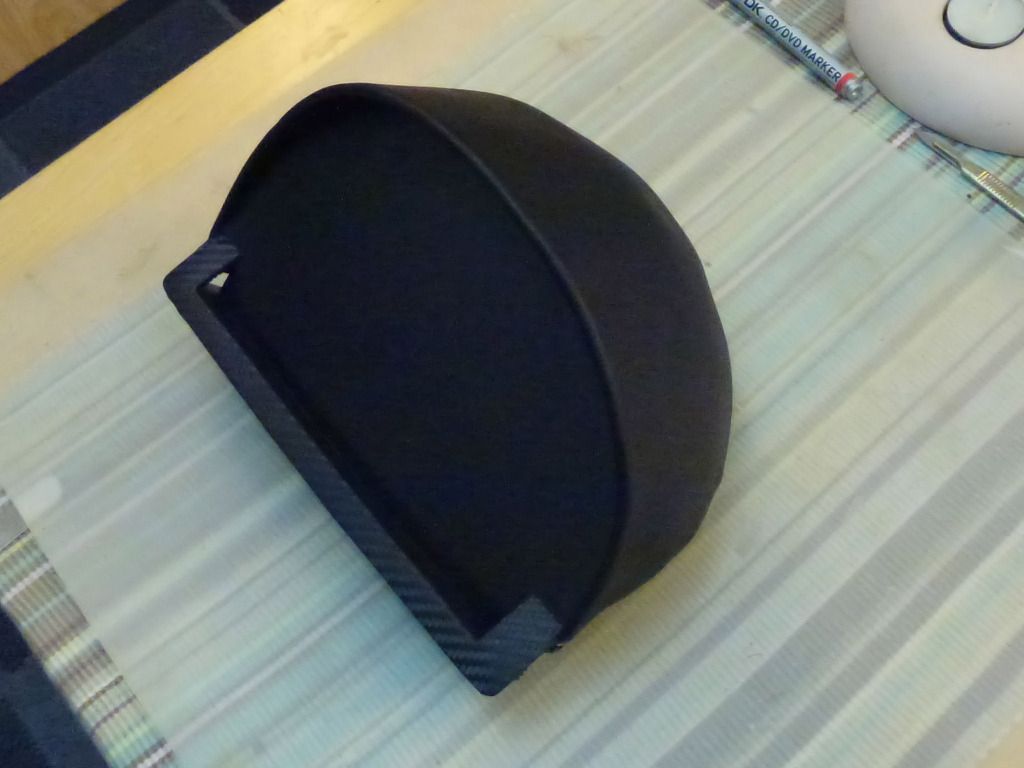

The pod was then covered in vinyl and 3M Carbon fibre film to match the rest of the dash

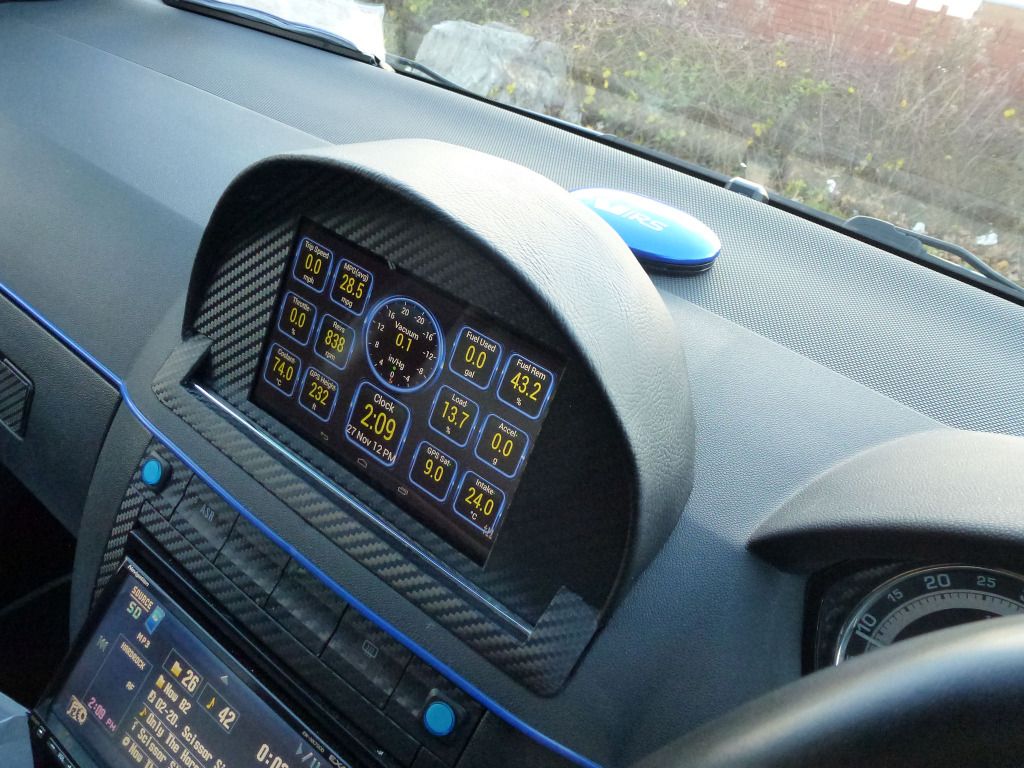

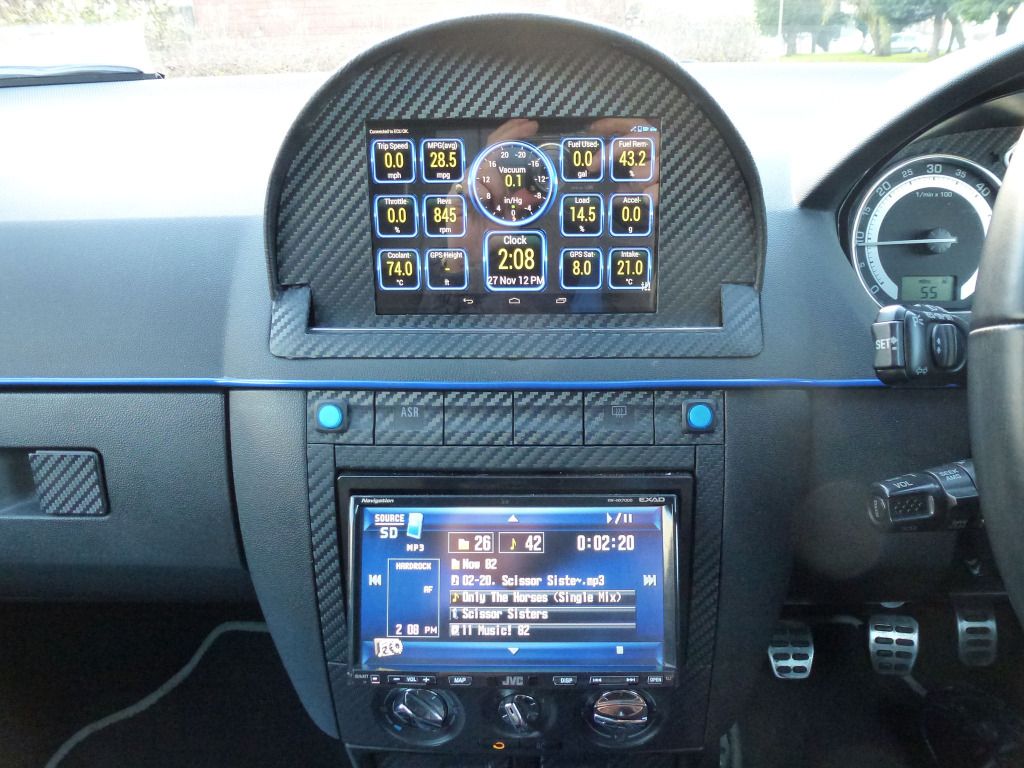

Views fitted inside the car

and

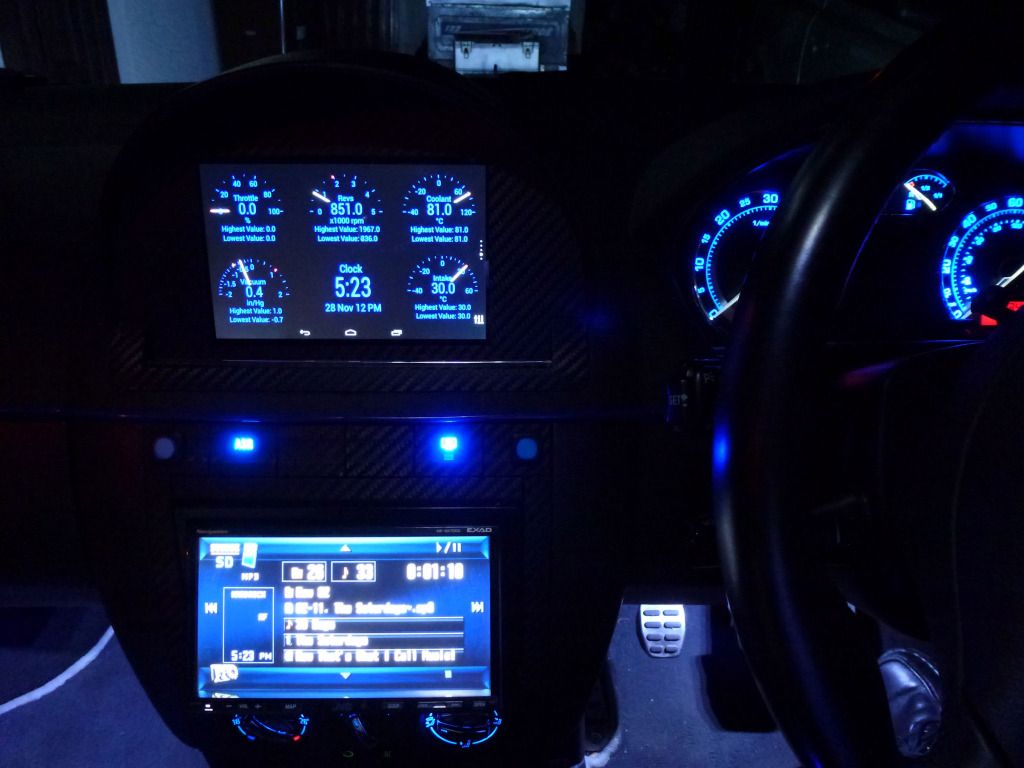

At night

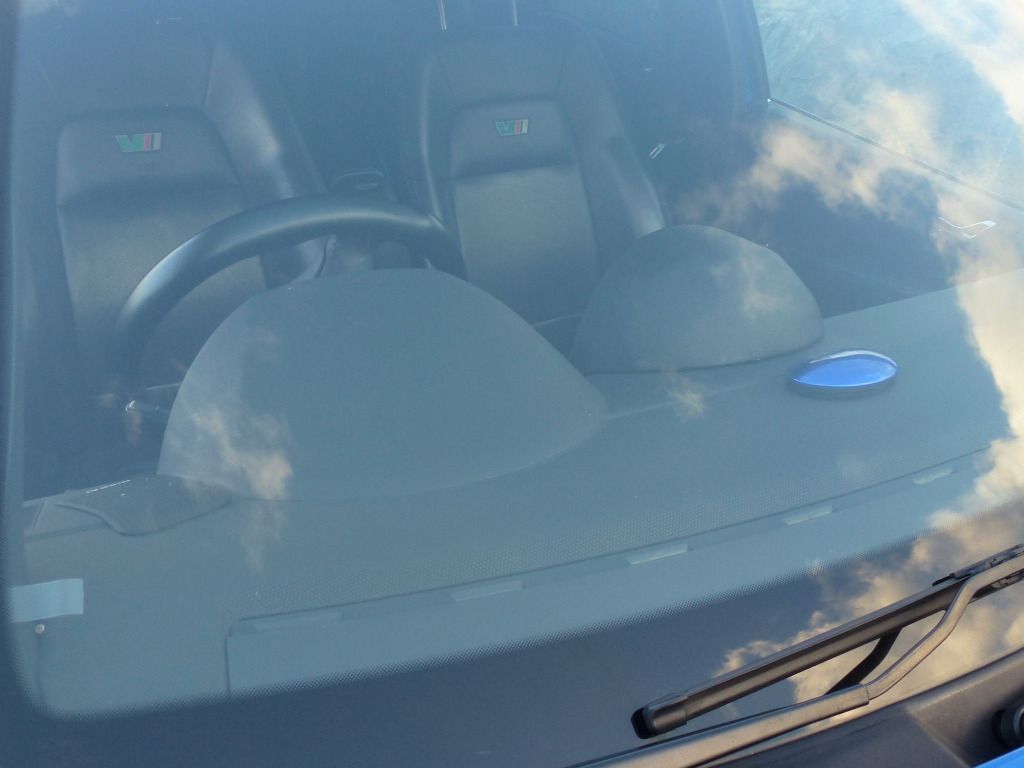

From outside

TO DATE

Relatively happy so far, most of the hardware/software works but needs some tweaking to get it to work smoothly. I have been driving around with it for the last week and it powers up with ignition on and goes to sleep with ignition off and has worked faultlessly.

TO DO

Order some ODBII cables to finish off the bluetooth sensor as I can't close the door in front of the diagnostic socket, still fiddling with getting a memory stick and power to the table at the same time because it has only on usb connector.

BUT I don't like the look of the pod :no:

From outside it looks like a bloody radar pod LOL - although the colour and pattern of the vinyl does match the rest of the dash it looks to big and ungainly.

So back to the drawing board !!

As usual comment and criticism welcome

Cheers for looking guys

Karl
