Hey, everyone. I've been having an issue with my Octavia 1.9 TDI '09. My headlights will not adjust, and I'm getting AFS error, no bend lighting in the dash. I have replaced the level sensor and it will still not work. They go up and down, but not to the sides.



I have tested the motor and they are working fine.

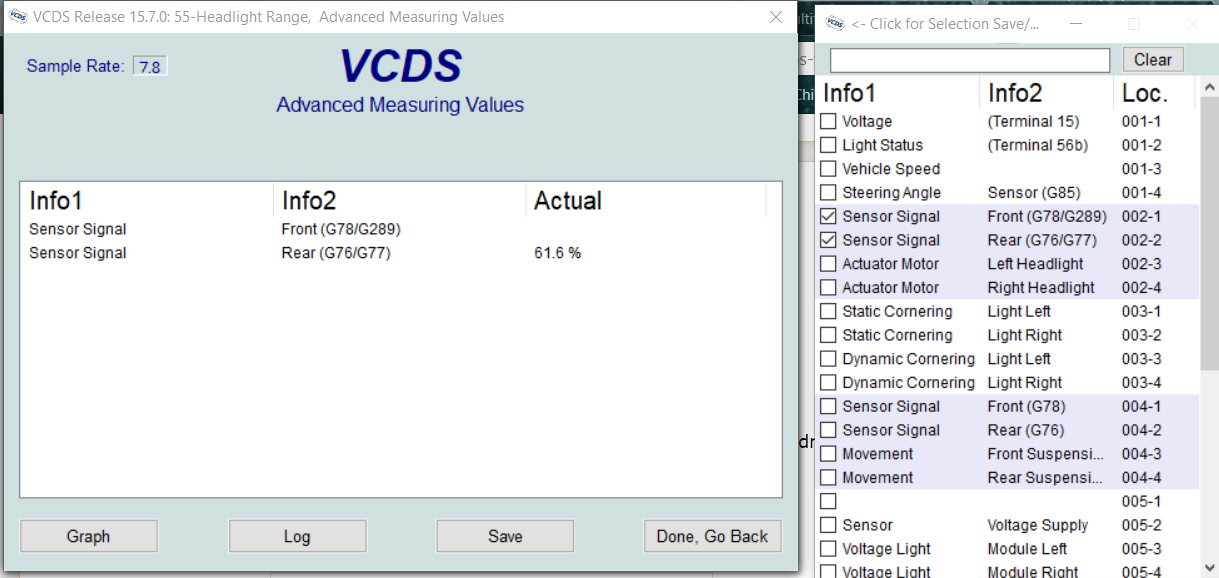

As you can see from the picture, it's not getting any signal, however I just replaced it..? Bad new sensor? Bad AFS Module?



Any help would be greatly appreciated!





vcds log:



Address 55: Headlight Range        Labels: 5M0-907-357-V2.lbl
   Part No SW: 5M0 907 357 C    HW: 5M0 907 357 C
   Component: AFS-Steuergeraet    0136
   Revision: 00H04000    Serial number:
   Coding: 1507354
   Shop #: WSC 73430 790 00999
   VCID: 347E0C1BCE3B9AA2CB68EA5-8060

   Subsystem 1 - Part No: 7L6 941 329 B  Labels: 3D0-941-329.CLB
   Component: AFS-Lst.-Modul l    S004
   Coding: 00000023

   Subsystem 2 - Part No: 7L6 941 329 B  Labels: 3D0-941-329.CLB
   Component: AFS-Lst.-Modul r    0004
   Coding: 00000023

2 Faults Found:
01539 - Headlights Not Adjusted
            005 - No or Incorrect Basic Setting / Adaptation - MIL ON
             Freeze Frame:
                    Fault Status: 11100101
                    Fault Priority: 3
                    Fault Frequency: 1
                    Reset counter: 117
                    Time Indication: 0

             Freeze Frame:
                        Invalid
                        Invalid
                        Invalid

00496 - Sensor for Vehicle Leveling; Front
            007 - Short to Ground - MIL ON
             Freeze Frame:
                    Fault Status: 11100111
                    Fault Priority: 3
                    Fault Frequency: 254
                    Reset counter: 137
                    Mileage: 179649 km
                    Time Indication: 0
                    Date: 2011.11.02
                    Time: 01:08:08

             Freeze Frame:
                    Voltage: 11.79 V
                    Speed: 0.0 km/h
                        ABS 1


I'd suggest checking the wiring between the front sensor and AFS master (under the radio).

On 10/12/2017 at 15:21, langers2k said:

I'd suggest checking the wiring between the front sensor and AFS master (under the radio).

Wiring seems fine, as far as I can see, that is. Not exactly an easy place to get to. Any other idea?

If all three wires between the front sensor and AFS master are ok, then it's either the front sensor or AFS master at fault.



As you've replaced the front sensor, that suggests the AFS master. Guess the next stage is to try replacing that...



Still feels like a wiring issue to me though :/
