pab567

Yes, you go directly from 253T to 480T now. Just keep in mind metainfo2.txt from 480T must be modified to (check for "RequiredVersion" tags and change non-zero values to 0.

Use tools menu to patch SWDL

All you need is MIB STD2 Toolbox and google

@Vladimir2708 I'm sorrry but I don't know the solution to patch your unit.

@oabraldes what is part number of your infotainment unit?

sent in PM

Sure, I sent you request to share VIN in PM

I sent you download link for MEN2_EU_SKGPx_P0080L_8755 in PM.

I sent you download link to MEN2_EU_SKGPx_P0080L_8755 in PM.

It's possible but it requires unit to be patched first, also the metainfo2.txt file must be modified. Is it worth? There are no new features, just new skins.

I can see I sent you link to SEAT version instead of SKODA, sorry. have just resent the right one MST2_EU_SK_ZR_P0253T. Of course you can upgrade to , you entered your train incorrectly (MST2_EU_SK_ZRP0245T, the right one is MST2_EU_SK_ZR_P0245T):

1800? There is no such firmware, for sure not for your unit. I sent you link to download MST2_EU_SE_ZR_P0253T which is thsn't help pls let me know.e most recent firmware for your unit, if it doe

sure... start with factory reset, I have just sent you link to MEN2_EU_SKGPx_P0080L_8755 anyway

Make a factory reset, this is very common fault.

Link to MEN2_EU_SKGPx_P0080L_8755 sent in PM

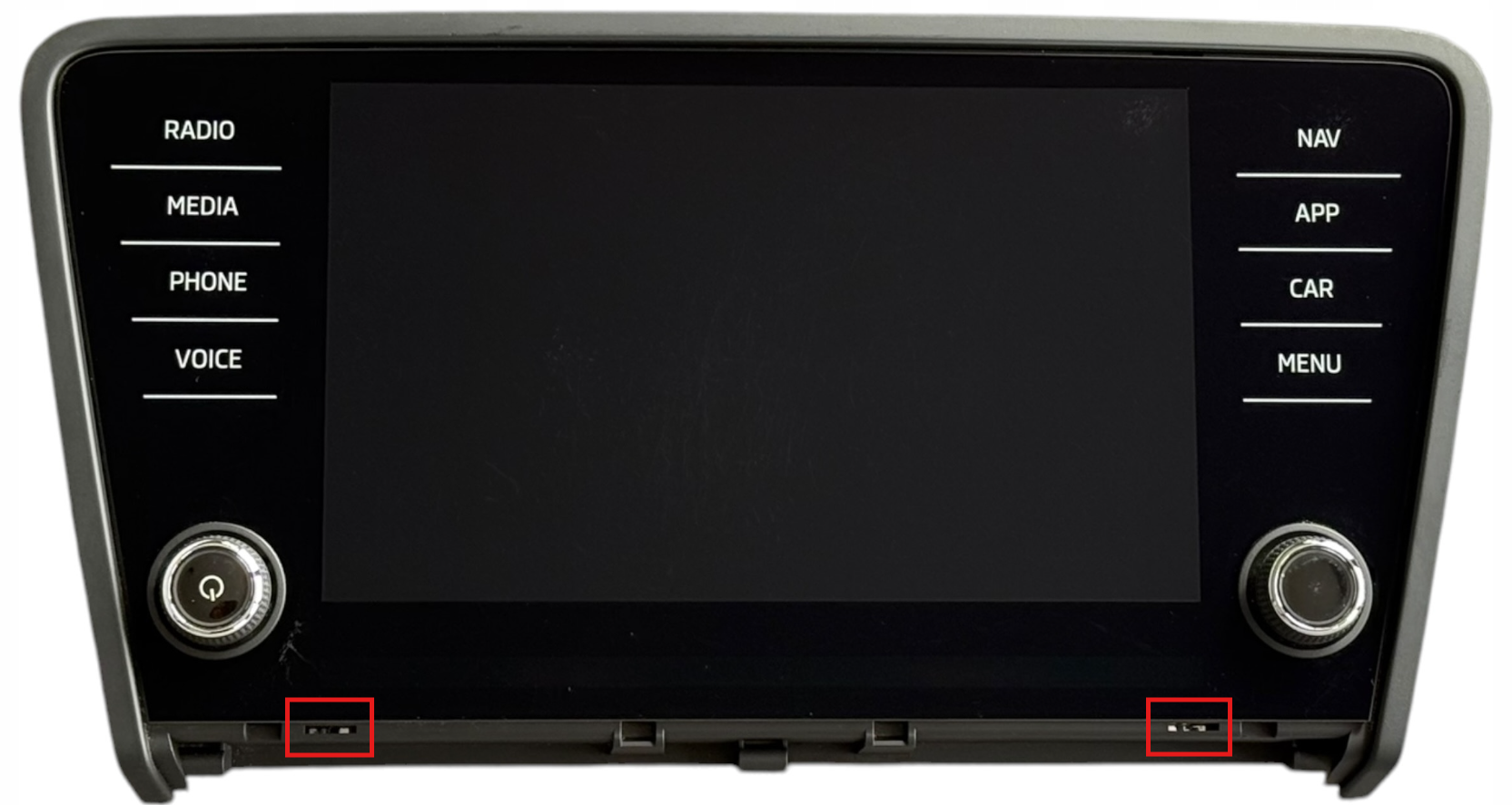

As far as I remember it's really not required but I can check in reality later when I am back home. See the slots in the picture below.

Exactly, below the screen but above the plastic trim there are two holes to insert the removal keys. There is NO need to remove the plastic trim.

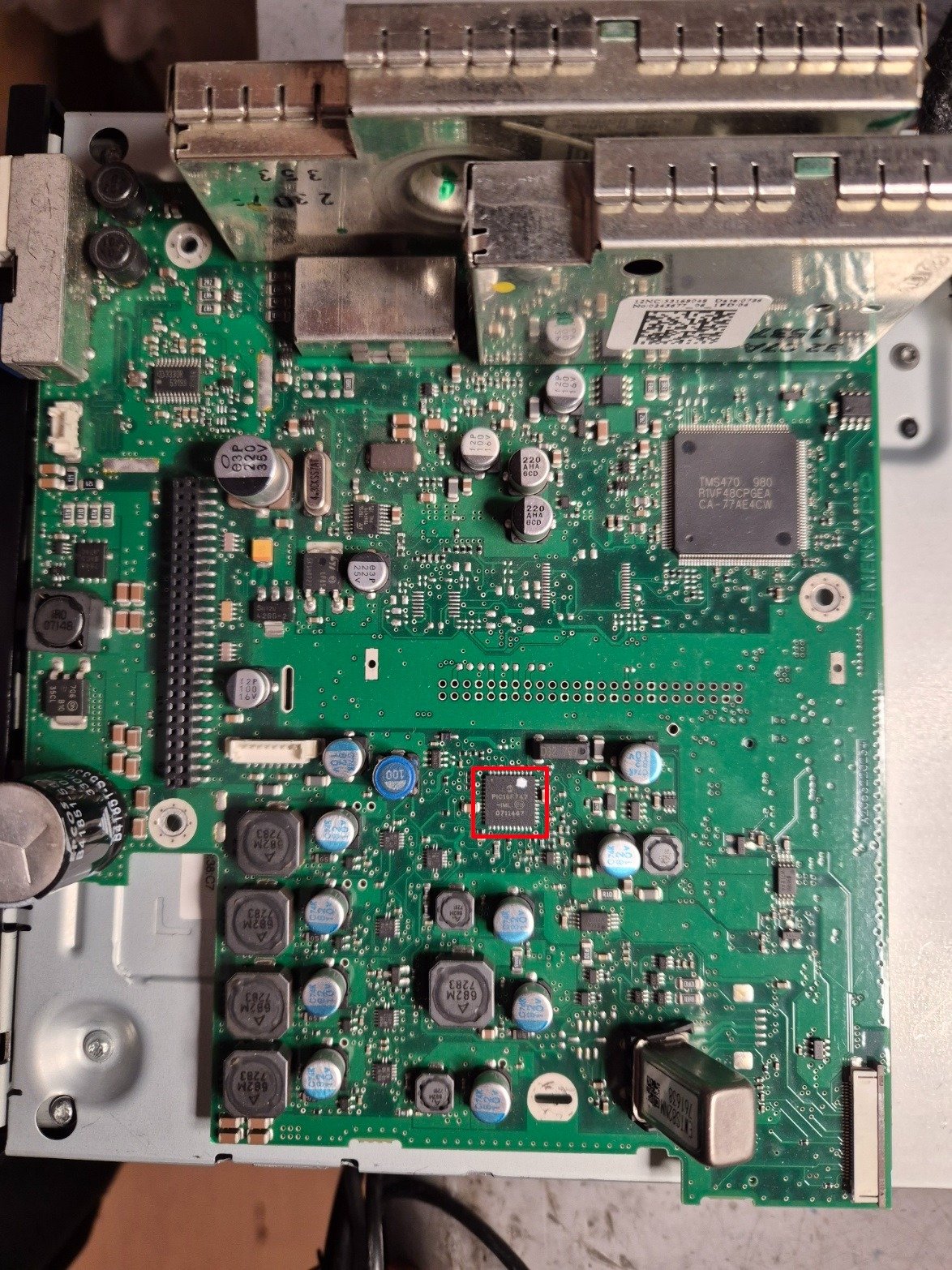

I've sent you link to download 6276 but I'm afraid this might be a hardware, not firmware problem. If firmware reflash doesn't help then you can try to have it repaired locally, start with resoldering chip i marked red in the picture below.

Link to MST2_EU_SK_ZR_P0480T sent in PM

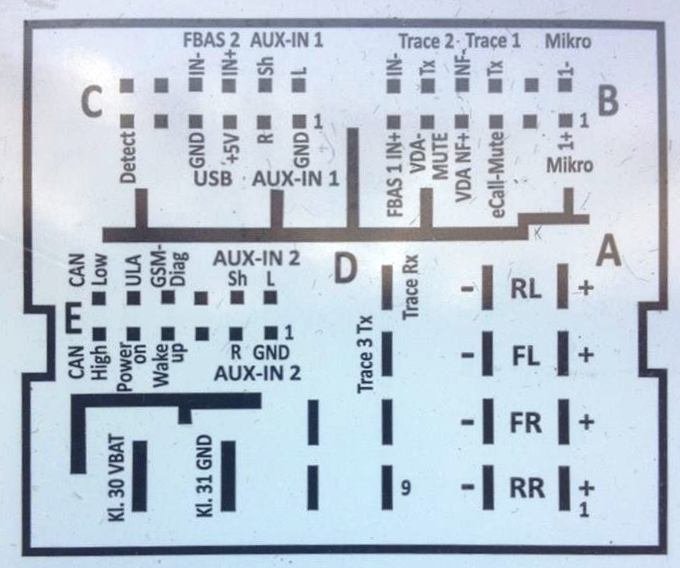

Pinout attached

What tool did you use? What is part number of unit you broke?

DAB antenna input

I'm currently hardly available due to health / family issues. MIB2 High toolbox is your friend

PM sent

Answering your doubts and questions: Is 565 035 020 A a suitable retrofit into a Superb MK3 that originally had 5Q0 035 840 B? => Yes, it is Which connector is usually different between these two setups? => LVDS HSD video connector is pink in Bolero and grey in Columbus. Do I need an adapter cable, repinning, or only a small modification to the connector keying? => Small modification is enough as they are electrically the same, just take the sharp knife and cut out from the pink plug an excessive platic trim that prevents it from being plugged into grey socket. After fitting the hardware, what exactly is needed next: Component Protection removal => yes, online or patching coding/adaptations in 5F => yes, usually done by uploading raw data adaptation channel maps with VCDS and then modifying channels that were not updated automatically FEC/SWaP activation for navigation / voice / SmartLink => yes, usually done by patching and loading new FEC container Can any of this be done with ODIS + VCX SE, or is dealer online access still required for some parts? => All can be done by patching and ODIS / VCP / VCDS / VC Tool / OBD Eleven
