Cairus

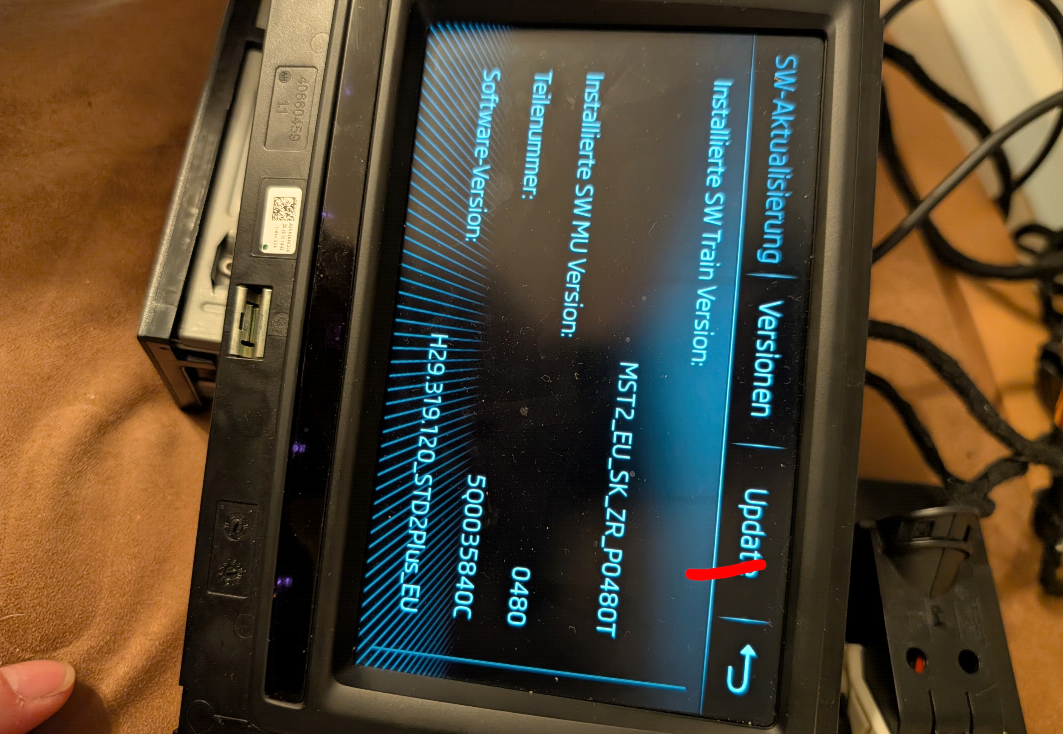

Make Update

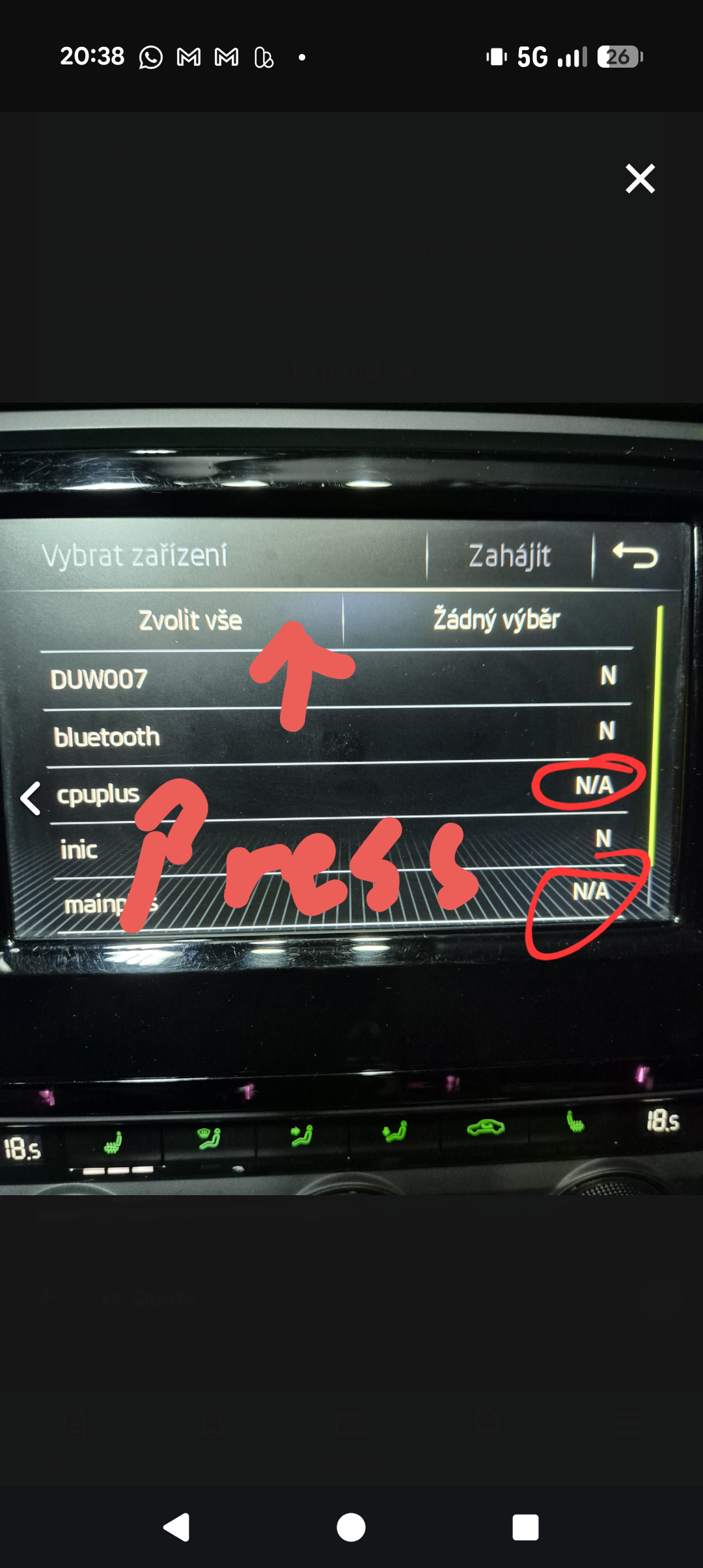

Press

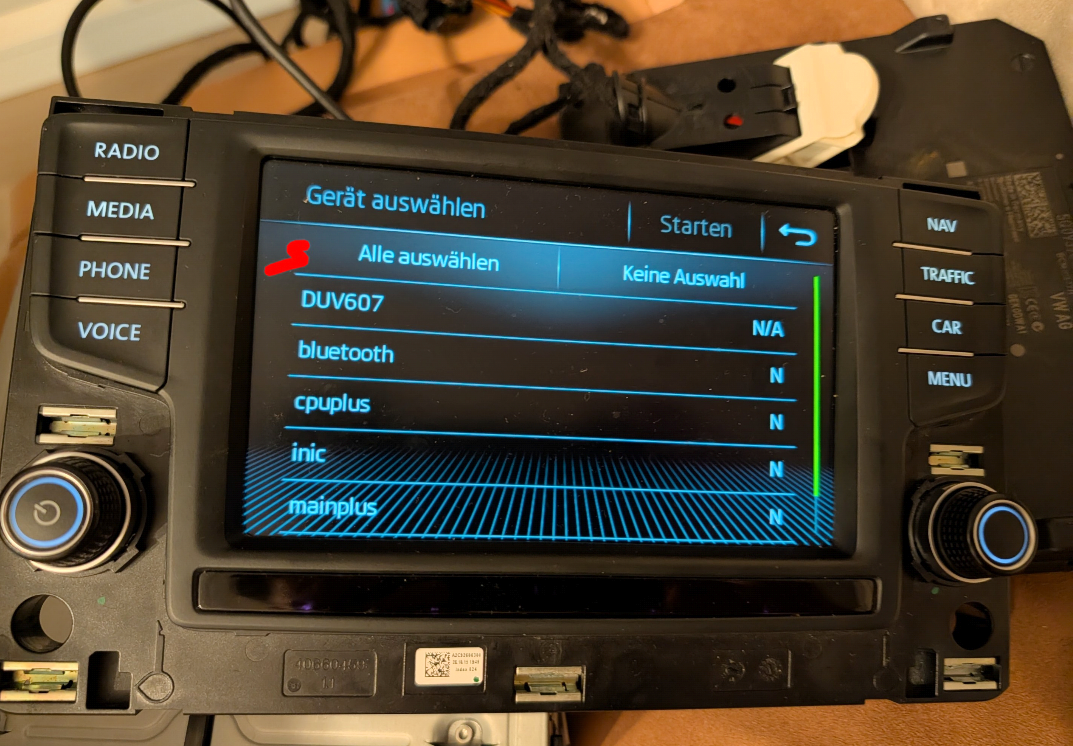

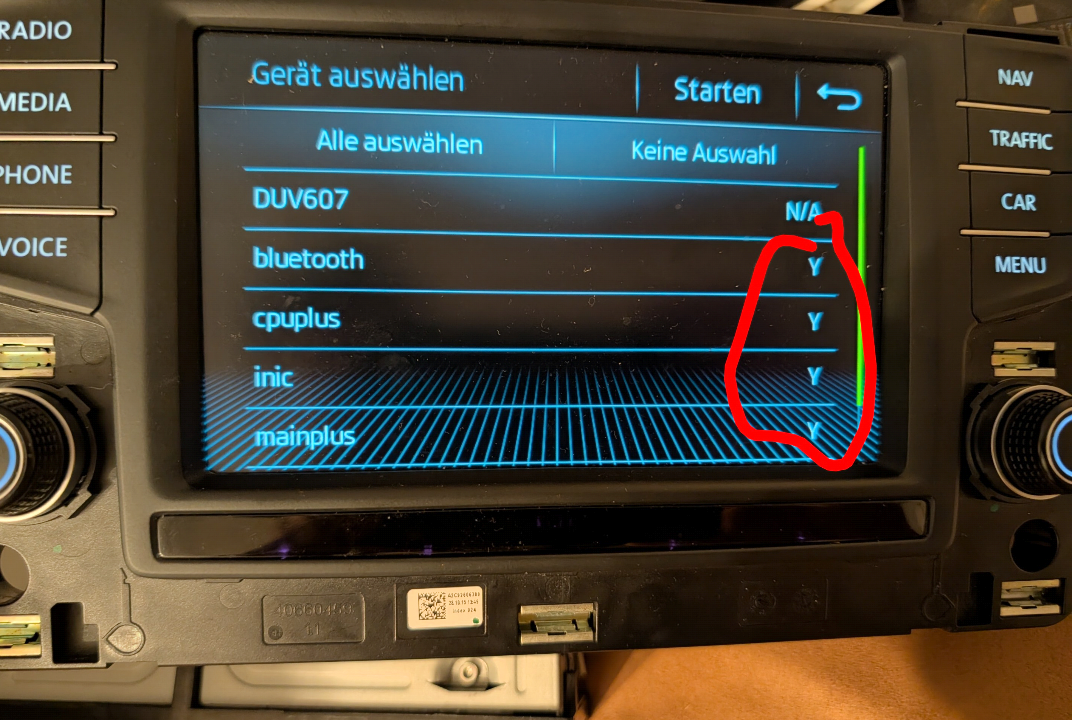

Select all, then unselect only this 3 parts

This Dont forget To unselect emergency Main and CPU and ESD Folder

I Upload To my Server

Wait

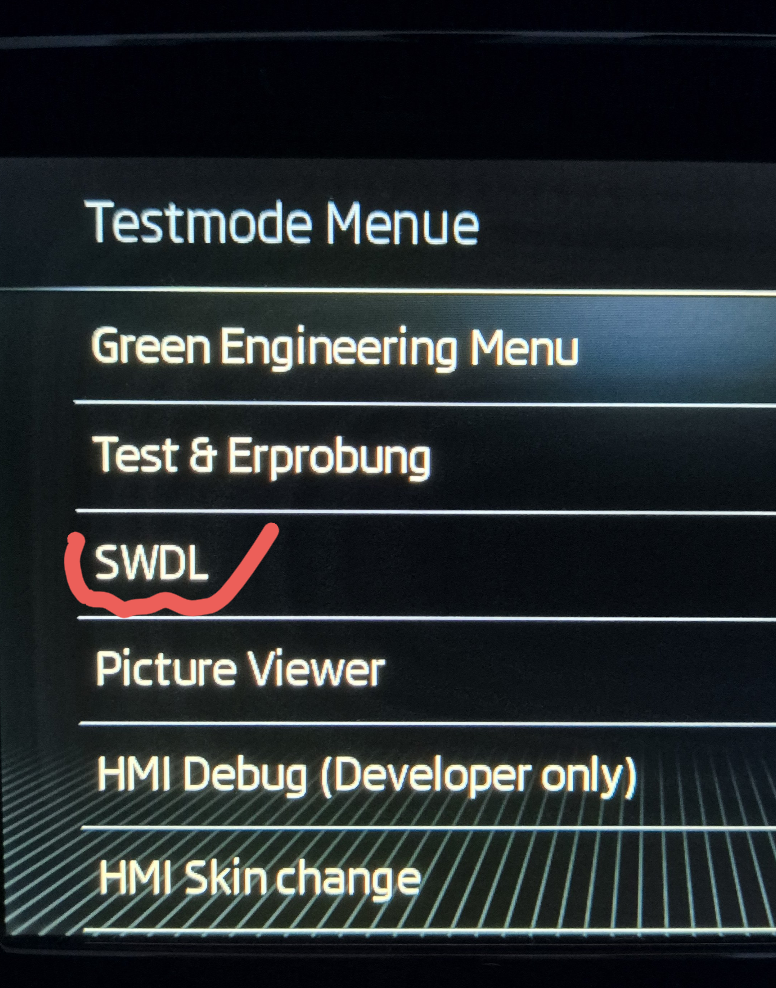

This Menü

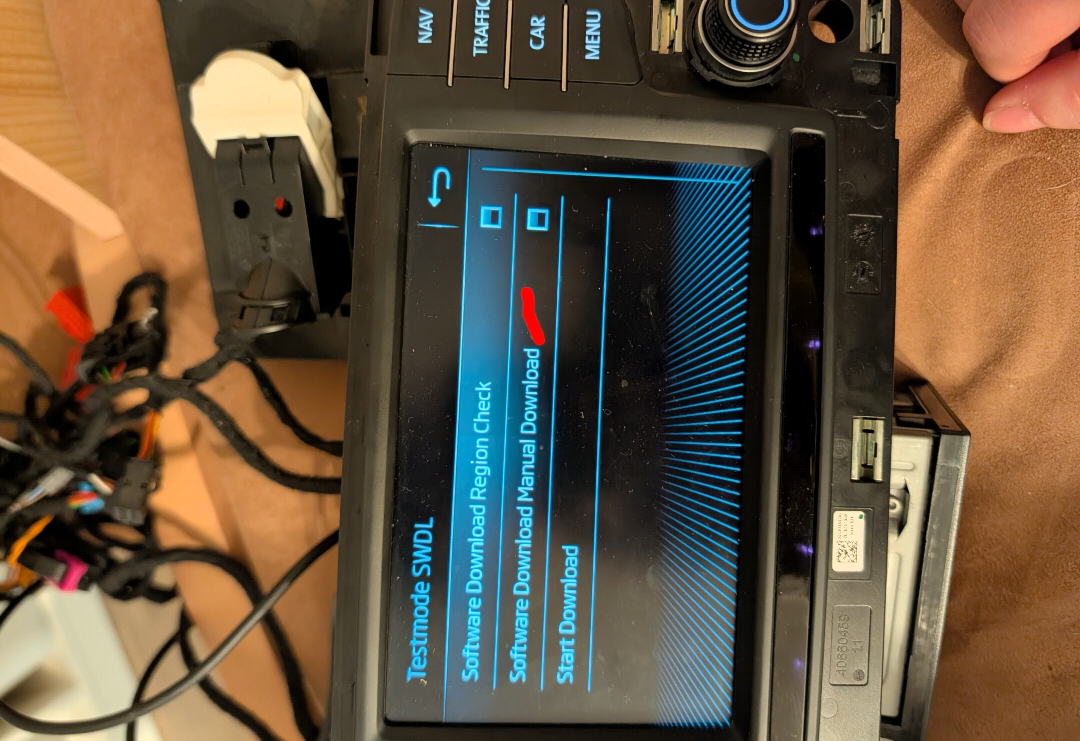

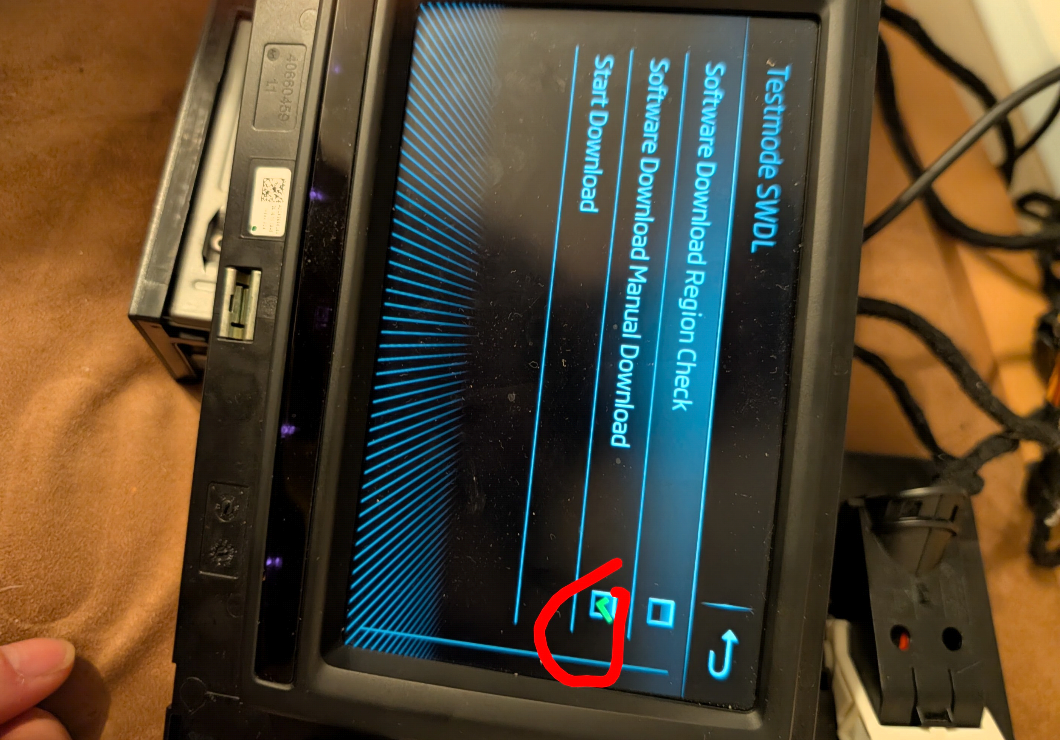

You have to made it in the SWDL Menü

News?

You have a VAS Dongle? I can Help remote

PM send...

You Install Firmware with this Display?

Correct is 65skin Show me Update History and Software overview Your Screen have 6,5"?

Yes Odis online for remove CP Incorrect Coding is Not the Problem for Touch Which Mode have HMI Skin?

CP Error is Not the Problem, you have done CP Patch?

1) Check im Service Menü "HMI Skin Change" what is there aktiv? 2) reflash Firmware without Main & CPU emergency and without ESD(ToolBox)in Swdl Menü

OK, 👍

How you Install the ToolBox? The partnumber is MIB2 Bolero with one SD Card

When you Change Back? Everything fine?

With mib1 all works fine Which Model Year?

Where you buy the Unit? You have a Firmware Train JUMP, this Update was correct done?

Are all cables fully connected? What is the part number of the display? Have you already completely reflashed the unit's firmware? I do many MIB1 conversions, but I've never encountered this problem before.

Beitrag im Thema '[HOW TO DO] (pdf) VM + QNX + Toolbox + eMMC Installation - MST2 Technisat/Preh Unit - update' https://www.digital-eliteboard.com/threads/how-to-do-pdf-vm-qnx-toolbox-emmc-installation-mst2-technisat-preh-unit-update.531049/post-4465646

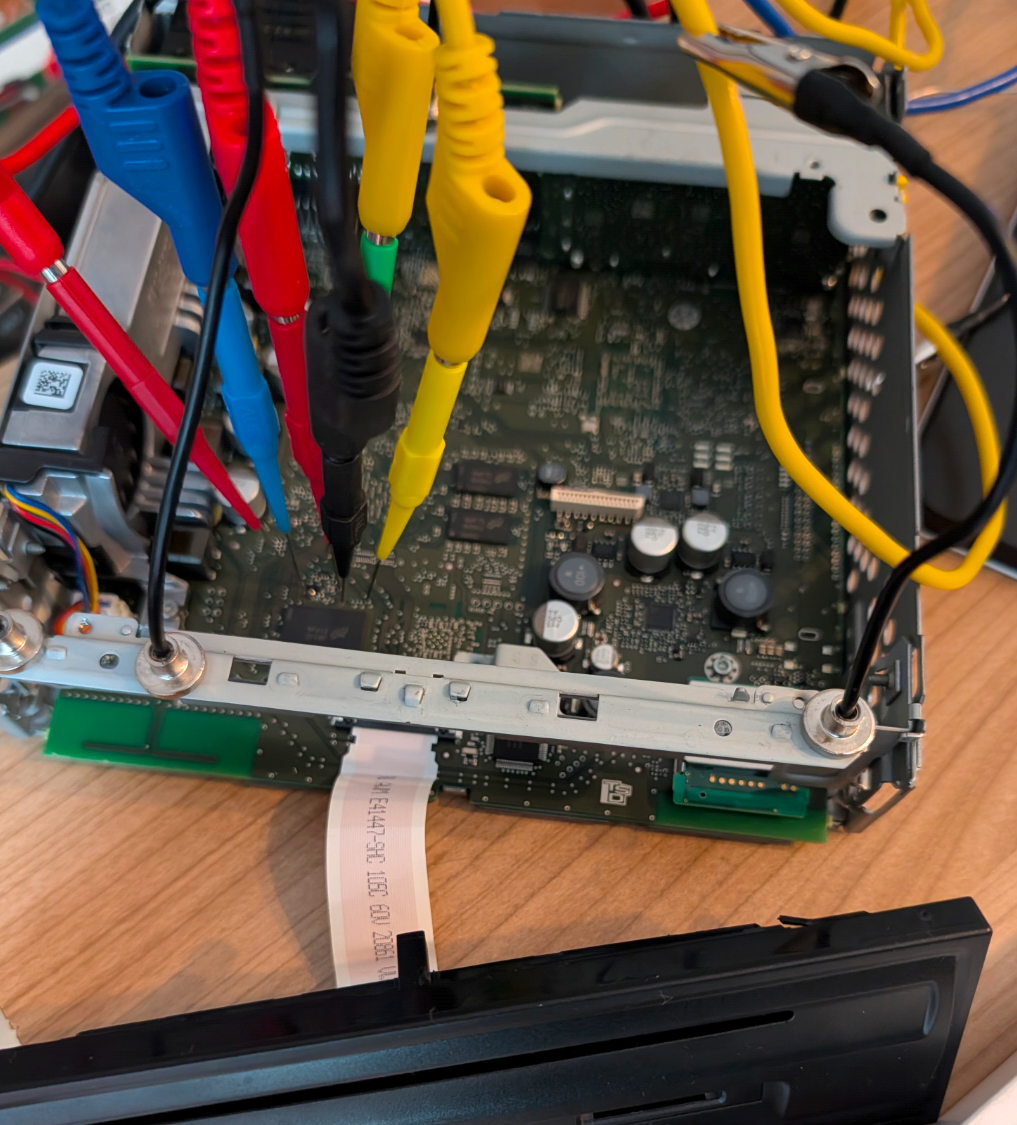

You need a modified meta file. Then run Swdl manually. First, select everything and manually deselect Emergency Main and CPU. Perform the update. That should all work, then reinstall the full firmware. Emergency Main and CPU should then also run. You can also perform a firmware Train JUMP upgrade without Toolbox. Now you need QNX... I developed my own contact method,see Picture With black frame. If the emergency menu appears, you can still try using a pin clamp and PuTTY.

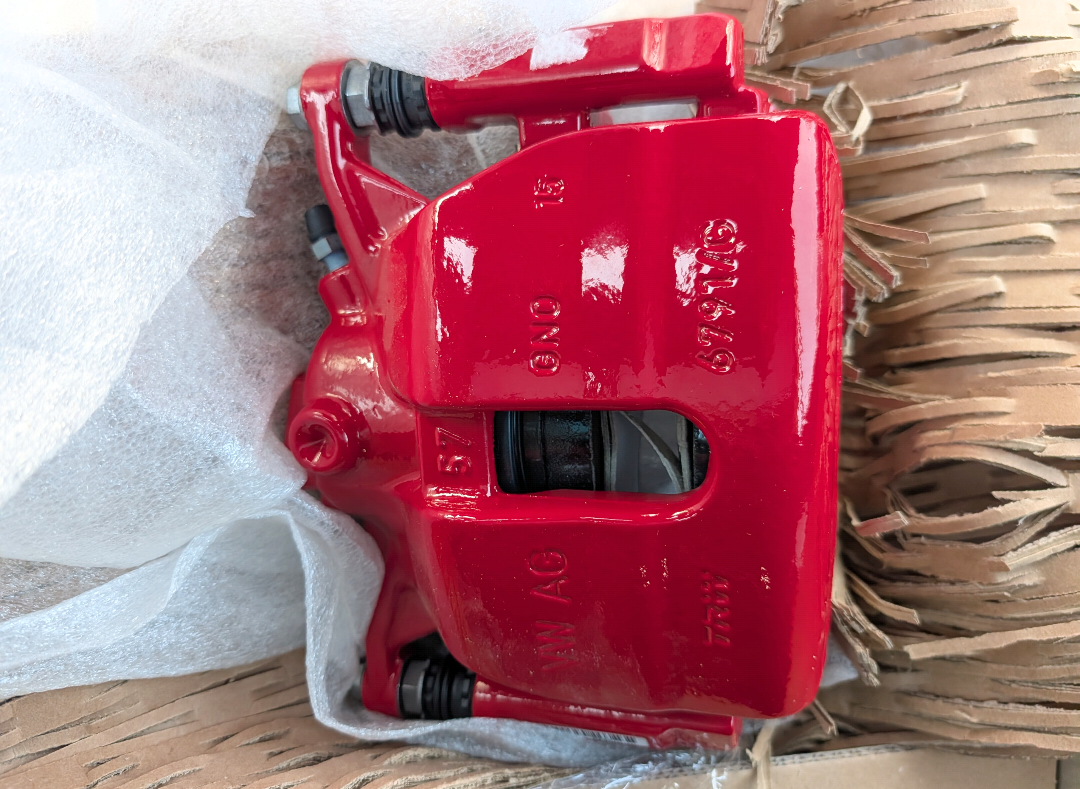

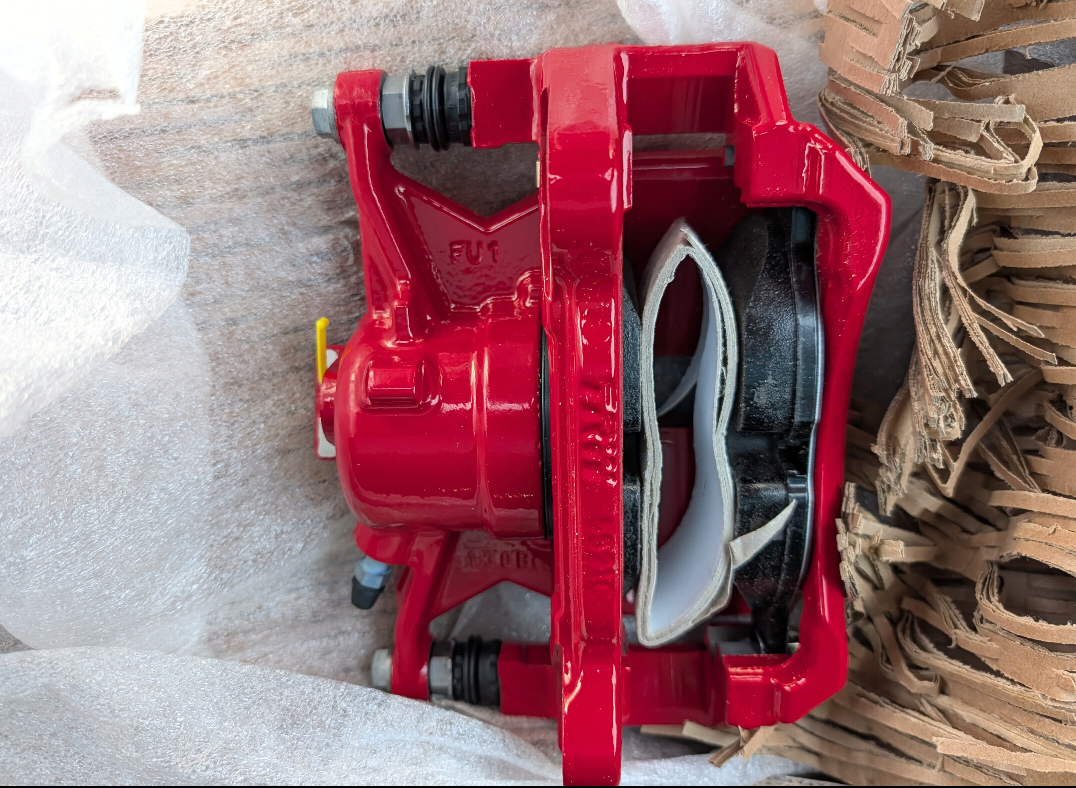

I've got a set of brand new red brakes.
