Thanks for the tip, did manually change byte 21 value from ED to 6D but as you can see below still reports issues with the wiper motor.

As for the Webasto, it is fully functional, I did switched it on a few minutes before entering the car and ran the basic settings 011 steps.

But the can still reports errors.

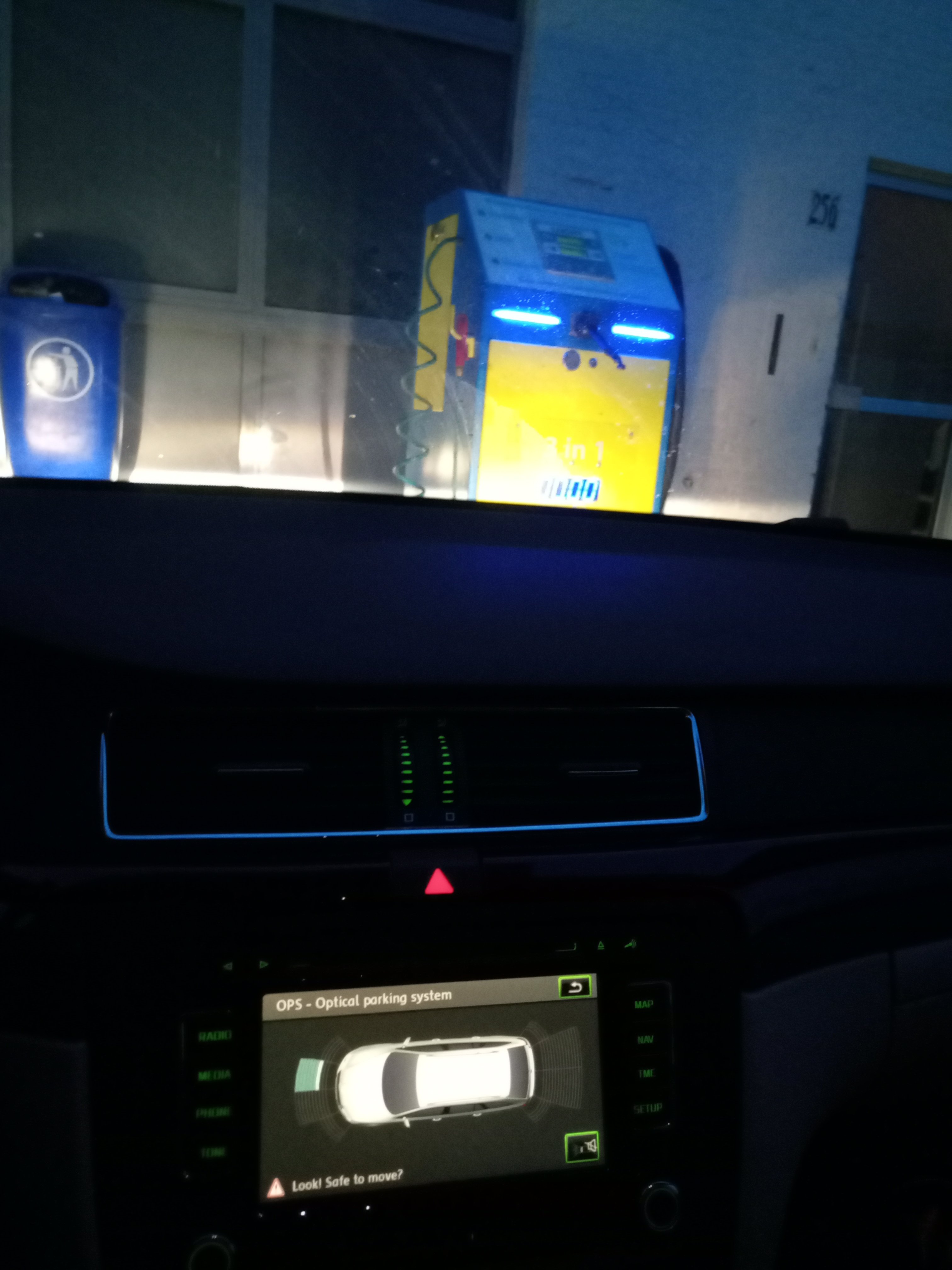

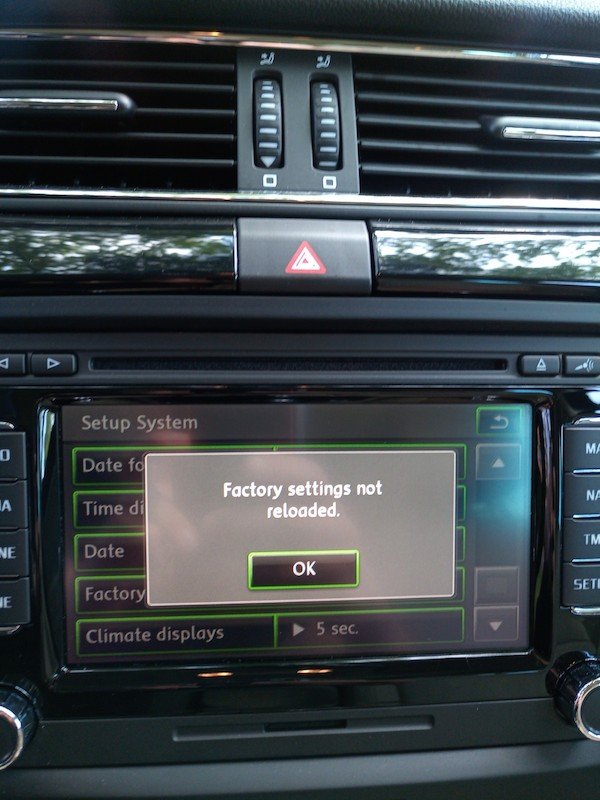

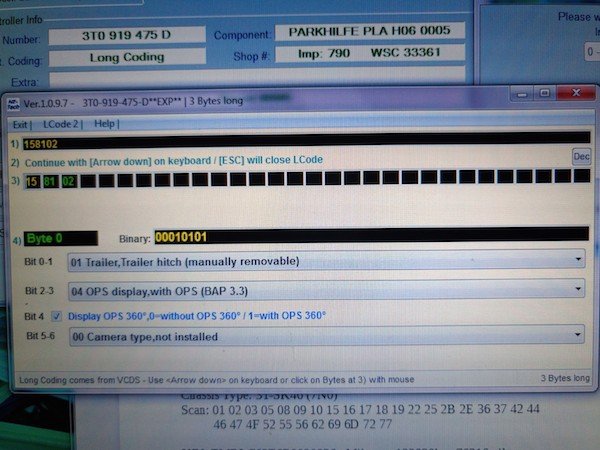

As for the OPS display, still not there. Drove a little bit the car, used the assisted parking functionality, but still no display. Depending on the Columbus

selected functionality (radio or map), display stays on the selected functionality.



See below tonight's VCDS dump.



uesday,30,July,2019,21:17:21:16291
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 7 x64
VCDS Version: 19.6.1.0 (x64)  HEX-V2 CB: 0.4508.4
Data version: 20190529 DS308.0
http://www.Ross-Tech.com


VIN: XXXXXXXXXXXXXXX   License Plate:


Chassis Type: 3T-SK46 (7N0)
Scan: 01 02 03 05 08 09 10 15 16 17 18 19 22 25 2B 2E 36 37 42 44
          46 47 4F 52 55 56 62 69 6D 72 77

VIN: XXXXXXXXXXXXXXX    Mileage: 122640km-76204miles

01-Engine -- Status: OK 0000
02-Auto Trans -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
05-Acc/Start Auth. -- Status: OK 0000
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: Malfunction 0010
10-Park/Steer Assist -- Status: OK 0000
15-Airbags -- Status: OK 0000
16-Steering wheel -- Status: OK 0000
17-Instruments -- Status: OK 0000
18-Aux. Heat -- Status: Malfunction 0010
19-CAN Gateway -- Status: OK 0000
22-AWD -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
2B-Steer. Col. Lock -- Status: OK 0000
2E-Media Player 3 -- Status: OK 0000
36-Seat Mem. Drvr -- Status: OK 0000
37-Navigation -- Status: OK 0000
42-Door Elect, Driver -- Status: OK 0000
44-Steering Assist -- Status: OK 0000
46-Central Conv. -- Status: OK 0000
47-Sound System -- Status: OK 0000
4F-Centr. Electr. II -- Status: OK 0000
52-Door Elect, Pass. -- Status: OK 0000
55-Headlight Range -- Status: OK 0000
56-Radio -- Status: OK 0000
62-Door, Rear Left -- Status: OK 0000
69-Trailer -- Status: OK 0000
6D-Trunk Elect. -- Status: OK 0000
72-Door, Rear Right -- Status: OK 0000
77-Telephone -- Status: OK 0000
-------------------------------------------------------------------------------
Address 01: Engine (0-32-CDVA)       Labels:. 03H-907-309-V1.clb
   Part No SW: 03H 906 023 CF    HW: 03H 907 309 C
   Component: 3.6 FSI EU5   H04 5770
   Revision: MFH04---    Serial number:
   Coding: 001D0012242600000000
   Shop #: WSC 33361 790 00060
   ASAM Dataset: EV_ECM36FSI01103H906023CF 001002
   ROD: EV_ECM36FSI01103H906023CF.rod
   VCID: 68884CD012F02177629-803C

No fault code found.
Readiness: 0000 0000

-------------------------------------------------------------------------------
Address 02: Auto Trans        Labels: 02E-927-770.clb
   Part No SW: 02E 300 016 A    HW: 02E 927 770 AL
   Component: GSG DSG AG6     521 4002
   Revision: 05652104    Serial number: 00001307251298
   Coding: 0000020
   Shop #: WSC 33361 790 00085
   VCID: 127C4E38486C7BA76CD-8046

No fault code found.

-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104)       Labels:. 1K0-907-379-60EC1F.clb
   Part No SW: 1K0 907 379 BL    HW: 1K0 907 379 BL
   Component: ESP MK60EC1   H31 0152
   Revision: 00H31001
   Coding: 843DA016192400FA211305E7981F0041350950
   Shop #: WSC 12345 123 61029
   VCID: 7DA60D846DF294DFA1F-8028

No fault code found.

-------------------------------------------------------------------------------
Address 05: Acc/Start Auth. (J518)       Labels:| 5K0-959-434.clb
   Part No SW: 5K0 959 434 B    HW: 5K0 959 434
   Component: VWKESSYPQ35GP 086 1101
   Revision: 00086000    Serial number: 0194240129
   Coding: 030C0C
   Shop #: WSC 33361 790 00085
   ASAM Dataset: EV_KESSYPQ35G A02013
   ROD: EV_KESSYPQ35G_A02_SK46.rod
   VCID: 3430E8A01EB895971E1-8060

No fault code found.

-------------------------------------------------------------------------------
Address 08: Auto HVAC (J255)       Labels:| 5K0-907-044.clb
   Part No SW: 3T0 907 044 CG    HW: 3T0 907 044 CG
   Component: Climatronic   H19 0607
   Revision: 00001008
   Coding: 0010000002
   Shop #: WSC 33361 790 00060
   ASAM Dataset: EV_Climatronic A01010
   ROD: EV_ClimaAutoBasis_SK46.rod
   VCID: 79AE1994795AA8FF8D7-802C

No fault code found.

-------------------------------------------------------------------------------
Address 09: Cent. Elect. (J519)       Labels:. 1K0-937-08x-09.clb
   Part No SW: 1K0 937 087 AN    HW: 1K0 937 087 AN
   Component: BCM PQ35  H+  112 0771
   Revision: AF112771
   Coding: 40190ABBE80508C0400800C0710089EC4B7100AE776DADF080814004A040
   Shop #: WSC 12345 123 61029
   VCID: 7DA60D846DF294DFA1F-8028

   Subsystem 1 - Part No: 3T1 955 119 B  Labels: 1KX-955-119.CLB
   Component: Wischer 28081  26  0700
   Coding: 00D7B7

   Subsystem 2 - Part No: 1K0 955 559 AH  Labels: 1K0-955-559-AG.CLB
   Component: RLS 280813 05  54  0403
   Coding: 0630ED

2 Faults Found:
00077 - Windshield Wiper Stop Switch (F229)
            008 - Implausible Signal
             Freeze Frame:
                    Fault Status: 01101000
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 130
                    Mileage: 122648 km
                    Time Indication: 0
                    Date: 2019.07.30
                    Time: 21:27:06

             Freeze Frame:
                        Term 15 On
                    Voltage: 11.70 V
                        ON
                        ON
                        Term 50 Off
                        OFF
                        OFF

01753 - Windshield Wiper Motor (V) Stage 1
            009 - Open or Short to Ground
             Freeze Frame:
                    Fault Status: 01101001
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 130
                    Mileage: 122648 km
                    Time Indication: 0
                    Date: 2019.07.30
                    Time: 21:27:06

             Freeze Frame:
                        Term 15 On
                    Voltage: 11.70 V
                        ON
                        ON
                        Term 50 Off
                        OFF
                        OFF


-------------------------------------------------------------------------------

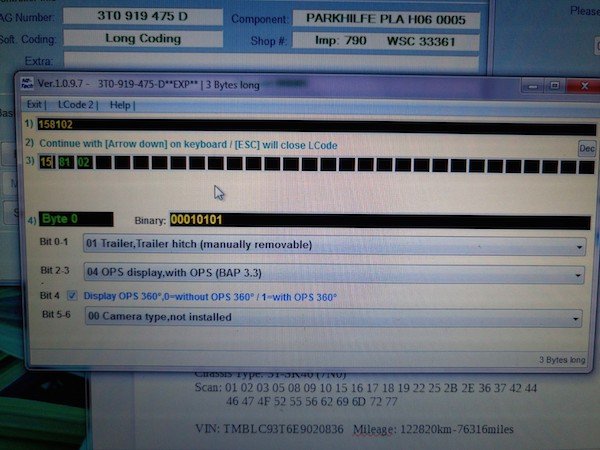

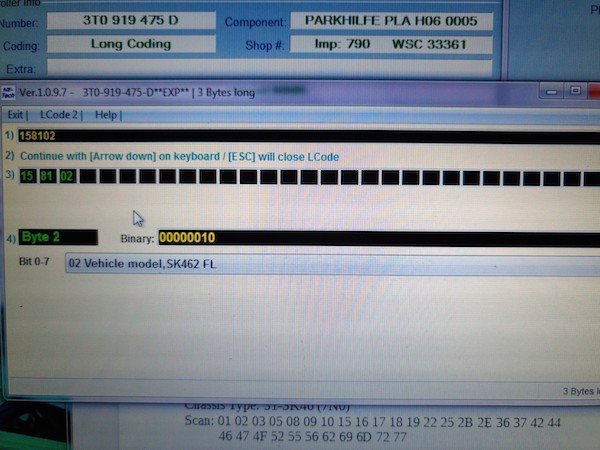

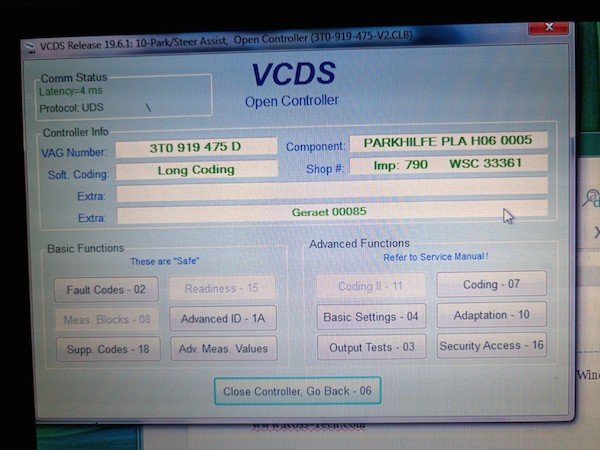

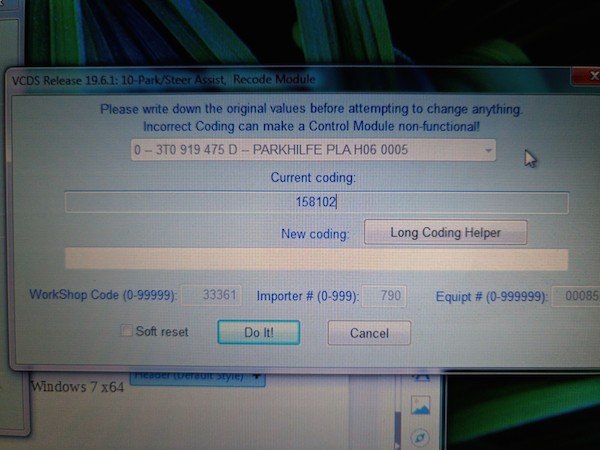

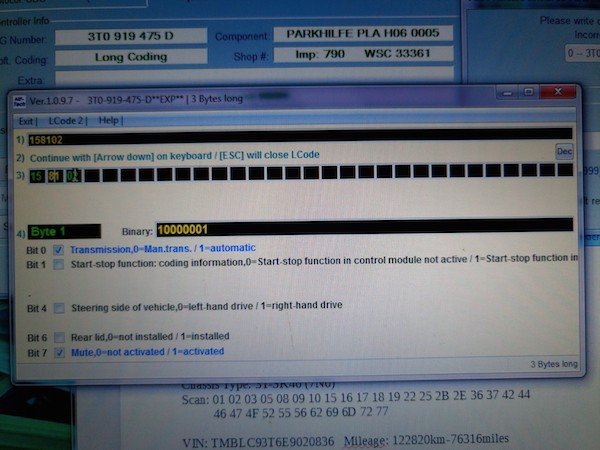

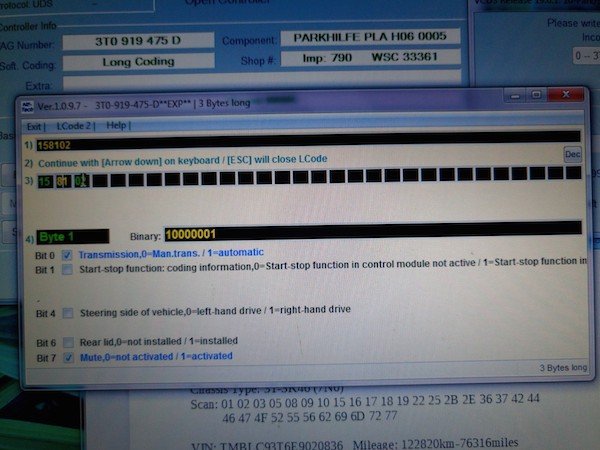

Address 10: Park/Steer Assist (J791)       Labels:| 3T0-919-475-V2.clb
   Part No SW: 3T0 919 475 D    HW: 4H0 919 475 E
   Component: PARKHILFE PLA H06 0005
   Revision: --------    Serial number: 56261323500419
   Coding: 158102
   Shop #: WSC 33361 790 00085
   ASAM Dataset: EV_EPHVA2CAS46X0000 001003
   ROD: EV_EPHVA2CAS46X0000_001.rod
   VCID: 3E24CA8820F44FC7F85-806A

No fault code found.

-------------------------------------------------------------------------------
Address 15: Airbags        Labels: 5N0-959-655.lbl
   Part No SW: 3T0 959 655 D    HW: 3T0 959 655 D
   Component: J234__LDG VW10 HI   2118
   Revision: 24019000    Serial number: 003LEPHD20GP
   Coding: 0017479
   Shop #: WSC 33361 790 00085
   VCID: 42DCBE78588C2B279CD-8016

   Subsystem 1 - Serial number: 6332MTS616852313

   Subsystem 2 - Serial number: 6342MTS617062313

   Subsystem 3 - Serial number: 6351HTS6QTOP7CKJ

   Subsystem 4 - Serial number: 6361HTS6PQIO7CKJ

   Subsystem 5 - Serial number: 63727TS6OHDK6CKJ

   Subsystem 6 - Serial number: 00000000000000000

No fault code found.

-------------------------------------------------------------------------------
Address 16: Steering wheel (J527)       Labels:| 5K0-953-569.clb
   Part No SW: 5K0 953 521 BR    HW: 5K0 953 569 E
   Component: LENKS.MODUL   016 0140
   Revision: FF010042    Serial number: 20130713201618
   Coding: 1012140000
   Shop #: WSC 33361 790 00999
   ASAM Dataset: EV_SMLSNGVOLWSXS A01004
   ROD: EV_SMLSNGVOLWS.rod
   VCID: 7DA60D846D7294DFA1F-8028

   Multifunction steering wheel control module:
   Subsystem 1 - Part No SW: 5E0 919 719 G    HW: 5E0 919 719 G
   Component: E221__MFL-PR6  H04 0120
   Coding: 830000

No fault code found.

-------------------------------------------------------------------------------
Address 17: Instruments (J285)       Labels:| 5K0-920-xxx-17.clb-SRI1
   Part No SW: 3T1 920 841 LX    HW: 3T1 920 841 LX
   Component: KOMBI         H09 0811
   Serial number: 00000000000000
   Coding: 111F01
   Shop #: WSC 31698 001 1048576
   ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04721
   ROD: EV_Kombi_UDS_VDD_RM09_SK46.rod
   VCID: 147048207EF875977E1-8040

No fault code found.

-------------------------------------------------------------------------------
Address 18: Aux. Heat        Labels: 1K0-815-007.clb
   Part No: 5K0 963 272 F
   Component: Standheizer     022 4008
   Revision: 00022000    Serial number: 09029167000000
   Coding: 0021112
   Shop #: WSC 23370 002 1048576
   VCID: 3332EBBC173692AF07B-8066

1 Fault Found:
01406 - No Flame
            000 - - - Intermittent
             Freeze Frame:
                    Fault Status: 00100000
                    Fault Priority: 3
                    Fault Frequency: 1
                    Reset counter: 156
                    Time Indication: 0

             Freeze Frame:
                        Start
                    Temperature: 67.0°C
                    Temperature: -48.0°C


-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533)       Labels:. 7N0-907-530-V2.clb
   Part No SW: 7N0 907 530 AM    HW: 7N0 907 530 AM
   Component: J533  Gateway H55 1642
   Revision:   H55       Serial number: 240813F1000220
   Coding: 359302
   Shop #: WSC 12345 123 61029
   VCID: 7BA2039C73E69AEF9FB-802E

No fault code found.

-------------------------------------------------------------------------------
Address 22: AWD        Labels: 0AY-907-554-V1.clb
   Part No SW: 0BR 907 554 C    HW: 0BR 907 554 C
   Component: Haldex 4Motion      3018
   Coding: 0000005
   Shop #: WSC 00000 000 00000
   VCID: 45D6A56449A21C1FB9F-8010

No fault code found.

-------------------------------------------------------------------------------
Address 25: Immobilizer (J334)       Labels:| 5K0-920-xxx-25.clb
   Part No SW: 5K0 953 234     HW: 5K0 953 234
   Component: IMMO          H09 0811
   Serial number: 00000000000000
   Coding: 000007
   Shop #: WSC 31698 001 1048576
   ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03710
   ROD: EV_Immo_UDS_VDD_RM09.rod
   VCID: 6A8C36D80CFC136774D-803E

No fault code found.

-------------------------------------------------------------------------------
Address 2B: Steer. Col. Lock (J764)       Labels:* 5K0-905-861.clb
   Part No SW: 5K0 905 861 C    HW: 5K0 905 861 C
   Component: ELV-PQ35      H21 0240
   Revision: 00000000    Serial number: 13000175815003
   Coding: 4900000000000000
   Shop #: WSC 33361 790 00999
   ASAM Dataset: EV_ELVMarquMPVW36X A01001
   ROD: EV_ELVMarquMPVW36X.rod
   VCID: 3038E4B0EAA0A9B77A9-8064

No fault code found.

-------------------------------------------------------------------------------
Address 2E: Media Player 3 (J650)       Labels:. 5N0-035-342.lbl
   Part No SW: 5N0 035 342 G    HW: 5N0 035 342 G
   Component: SG EXT.PLAYER H19 0770
   Revision: A1001003    Serial number: 7665414159
   Coding: 010100
   Shop #: WSC 00000 000 00000
   VCID: 2B02F3DCC306CA6F4FB-807E

No fault code found.

-------------------------------------------------------------------------------
Address 36: Seat Mem. Drvr (J810)       Labels: 3C0-959-760.lbl
   Part No SW: 3C8 959 760 E    HW: 3C8 959 760 E
   Component: Sitzmemory    H05 3001
   Revision: 00H05000
   Coding: 00003B
   Shop #: WSC 12336 024 394758
   VCID: 372ADFAC0F4E7E8F3B3-8062

No fault code found.

-------------------------------------------------------------------------------

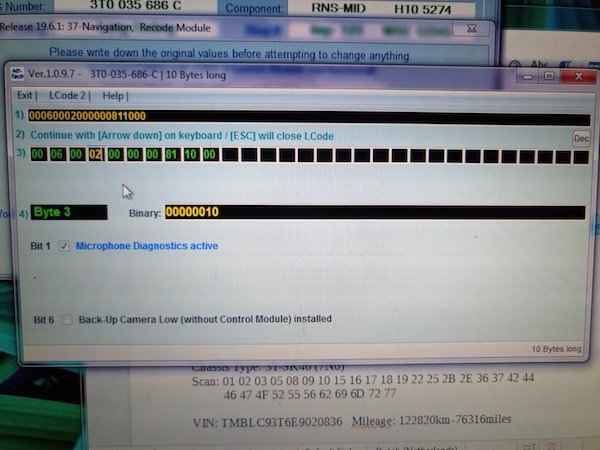

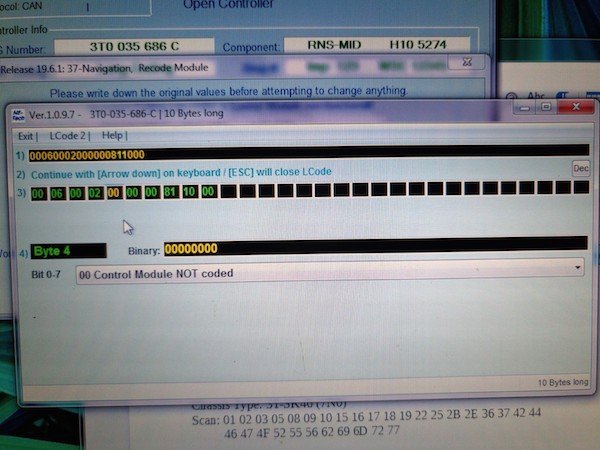

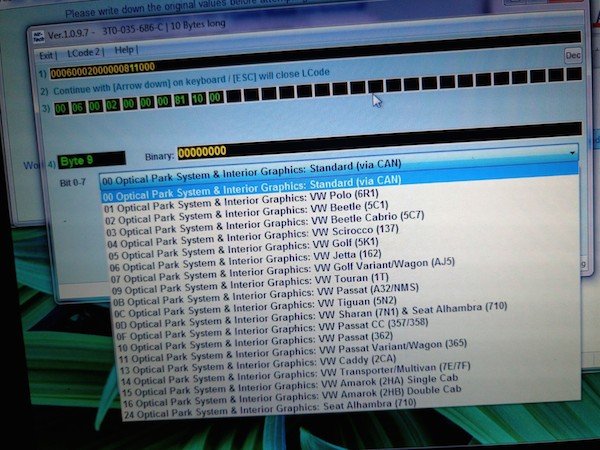

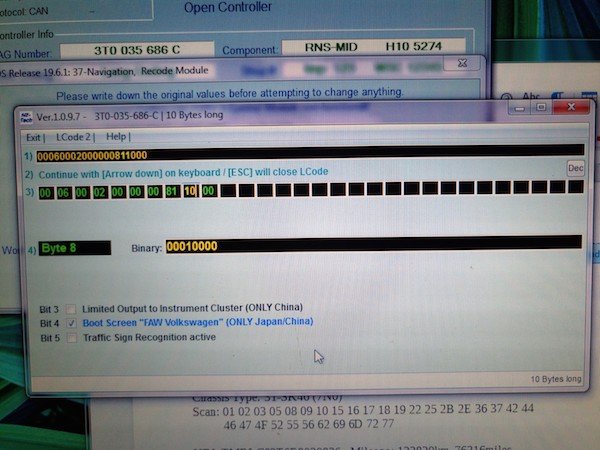

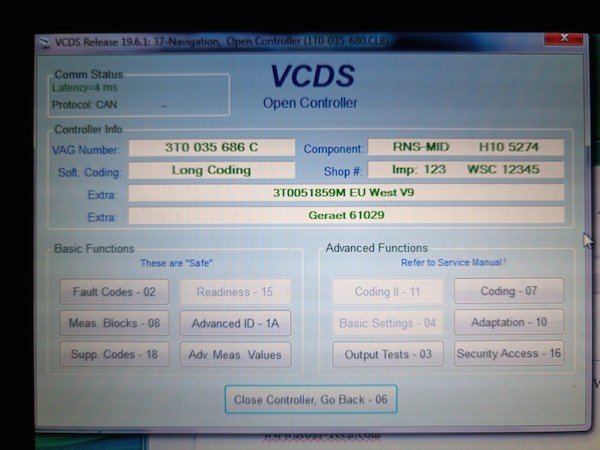

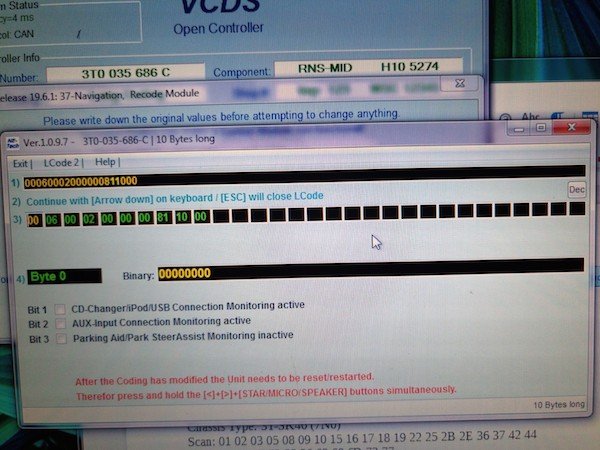

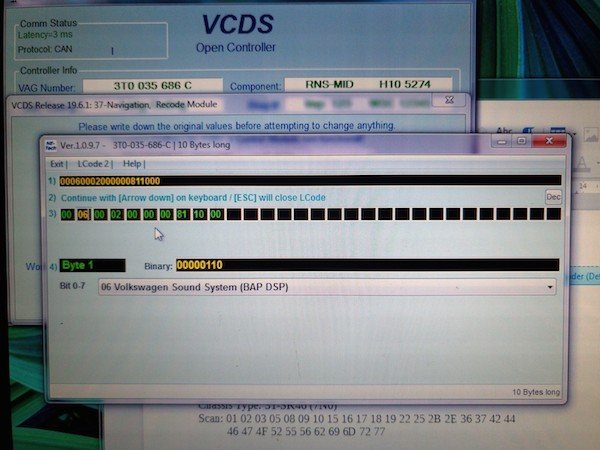

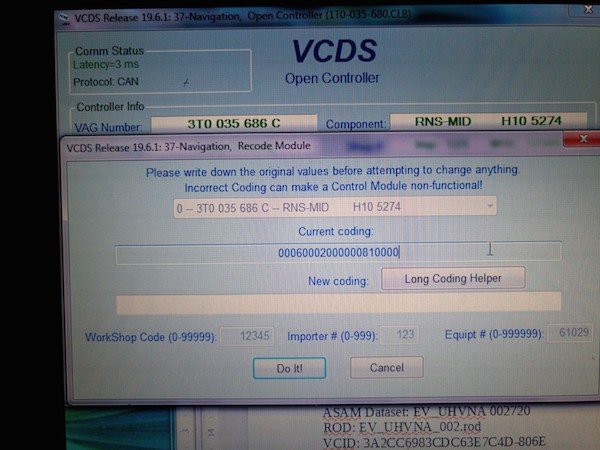

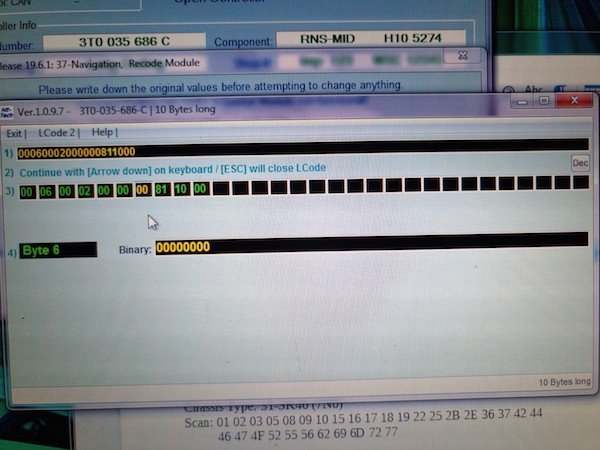

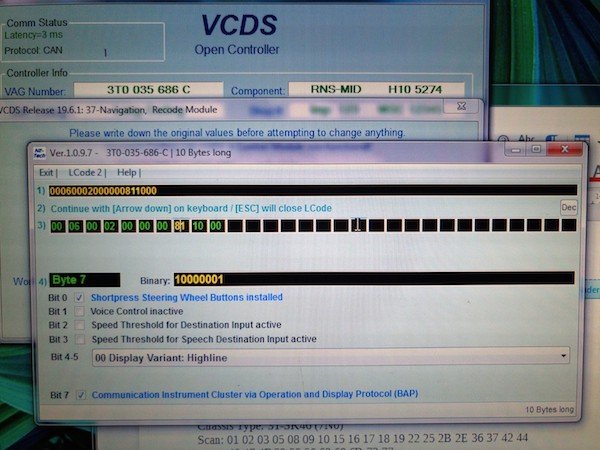

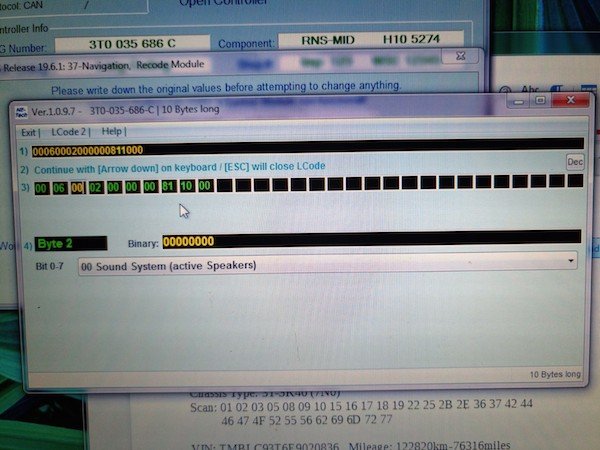

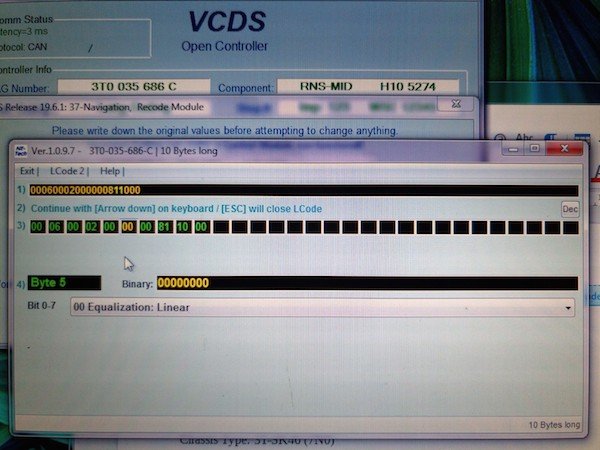

Address 37: Navigation (J0506)       Labels:. 1T0-035-680.clb
   Part No SW: 3T0 035 686 C    HW: 3T0 035 686 C
   Component: RNS-MID       H10 5274
   Revision: AB001001    Serial number: SKZ6Z7N5233097
   Coding: 00060002000000811000
   Shop #: WSC 12345 123 61029
   VCID: 3634D2A808448787205-8062

   Subsystem 1 - Part No: 3T0 051 859 M
   Component: EU West V9  7918

No fault code found.

-------------------------------------------------------------------------------
Address 42: Door Elect, Driver (J386)       Labels:. 8X0-959-793.clb
   Part No SW: 8X0 959 793 H    HW: 8X0 959 793 H
   Component: TSG FA        H10 0415
   Revision: --------    Serial number: --------------
   Coding: 011D0220DE00001000
   Shop #: WSC 33361 790 00999
   VCID: 52FC8E3884ECBBA72CD-8006

No fault code found.

-------------------------------------------------------------------------------
Address 44: Steering Assist        Labels: 1K0-909-14x-GEN3.clb
   Part No: 1K0 909 144 R
   Component: EPS_ZFLS Kl. 197    3501
   Revision: 00H22000
   Shop #: WSC 33361 790 00085
   VCID: 392ED994355A68FFCD7-806C

No fault code found.

-------------------------------------------------------------------------------
Address 47: Sound System (R12)       Labels: 5K0-035-456.clb
   Part No SW: 5C6 035 456 A    HW: 5C6 035 456 A
   Component: KonzernAmp10K H07 6813
   Revision: --------    Serial number: EAA098A0078570
   ASAM Dataset: EV_AudioVerst10KanalBNO1 A01003
   ROD: EV_AudioVerst10KanalBNO1.rod
   VCID: 261402E8D864F707905-8072

No fault code found.

-------------------------------------------------------------------------------
Address 4F: Centr. Electr. II (J520)       Labels:. 1K0-907-532.clb
   Part No SW: 7N0 907 532     HW: 7N0 907 530 AM
   Component: EZE_2         H55 1642
   Revision:   H55       Serial number: 240813F1000220
   Coding: 050B0500
   Shop #: WSC 12345 123 61029
   VCID: 6FBA27CC379EF64F233-803A

   Subsystem 1 - Part No SW: 7N0 959 591 B    HW: 7N0 959 591 B
   Component: J245EE04SKB03  H03 0090
   Serial number: 0123456789ABCDEFGHIJ

   Subsystem 2 - Part No SW: 7N0 959 591 B    HW: 7N0 959 591 B
   Component: J394EE04SKB03  H03 0090
   Serial number: 0123456789ABCDEFGHIJ

No fault code found.

-------------------------------------------------------------------------------
Address 52: Door Elect, Pass. (J387)       Labels:. 8X0-959-792.clb
   Part No SW: 8X0 959 792 H    HW: 8X0 959 792 H
   Component: TSG BF        H10 0415
   Revision: --------    Serial number: --------------
   Coding: 011D0220DE00001000
   Shop #: WSC 33361 790 00999
   VCID: 51FE813481EAC0BF157-8004

No fault code found.

-------------------------------------------------------------------------------
Address 55: Headlight Range (J745)       Labels:. 5M0-907-357-V3.clb
   Part No SW: 5M0 907 357 F    HW: 7L6 907 357 C
   Component: AFS-ECU       H04 0111
   Revision: --------    Serial number: --------------
   Coding: 014A00003F000000
   Shop #: WSC 31698 001 1048576
   ASAM Dataset: EV_HeadlRegulVWAFSPt 002016
   ROD: EV_HeadlRegulVWAFSPt_VW46.rod
   VCID: 372ADFAC0FCE7E8F3B3-8062

   Subsystem 1 - Part No SW: 8U0 941 329     HW: 8U0 941 329   Labels: 3D0-941-329.CLB
   Component: LeiMo links  H01 0003
   Coding: 8E0000

   Subsystem 2 - Part No SW: 8U0 941 329     HW: 8U0 941 329   Labels: 3D0-941-329.CLB
   Component: LeiMo rechts  H01 0003
   Coding: 8E0000

No fault code found.

-------------------------------------------------------------------------------
Address 56: Radio (J0506)       Labels:. 1T0-035-680.clb
   Part No SW: 3T0 035 686 C    HW: 3T0 035 686 C
   Component: RNS-MID       H10 5274
   Revision: AB001001    Serial number: SKZ6Z7N5233097
   Coding: 00060002000000811000
   Shop #: WSC 12345 123 61029
   VCID: 3634D2A808448787205-8062

   Subsystem 1 - Part No: 3T0 051 859 M
   Component: EU West V9  7918

No fault code found.

-------------------------------------------------------------------------------
Address 62: Door, Rear Left (J388)       Labels: None
   Part No SW: 8X0 959 795 D    HW: 8X0 959 795 D
   Component: TSG HL        H07 0415
   Revision: --------    Serial number: --------------
   Coding: 010C00200000001000
   Shop #: WSC 33361 790 00085
   VCID: 50F884308AE0C9B71A9-8004

No fault code found.

-------------------------------------------------------------------------------
Address 69: Trailer (J345)       Labels:. 1K0-907-383-V2.clb
   Part No SW: 1K0 907 383 F    HW: 1K0 907 383 F
   Component: Anhaenger     H09 0100
   Revision: 3A001001    Serial number: 00008030489976
   Coding: 410D000100000000
   Shop #: WSC 33361 790 00085
   VCID: 3038E4B0EA20A9B77A9-8064

No fault code found.

-------------------------------------------------------------------------------
Address 6D: Trunk Elect. (----)       Labels:| 7N0-959-107.clb
   Part No SW: 7N0 959 107 E    HW: 7N0 959 107 A
   Component: HDSG-Modul    H11 0243
   Revision: 41011001    Serial number: 240301001
   Coding: 083301C003
   Shop #: WSC 00874 223 93488
   ASAM Dataset: EV_HDSGSk462 301136
   ROD: EV_HDSGSk462_SK46.rod
   VCID: 392ED99439DA68FFCD7-806C

No fault code found.

-------------------------------------------------------------------------------
Address 72: Door, Rear Right (J389)       Labels: None
   Part No SW: 8X0 959 795 D    HW: 8X0 959 795 D
   Component: TSG HR        H07 0415
   Revision: --------    Serial number: --------------
   Coding: 010C00200000001000
   Shop #: WSC 33361 790 00085
   VCID: 50F884308AE0C9B71A9-8004

No fault code found.

-------------------------------------------------------------------------------
Address 77: Telephone (J412)       Labels:| 7P6-035-730.clb
   Part No SW: 7P6 035 730 K    HW: 7P6 035 730 K
   Component: TELEFON       H15 3200
   Revision: 1B001001    Serial number: 00007665117447
   Coding: 0101000000010110
   Shop #: WSC 33361 790 00999
   ASAM Dataset: EV_UHVNA 002720
   ROD: EV_UHVNA_002.rod
   VCID: 3A2CC6983CDC63E7C4D-806E

No fault code found.

End----(Elapsed Time: 01:49, VBatt start/end: 11.6V/11.6V. VIgn 11.6V)-----

--

I've seen that wiper fault on new cars, is it not just coincidental and you actually have a fault with J400? The limit switch comes up on brand new Rapids and the fix is to replace the motor?

Mind you on those, to get them to work, you need to disconnect J519 with the battery still connected to get them to work again, sounds like your motor is working, just showing a switch fault which is within the motor. Also happens if the wiper frame bushes are starting to seize or iced up wiper blades.

Your battery voltage is too low looking at the log, Don't try making ecu code adjustments with voltage that low, should have a bench power supply.

I would charge your battery for 24 hours to bring it up or you could damage or reduce the battery life.

Edited 30 July, 20196 yr by 3T51704x4

That's got rid of a couple of faults and the wiper now shows up on the scan





I think at this point, I'd try the following:

- charge or take the car for a drive to get the voltage back up

- check the front/rear wipers work in all positions and park properly

- disconnect the battery for a minute or two to 'reset' all the modules

- do a short drive or move the steering from lock to lock and centre it

- clear all the fault codes



See what faults come back and if the OPS now works. I can't see any obvious coding issues that would stop the OPS at this point 😕



Yesterday evening did a short drive (20km) , as it was raining points 1 and 2 were checked :-)



Will check points 3-4 tonight.



I also saw something strange, comparing OBDEleven forums for the Superb 3T

with the first OBDEleven scan output back in May .



In the Forum they quote for navigation system Module 37:

"

OPS Vision Change
Select Control unit 37 (Navigation)
Control unit Long Coding
Byte 6
Values:
2C = Scoda Octavia
2D = Skoda Octavia Kombi
2C = Skoda Yeti
2D = Skoda Superb
2E = Skoda Superb Kombi

Read more:  http://forum.obdeleven.com/thread/177/coding-adaptations#ixzz5vF5VE6lM



"



And the long Coding string in May showed:

00060002000000811000

With VCDS the Long coding yesterday was:

00060002000000811000



Thus I am wondering if their documentation is wrong or if Byte 6  not being set at 2D would

explain the mystery.



If this is indeed the case, then there seems to be some bug somewhere in the software which at some point changed

values and committed them to the module.







Given the wipers work, the faults might now be flagged as intermittent with any luck.



I believe when byte 6 is set to 00 it'll ask the car what it thinks it is and use those graphics for OPS. I'd leave it as 00. Feel free to try it, just remember to reset the Columbus after coding changes  by holding <  >  star/mic buttons

4 hours ago, LBLJ said:

Yesterday evening did a short drive (20km) , as it was raining points 1 and 2 were checked 🙂



Will check points 3-4 tonight.



I also saw something strange, comparing OBDEleven forums for the Superb 3T

with the first OBDEleven scan output back in May .



In the Forum they quote for navigation system Module 37:

"

OPS Vision Change
Select Control unit 37 (Navigation)
Control unit Long Coding
Byte 6
Values:
2C = Scoda Octavia
2D = Skoda Octavia Kombi
2C = Skoda Yeti
2D = Skoda Superb
2E = Skoda Superb Kombi

Read more:  http://forum.obdeleven.com/thread/177/coding-adaptations#ixzz5vF5VE6lM



"



And the long Coding string in May showed:

00060002000000811000

With VCDS the Long coding yesterday was:

00060002000000811000



Thus I am wondering if their documentation is wrong or if Byte 6  not being set at 2D would

explain the mystery.



If this is indeed the case, then there seems to be some bug somewhere in the software which at some point changed

values and committed them to the module.







Byte 6 has nothing to do with OPS on the Columbus. Byte 6  relates to the DAB radio frequency and DAB inactive setting. I can see no reason why byte 6 should be relevant, unless you're following instructions for a different make or model of car. Something here doesn't add up.

Edit: Indeed, it doesn't add up, because those instructions relating to Byte 6 are for the RNS310 unit.

Edited 31 July, 20196 yr by Rustynuts

Just goes to show be careful when changing settings, try to stick to Odis or VCDS

I've just read the link provided to the OBD11 forum. It doesn't instill me with much confidence in the product or its support.

Thus tonight the battery was disconnected for 5 minutes.

Time went to zero on the maxidot display

But the radio kept memory of the settings (likely columbus has an in-built battery)



Drove the car a few kilometres so that it could learn about itself (side mirrors would not fold, power window would not work when

long pressing the unlock button, .... )

Performed a scan, no errors reported .... but still no OPS display.



As for the software, I stick to VCDS, did use OBD11 in order to get started and __NOT__WASTE_TIME__ ==> This proved to be a  huge mistake :-( Lesson learned :-)



See below VCDS dump. That car is a mystery



Saturday,03,August,2019,20:22:36:16291

VCDS -- Windows Based VAG/VAS Emulator Running on Windows 7 x64

VCDS Version: 19.6.1.0 (x64) HEX-V2 CB: 0.4508.4

Data version: 20190529 DS308.0

http://www.Ross-Tech.com





VIN: XXXXXXXX License Plate:





Chassis Type: 3T-SK46 (7N0)

Scan: 01 02 03 05 08 09 10 15 16 17 18 19 22 25 2B 2E 36 37 42 44

46 47 4F 52 55 56 62 69 6D 72 77



VIN: XXXXXXXX  Mileage: 122800km-76304miles



01-Engine -- Status: OK 0000

02-Auto Trans -- Status: OK 0000

03-ABS Brakes -- Status: OK 0000

04-Steering Angle -- Status: OK 0000

05-Acc/Start Auth. -- Status: OK 0000

08-Auto HVAC -- Status: OK 0000

09-Cent. Elect. -- Status: OK 0000

10-Park/Steer Assist -- Status: OK 0000

15-Airbags -- Status: OK 0000

16-Steering wheel -- Status: OK 0000

17-Instruments -- Status: OK 0000

18-Aux. Heat -- Status: OK 0000

19-CAN Gateway -- Status: OK 0000

22-AWD -- Status: OK 0000

25-Immobilizer -- Status: OK 0000

2B-Steer. Col. Lock -- Status: OK 0000

2E-Media Player 3 -- Status: OK 0000

36-Seat Mem. Drvr -- Status: OK 0000

37-Navigation -- Status: OK 0000

42-Door Elect, Driver -- Status: OK 0000

44-Steering Assist -- Status: OK 0000

46-Central Conv. -- Status: OK 0000

47-Sound System -- Status: OK 0000

4F-Centr. Electr. II -- Status: OK 0000

52-Door Elect, Pass. -- Status: OK 0000

55-Headlight Range -- Status: OK 0000

56-Radio -- Status: OK 0000

62-Door, Rear Left -- Status: OK 0000

69-Trailer -- Status: OK 0000

6D-Trunk Elect. -- Status: OK 0000

72-Door, Rear Right -- Status: OK 0000

77-Telephone -- Status: OK 0000

-------------------------------------------------------------------------------

Address 01: Engine (0-32-CDVA) Labels:. 03H-907-309-V1.clb

Part No SW: 03H 906 023 CF HW: 03H 907 309 C

Component: 3.6 FSI EU5 H04 5770

Revision: MFH04--- Serial number:

Coding: 001D0012242600000000

Shop #: WSC 33361 790 00060

ASAM Dataset: EV_ECM36FSI01103H906023CF 001002

ROD: EV_ECM36FSI01103H906023CF.rod

VCID: 68884CD012F02177629-803C



No fault code found.

Readiness: 0000 0000



-------------------------------------------------------------------------------

Address 02: Auto Trans Labels: 02E-927-770.clb

Part No SW: 02E 300 016 A HW: 02E 927 770 AL

Component: GSG DSG AG6 521 4002

Revision: 05652104 Serial number: 00001307251298

Coding: 0000020

Shop #: WSC 33361 790 00085

VCID: 127C4E38486C7BA76CD-8046



No fault code found.



-------------------------------------------------------------------------------

Address 03: ABS Brakes (J104) Labels:. 1K0-907-379-60EC1F.clb

Part No SW: 1K0 907 379 BL HW: 1K0 907 379 BL

Component: ESP MK60EC1 H31 0152

Revision: 00H31001

Coding: 843DA016192400FA211305E7981F0041350950

Shop #: WSC 12345 123 61029

VCID: 7DA60D846DF294DFA1F-8028



No fault code found.



-------------------------------------------------------------------------------

Address 05: Acc/Start Auth. (J518) Labels:| 5K0-959-434.clb

Part No SW: 5K0 959 434 B HW: 5K0 959 434

Component: VWKESSYPQ35GP 086 1101

Revision: 00086000 Serial number: 0194240129

Coding: 030C0C

Shop #: WSC 33361 790 00085

ASAM Dataset: EV_KESSYPQ35G A02013

ROD: EV_KESSYPQ35G_A02_SK46.rod

VCID: 3430E8A01EB895971E1-8060



No fault code found.



-------------------------------------------------------------------------------

Address 08: Auto HVAC (J255) Labels:| 5K0-907-044.clb

Part No SW: 3T0 907 044 CG HW: 3T0 907 044 CG

Component: Climatronic H19 0607

Revision: 00001008

Coding: 0010000002

Shop #: WSC 33361 790 00060

ASAM Dataset: EV_Climatronic A01010

ROD: EV_ClimaAutoBasis_SK46.rod

VCID: 79AE1994795AA8FF8D7-802C



No fault code found.



-------------------------------------------------------------------------------

Address 09: Cent. Elect. (J519) Labels:. 1K0-937-08x-09.clb

Part No SW: 1K0 937 087 AN HW: 1K0 937 087 AN

Component: BCM PQ35 H+ 112 0771

Revision: AF112771

Coding: 40190ABBE80508C0400800C0710089EC4B7100AE776DADF080814004A040

Shop #: WSC 12345 123 61029

VCID: 7DA60D846DF294DFA1F-8028



Subsystem 1 - Part No: 3T1 955 119 B Labels: 1KX-955-119.CLB

Component: Wischer 28081 26 0700

Coding: 00D7B7



Subsystem 2 - Part No: 1K0 955 559 AH Labels: 1K0-955-559-AG.CLB

Component: RLS 280813 05 54 0403

Coding: 0630ED



No fault code found.



-------------------------------------------------------------------------------

Address 10: Park/Steer Assist (J791) Labels:| 3T0-919-475-V2.clb

Part No SW: 3T0 919 475 D HW: 4H0 919 475 E

Component: PARKHILFE PLA H06 0005

Revision: -------- Serial number: 56261323500419

Coding: 158102

Shop #: WSC 33361 790 00085

ASAM Dataset: EV_EPHVA2CAS46X0000 001003

ROD: EV_EPHVA2CAS46X0000_001.rod

VCID: 3E24CA8820F44FC7F85-806A



No fault code found.



-------------------------------------------------------------------------------

Address 15: Airbags Labels: 5N0-959-655.lbl

Part No SW: 3T0 959 655 D HW: 3T0 959 655 D

Component: J234__LDG VW10 HI 2118

Revision: 24019000 Serial number: 003LEPHD20GP

Coding: 0017479

Shop #: WSC 33361 790 00085

VCID: 42DCBE78588C2B279CD-8016



Subsystem 1 - Serial number: 6332MTS616852313



Subsystem 2 - Serial number: 6342MTS617062313



Subsystem 3 - Serial number: 6351HTS6QTOP7CKJ



Subsystem 4 - Serial number: 6361HTS6PQIO7CKJ



Subsystem 5 - Serial number: 63727TS6OHDK6CKJ



Subsystem 6 - Serial number: 00000000000000000



No fault code found.



-------------------------------------------------------------------------------

Address 16: Steering wheel (J527) Labels:| 5K0-953-569.clb

Part No SW: 5K0 953 521 BR HW: 5K0 953 569 E

Component: LENKS.MODUL 016 0140

Revision: FF010042 Serial number: 20130713201618

Coding: 1012140000

Shop #: WSC 33361 790 00999

ASAM Dataset: EV_SMLSNGVOLWSXS A01004

ROD: EV_SMLSNGVOLWS.rod

VCID: 7DA60D846D7294DFA1F-8028



Multifunction steering wheel control module:

Subsystem 1 - Part No SW: 5E0 919 719 G HW: 5E0 919 719 G

Component: E221__MFL-PR6 H04 0120

Coding: 830000



No fault code found.



-------------------------------------------------------------------------------

Address 17: Instruments (J285) Labels:| 5K0-920-xxx-17.clb-SRI1

Part No SW: 3T1 920 841 LX HW: 3T1 920 841 LX

Component: KOMBI H09 0811

Serial number: 00000000000000

Coding: 111F01

Shop #: WSC 31698 001 1048576

ASAM Dataset: EV_Kombi_UDS_VDD_RM09 A04721

ROD: EV_Kombi_UDS_VDD_RM09_SK46.rod

VCID: 147048207EF875977E1-8040



No fault code found.



-------------------------------------------------------------------------------

Address 18: Aux. Heat Labels: 1K0-815-007.clb

Part No: 5K0 963 272 F

Component: Standheizer 022 4008

Revision: 00022000 Serial number: 09029167000000

Coding: 0021112

Shop #: WSC 23370 002 1048576

VCID: 3332EBBC173692AF07B-8066



No fault code found.



-------------------------------------------------------------------------------

Address 19: CAN Gateway (J533) Labels:. 7N0-907-530-V2.clb

Part No SW: 7N0 907 530 AM HW: 7N0 907 530 AM

Component: J533 Gateway H55 1642

Revision: H55 Serial number: 240813F1000220

Coding: 359302

Shop #: WSC 12345 123 61029

VCID: 7BA2039C73E69AEF9FB-802E



No fault code found.



-------------------------------------------------------------------------------

Address 22: AWD Labels: 0AY-907-554-V1.clb

Part No SW: 0BR 907 554 C HW: 0BR 907 554 C

Component: Haldex 4Motion 3018

Coding: 0000005

Shop #: WSC 00000 000 00000

VCID: 45D6A56449A21C1FB9F-8010



No fault code found.



-------------------------------------------------------------------------------

Address 25: Immobilizer (J334) Labels:| 5K0-920-xxx-25.clb

Part No SW: 5K0 953 234 HW: 5K0 953 234

Component: IMMO H09 0811

Serial number: 00000000000000

Coding: 000007

Shop #: WSC 31698 001 1048576

ASAM Dataset: EV_Immo_UDS_VDD_RM09 A03710

ROD: EV_Immo_UDS_VDD_RM09.rod

VCID: 6A8C36D80CFC136774D-803E



No fault code found.



-------------------------------------------------------------------------------

Address 2B: Steer. Col. Lock (J764) Labels:* 5K0-905-861.clb

Part No SW: 5K0 905 861 C HW: 5K0 905 861 C

Component: ELV-PQ35 H21 0240

Revision: 00000000 Serial number: 13000175815003

Coding: 4900000000000000

Shop #: WSC 33361 790 00999

ASAM Dataset: EV_ELVMarquMPVW36X A01001

ROD: EV_ELVMarquMPVW36X.rod

VCID: 3038E4B0EAA0A9B77A9-8064



No fault code found.



-------------------------------------------------------------------------------

Address 2E: Media Player 3 (J650) Labels:. 5N0-035-342.lbl

Part No SW: 5N0 035 342 G HW: 5N0 035 342 G

Component: SG EXT.PLAYER H19 0770

Revision: A1001003 Serial number: 7665414159

Coding: 010100

Shop #: WSC 00000 000 00000

VCID: 2B02F3DCC306CA6F4FB-807E



No fault code found.



-------------------------------------------------------------------------------

Address 36: Seat Mem. Drvr (J810) Labels: 3C0-959-760.lbl

Part No SW: 3C8 959 760 E HW: 3C8 959 760 E

Component: Sitzmemory H05 3001

Revision: 00H05000

Coding: 00003B

Shop #: WSC 12336 024 394758

VCID: 372ADFAC0F4E7E8F3B3-8062



No fault code found.



-------------------------------------------------------------------------------

Address 37: Navigation (J0506) Labels:. 1T0-035-680.clb

Part No SW: 3T0 035 686 C HW: 3T0 035 686 C

Component: RNS-MID H10 5274

Revision: AB001001 Serial number: SKZ6Z7N5233097

Coding: 00060002000000811000

Shop #: WSC 12345 123 61029

VCID: 3634D2A808448787205-8062



Subsystem 1 - Part No: 3T0 051 859 M

Component: EU West V9 7918



No fault code found.



-------------------------------------------------------------------------------

Address 42: Door Elect, Driver (J386) Labels:. 8X0-959-793.clb

Part No SW: 8X0 959 793 H HW: 8X0 959 793 H

Component: TSG FA H10 0415

Revision: -------- Serial number: --------------

Coding: 011D0220DE00001000

Shop #: WSC 33361 790 00999

VCID: 52FC8E3884ECBBA72CD-8006



No fault code found.



-------------------------------------------------------------------------------

Address 44: Steering Assist Labels: 1K0-909-14x-GEN3.clb

Part No: 1K0 909 144 R

Component: EPS_ZFLS Kl. 197 3501

Revision: 00H22000

Shop #: WSC 33361 790 00085

VCID: 392ED994355A68FFCD7-806C



No fault code found.



-------------------------------------------------------------------------------

Address 47: Sound System (R12) Labels: 5K0-035-456.clb

Part No SW: 5C6 035 456 A HW: 5C6 035 456 A

Component: KonzernAmp10K H07 6813

Revision: -------- Serial number: EAA098A0078570

ASAM Dataset: EV_AudioVerst10KanalBNO1 A01003

ROD: EV_AudioVerst10KanalBNO1.rod

VCID: 261402E8D864F707905-8072



No fault code found.



-------------------------------------------------------------------------------

Address 4F: Centr. Electr. II (J520) Labels:. 1K0-907-532.clb

Part No SW: 7N0 907 532 HW: 7N0 907 530 AM

Component: EZE_2 H55 1642

Revision: H55 Serial number: 240813F1000220

Coding: 050B0500

Shop #: WSC 12345 123 61029

VCID: 6FBA27CC379EF64F233-803A



Subsystem 1 - Part No SW: 7N0 959 591 B HW: 7N0 959 591 B

Component: J245EE04SKB03 H03 0090

Serial number: 0123456789ABCDEFGHIJ



Subsystem 2 - Part No SW: 7N0 959 591 B HW: 7N0 959 591 B

Component: J394EE04SKB03 H03 0090

Serial number: 0123456789ABCDEFGHIJ



No fault code found.



-------------------------------------------------------------------------------

Address 52: Door Elect, Pass. (J387) Labels:. 8X0-959-792.clb

Part No SW: 8X0 959 792 H HW: 8X0 959 792 H

Component: TSG BF H10 0415

Revision: -------- Serial number: --------------

Coding: 011D0220DE00001000

Shop #: WSC 33361 790 00999

VCID: 51FE813481EAC0BF157-8004



No fault code found.



-------------------------------------------------------------------------------

Address 55: Headlight Range (J745) Labels:. 5M0-907-357-V3.clb

Part No SW: 5M0 907 357 F HW: 7L6 907 357 C

Component: AFS-ECU H04 0111

Revision: -------- Serial number: --------------

Coding: 014A00003F000000

Shop #: WSC 31698 001 1048576

ASAM Dataset: EV_HeadlRegulVWAFSPt 002016

ROD: EV_HeadlRegulVWAFSPt_VW46.rod

VCID: 372ADFAC0FCE7E8F3B3-8062



Subsystem 1 - Part No SW: 8U0 941 329 HW: 8U0 941 329 Labels: 3D0-941-329.CLB

Component: LeiMo links H01 0003

Coding: 8E0000



Subsystem 2 - Part No SW: 8U0 941 329 HW: 8U0 941 329 Labels: 3D0-941-329.CLB

Component: LeiMo rechts H01 0003

Coding: 8E0000



No fault code found.



-------------------------------------------------------------------------------

Address 56: Radio (J0506) Labels:. 1T0-035-680.clb

Part No SW: 3T0 035 686 C HW: 3T0 035 686 C

Component: RNS-MID H10 5274

Revision: AB001001 Serial number: SKZ6Z7N5233097

Coding: 00060002000000811000

Shop #: WSC 12345 123 61029

VCID: 3634D2A808448787205-8062



Subsystem 1 - Part No: 3T0 051 859 M

Component: EU West V9 7918



No fault code found.



-------------------------------------------------------------------------------

Address 62: Door, Rear Left (J388) Labels: None

Part No SW: 8X0 959 795 D HW: 8X0 959 795 D

Component: TSG HL H07 0415

Revision: -------- Serial number: --------------

Coding: 010C00200000001000

Shop #: WSC 33361 790 00085

VCID: 50F884308AE0C9B71A9-8004



No fault code found.



-------------------------------------------------------------------------------

Address 69: Trailer (J345) Labels:. 1K0-907-383-V2.clb

Part No SW: 1K0 907 383 F HW: 1K0 907 383 F

Component: Anhaenger H09 0100

Revision: 3A001001 Serial number: 00008030489976

Coding: 410D000100000000

Shop #: WSC 33361 790 00085

VCID: 3038E4B0EA20A9B77A9-8064



No fault code found.



-------------------------------------------------------------------------------

Address 6D: Trunk Elect. (----) Labels:| 7N0-959-107.clb

Part No SW: 7N0 959 107 E HW: 7N0 959 107 A

Component: HDSG-Modul H11 0243

Revision: 41011001 Serial number: 240301001

Coding: 083301C003

Shop #: WSC 00874 223 93488

ASAM Dataset: EV_HDSGSk462 301136

ROD: EV_HDSGSk462_SK46.rod

VCID: 392ED99439DA68FFCD7-806C



No fault code found.



-------------------------------------------------------------------------------

Address 72: Door, Rear Right (J389) Labels: None

Part No SW: 8X0 959 795 D HW: 8X0 959 795 D

Component: TSG HR H07 0415

Revision: -------- Serial number: --------------

Coding: 010C00200000001000

Shop #: WSC 33361 790 00085

VCID: 50F884308AE0C9B71A9-8004



No fault code found.



-------------------------------------------------------------------------------

Address 77: Telephone (J412) Labels:| 7P6-035-730.clb

Part No SW: 7P6 035 730 K HW: 7P6 035 730 K

Component: TELEFON H15 3200

Revision: 1B001001 Serial number: 00007665117447

Coding: 0101000000010110

Shop #: WSC 33361 790 00999

ASAM Dataset: EV_UHVNA 002720

ROD: EV_UHVNA_002.rod

VCID: 3A2CC6983CDC63E7C4D-806E



No fault code found.



End----------(Elapsed Time: 01:43, VBatt start/end: 13.8V/13.9V)-----------

Good to see there are no error codes



Columbus doesn't have a battery, any settings are likely to be stored in it's EEPROM. the code is stored by the instrument cluster's EEPROM so it's expected to just work after a battery replacement.



As for the windows/mirrors, they just need to learn the end stops. For each window, press down until it hits the bottom and hold for a few seconds, then hold up until it hits the top and hold for a few seconds. That should sort the one touch up/down and probably the folding mirrors on long press too.



Next questions...

- In 10: Park/Steer Assist, can you grab pictures of each byte so we can check the coding looks sensible?

- In 37: Navigation, byte 8 is 10. Might be worth trying 00 and doing the < > * reset, not that I expect it'll make much difference (boot logo?)



edit:

Have you tried doing a factory reset on the columbus using the on screen options?

Edited 3 August, 20196 yr by langers2k

So, worked on the car yesterday.



Funny thing, or translation error , trying to factory reset the Columbus unit fails.

I got an error message saying "Factory settings not loaded". It is deterministic, tried with engine on or engine off.

Always the same result.



As for the screen captures here they are.

Setting byte 8 to 0 for the navigation system, now I have a beautiful startup screen with the old logo and green color which I tend to prefer to the new one.

In 10, only one thing stokes me, but better ask before than trying to poke around randomly : Byte 0, bits 2 and 3 are set to 10 (if I get the endianess correctly), which is 2 hex or dec.

and from what is described on the drop down it should be 11 which is 3 . Does it need to be set to 3 in order to have the display on the head unit ?



Attached below pictures.







Tonight was working on the car, enabling fog lights as CH/LH as well as emergency rear blinking.

Don't know why, but decided to enable debug on the radio.

Rebooted the radio <>*

Low tire pressure sensor lighted thus drove 2km to the gas station.

Engine stopped the time to inflate the tires.

Engine started, then suddenly display was back as you can see from the picture !!!



What a relief , I can finally see where the obstacles are located :-)



But still is a mystery why OPS disappeared .... then came back.



Problem sovled. But for sure, I won't use  OBD11 ever again, totally lost faith in the product.

Glad it's solved! No idea what caused it though 🙂
