pab567

@alex69 you are on the latest version, others check you PMs.

Download links in PM

@Dahaniel to get SmartLink you need to exchange at least glove box unit and display. Pls share VIN so I can check and share more details.

Download link sent in PM

I sent you download link on PM

Download link sent on PM

Of course there is SD slot, it is located inside the glove box. Look into your car manual. Basically do not use USB but SD and follow the procedure: 1. format SD (max 32GB) under FAT32 2. unpack to root (metainfo2.txt and all the folders must be placed directly on SD, not in any folder) 3. insert SD card into the slot 4. enter Service Menu (long press MENU button)

Download link sent on PM

There is a newer software available for your unit (5274) but unfortunately you will not get any features. If you want new features and more modern look I suggest to swap with MIB STD2 PQ unit.

Download link on PM

You have download link for 6276 on PM. AFter reflashing with 6276 you need to re-install maps.

H10 is not the number I am looking for. If you don't know how to check HW version you have then pls post picture of a label from upper casing. Yes, 6276 is the right SW for your unit

Download link sent on PM

Pls specyify part number and current SW version

Australia is not an issue at all You have Columbus MIB1 part number 5E0035045D, without DAB, without SIM, USB part number 5Q0035726C and unfortunately you have CANTON amplifier. To get OEM navigation and possibility to display OEM maps in Virtual Cluster (Active Info Display) the best option IMHO is Amundsen part numer 5Q0035864C / 565035864. Unfortunately you have to replace CANTON amplifier as well. If you want to have Apple CarPlay supported as well you need to exchange USB port, too. If you are interested pls contact me on PM.

I'm sorry but I don't use toolbox so can't help you more...

I think it's quite easy - very few peaople have time today to ready all the threads, especially if someone opens a new thread instead of posting a message in one of existing threads of the same topic. I can honestly say I react only if somebody pings me like @PetrolDave did. I sent you donwload link on PM.

Usually it's not, with very few exception where same car in year X had old unit (RNS315, RNS510 etc.) and in year Y (Y>X) had already MIB STD2 PQ

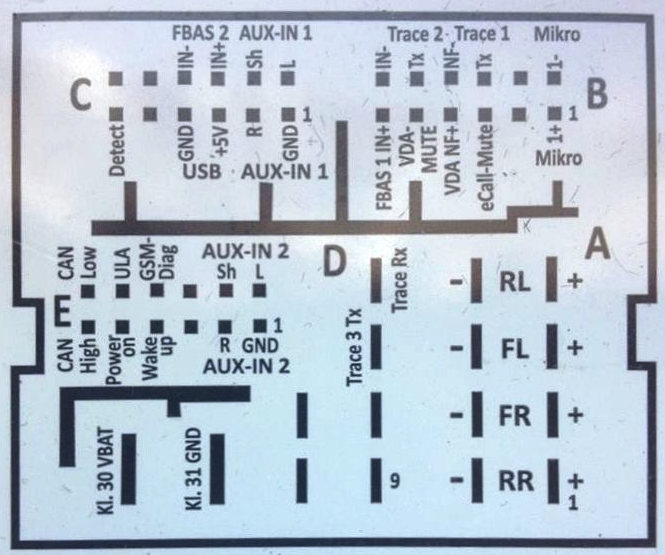

52 pin is used in MIB units, 40 pin is used in RSN series

Old check your PMs. @oldjohn ghost screen is 99% HW issue, digitizer to be replaced.

Link for MST2_EU_SK_ZR_P0253T on PM

Just adjusting both coding and adaptations.

Change adaptation channel "WiFi_Client_HMI" to "On". Make sure NAD module is turned on in coding (I think byte 15, bit 3, but not 100% sure).

I can try... @magiel pls post VCDS adaptation channels map or OBD Eleven backup from 5GF unit with coding and adaptations.
