21 minutes ago, Tezaman said:

I retrofitted a A5 Front camera , and recently i calibrate it  successfully ,



High Beam Assist is working wonderfully

Traffic Sign Assit Working wonderfully

Lane assist is not , "Currently unavailable"



If you made a Retrofit, how did you code the A5 Control Unit?



I suppose you've followed some coding process for the Lane Assist, right?
which has it been?

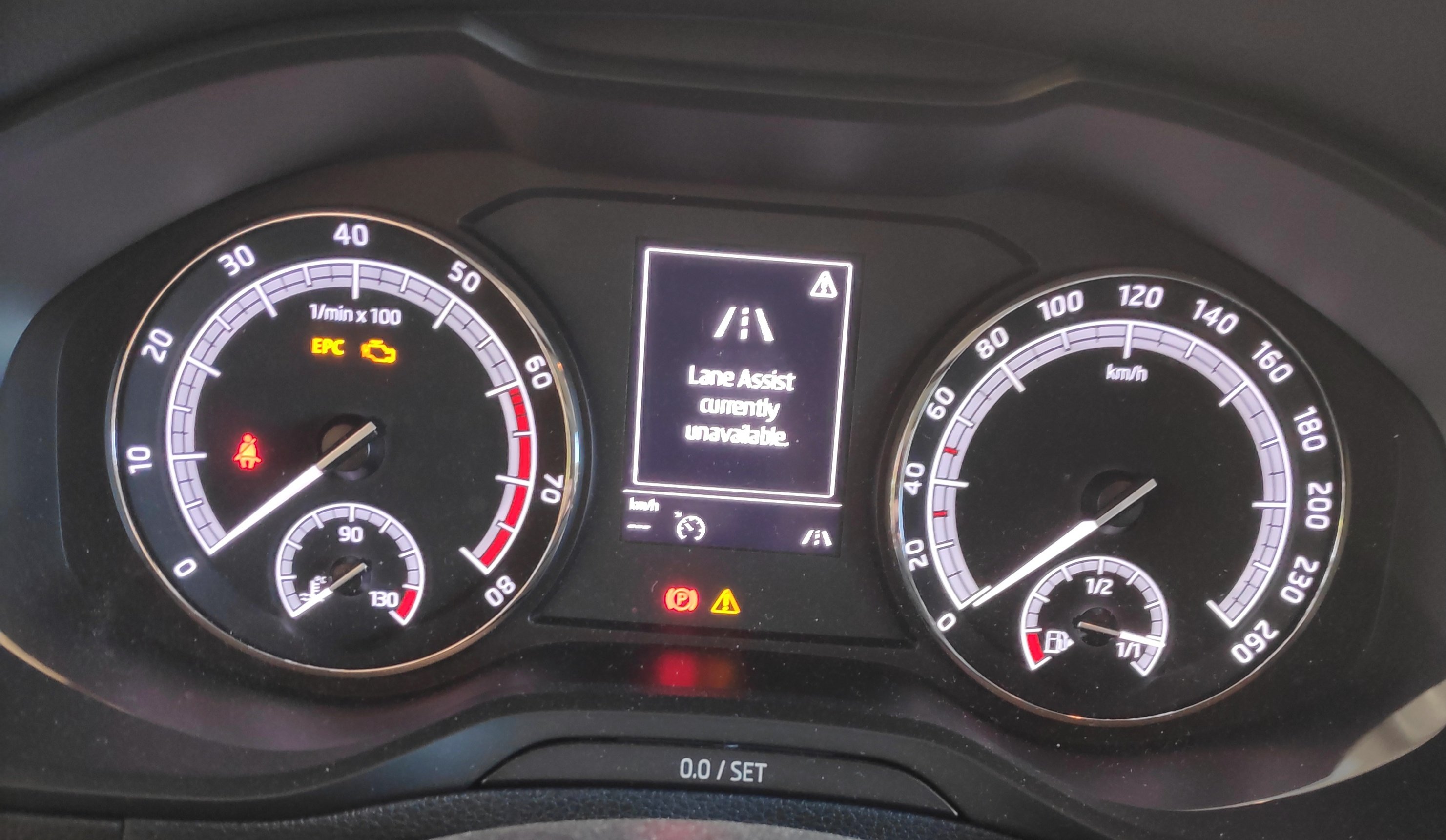

What message does it appear when it does not work?



ps: Do you have Park Assistant?

Edited 9 May, 2019 by Crapula

[Tezaman]

14 hours ago, Crapula said:

If you made a Retrofit, how did you code the A5 Control Unit?



I suppose you've followed some coding process for the Lane Assist, right?
which has it been?



What message does it appear when it does not work?



ps: Do you have Park Assistant?



For the lane assist i followed this

1. Go to  form 17 , dashboard
2. Enter the  extended encoding
3. Access that byte mode
4. In  byte 4 , activate bit 6
5. In  byte 11 , activate bit 1
6. Confirm with Visa, code 25327
7. We went to the Modules menu.
8. -
9. Switch to the  A5 module , front assistance system for the front sensors
10. Enter the  extended encoding
11. Access that byte mode
12. In  byte 16 , activate bit 7
13. Confirmation with the visa.
14. Return to Module A5 menu
15. Enter the  security code
16. Enter the code 20103
17. Insert  adaptations
18. In  BAP Customization , switch from "On" to "Off"
19. Let's return to the adaptations.
20. In  warning intensity.  Lane change assistant: change from "Medium" to "Selection through menu"
21. In  Personaliz.  time of  the interval with terminal 15 on:, check that "Last adjustment" is marked
22. We went to the Modules menu.
23. -

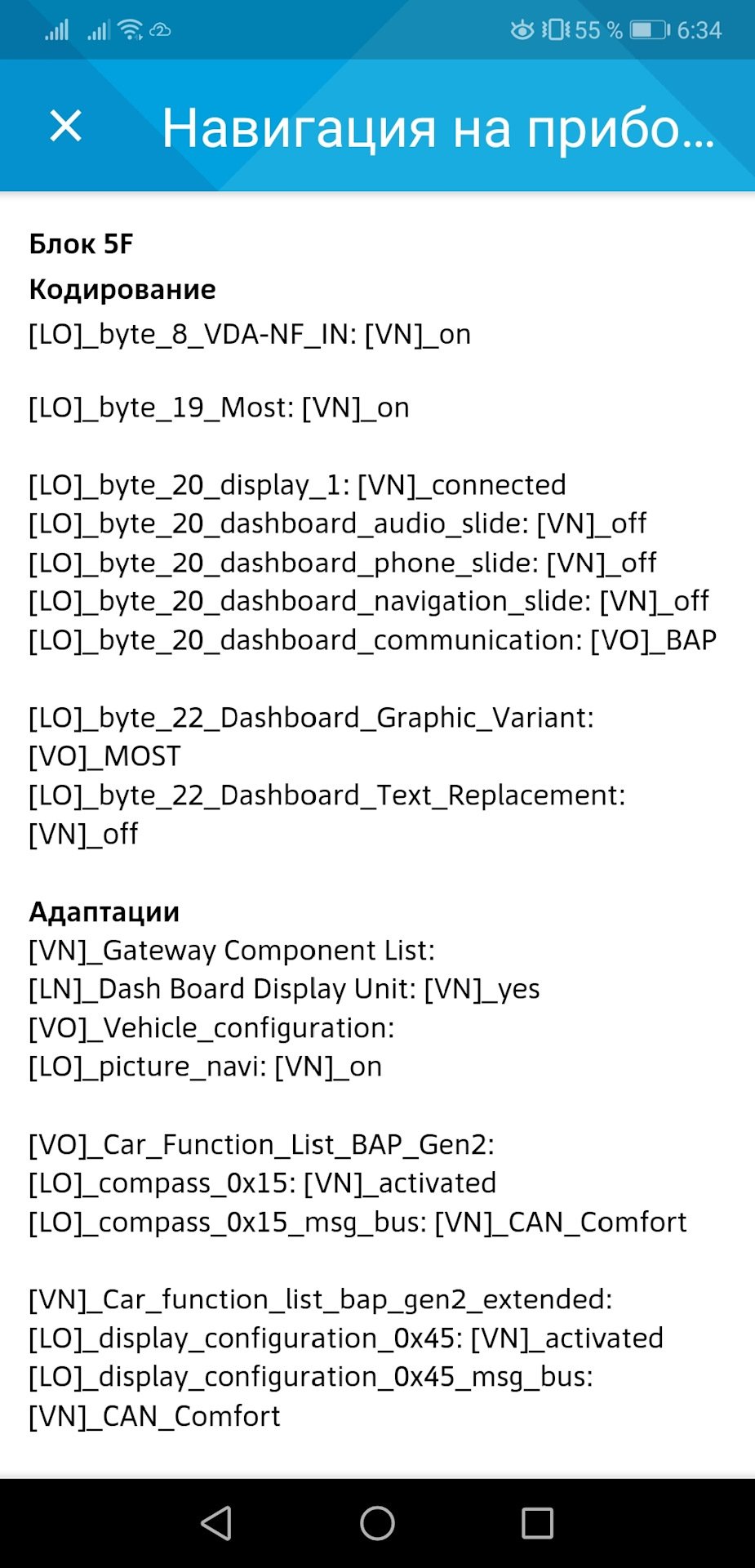

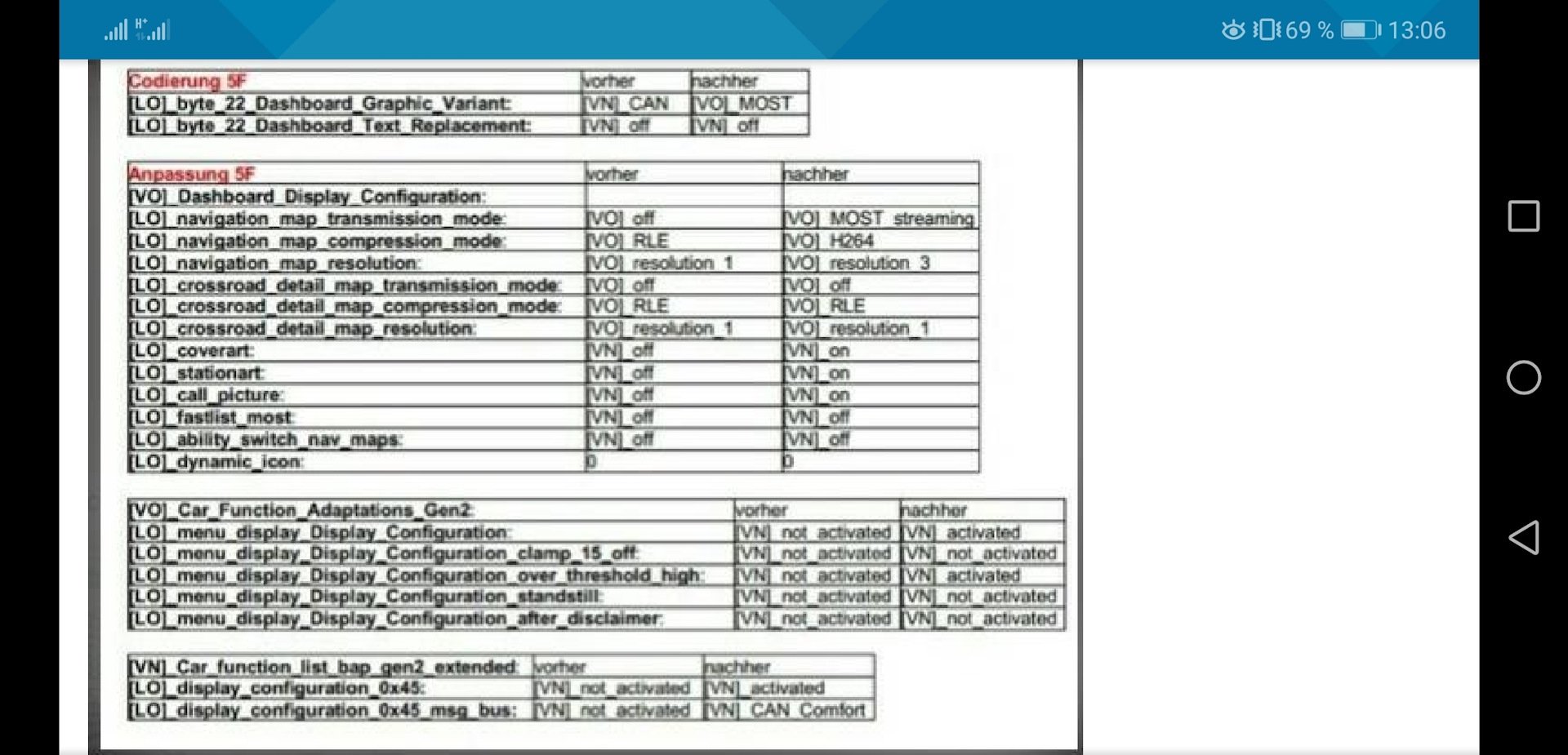

24. Go to  form 5F Electronic information.
25. Insert  adaptations
26. Vai a Car_Function_List_BAP_Gen2 :
27. In LDW_HCA_0x19 :, cambia da "Off" a "On"
28. Confirmation with the visa.
29. Back to  Adaptations
30. Vai a Car_Function_Adaptations_Gen2:
31. In menu_display_Lane_Departure_Warning :, cambia da "Off" a "On"
32. Confirm with Visa
33. In menu_display_Lane_Departure_Warning_over_threshold_high :, cambia da "Off" a "On"
34. Confirm with Visa
35. We went to the Modules menu.
36. -
37. Switch to the  44 Power steering module .
38. Enter the  extended encoding
39. Access that byte mode
40. In  byte 3 , activate bit 0
41. Confirm with visa, code 19249
42. We departed
43. ---
44. Restart Infotainment by pressing the ignition wheel for 20 seconds
45. Activate in the menu Auto / Assistants to the Lane Assist

ATTACHMENT: It appears that some cases have been reported in which the following message appeared at the end of the trial: "LANE ASSISTANCE NOT AVAILABLE AT THIS TIME in Maxidot".

Coincides that this happened with a partner who equipped  Park Assist . Even if I'm not 100% sure it's the cause, it could be. In this case, the solution was provided by making a further step in the coding, which is as follows:





46. Go to  form 75 Parking assistance. 47. Enter extended encoding48. Access mode 49 bytes. Byte 3 , activate bit 5












The error that i got is , i have a Checkbox item for lane assist in maxi dot , when i enabling it , i get this



Maybe the dynamic Calibration is not good,i have to see the values from obd

BUT HBA and Traffic sign recognision works perfectly.

Something else that i want to note is the 44 Power steering module .  when i entered longcode helper for the 44 module , there was an warning poped that saying i will have no longcode help , so i dint have any info displayed for every bit , i just followed the instruction and into  Byte 3 , checked activate bit 5.

No errors also for the 44 module ,



In A5 camera there is a

Fault Found:
2621440 - Databus
          U1121 00 [009] - Missing Message







Edited 10 May, 2019 by Tezaman

[Tezaman]

Any help will be appreciated



the only thing i didnt connect hardware wise was the fusion CAN of the Camera to the Front assist radar,  i dont have ACC ,

Edited 10 May, 2019 by Tezaman

[Crapula]

1 hour ago, Tezaman said:



Para la asistencia de carril seguí esto

1. Ir al   formulario 17  , tablero de mandos.
2. Introduzca la   codificación extendida
3. Accede a ese modo de byte
4. En el   byte 4  , active el  bit 6.
5. En el   byte 11  , active el  bit 1.
6. Confirmar  con Visa, codigo 25327
7. Fuimos al menú de módulos.
8. -
9. Cambie al   módulo A5  , sistema de asistencia frontal para los sensores delanteros.
10. Introduzca la   codificación extendida
11. Accede a ese modo de byte
12. En el   byte 16  , active el  bit 7.
13. Confirmación  con la visa.
14. Regresar al menú del Módulo A5.
15. Ingrese el   código de seguridad
16. Introduce el código 20103
17. Insertar   adaptaciones
18. En la   personalización BAP  , cambie de "On" a "Off"
19. Volvamos a las adaptaciones.
20. En   intensidad de alerta.  Asistente de cambio de carril: cambie  de "Medio" a "Selección a través del menú"
21. En   personaliz.  momento de   la  intervalo  con el terminal 15 en :,  compruebe que "último ajuste" está marcado
22. Fuimos al menú de módulos.
23. -
24. Ir al   formulario 5F  Información electrónica.
25. Insertar   adaptaciones
26. Vai a  Car_Function_List_BAP_Gen2  :
27. En  LDW_HCA_0x19:,  cambia da "Off" a "On"
28. Confirmación  con la visa.
29. Volver a   Adaptaciones
30. Vai a  Car_Function_Adaptations_Gen2:
31. En  menu_display_Lane_Departure_Warning:,  cambia da "Off" a "On"
32. Confirmar  con Visa
33. En  menu_display_Lane_Departure_Warning_over_threshold_high:,  cambia da "Off" a "On"
34. Confirmar  con Visa
35. Fuimos al menú de módulos.
36. -
37. Cambie al   módulo de  dirección asistida  44  .
38. Introduzca la   codificación extendida
39. Accede a ese modo de byte
40. En el   byte 3  , active el  bit 0.
41. Confirmar  con visa, cod. 19249
42. Nos fuimos
43. ---
44. Reinicie Infotainment presionando la rueda de encendido durante 20 segundos
45. Activar en el menú Auto / Asistentes a la Asistencia de Carril.

ADJUNTO: Parece que se han notificado algunos casos en los que apareció el siguiente mensaje al final de la prueba: "LA ASISTENCIA DE CARRIL NO ESTÁ DISPONIBLE EN ESTE MOMENTO en Maxidot".

Coincide en que esto sucedió con un compañero que equipó a   Park Assist  . Incluso si no estoy 100% seguro de que sea la causa, podría serlo. En este caso, la solución se proporcionó realizando un paso más en la codificación, que es el siguiente:





46. Pasar al   formulario 75  Asistencia de aparcamiento. 47. Ingrese la  codificación extendida 48. Modo de acceso  49  bytes. Byte 3  , activar  bit 5












El error que recibí es que tengo un elemento de casilla de verificación para la asistencia de carril en el punto máximo, cuando lo habilito, obtengo esto.



Tal vez la calibración dinámica no es buena, tengo que ver los valores de obd

PERO HBA y el reconocimiento de señales de tráfico funciona perfectamente.

Otra cosa que quiero mencionar es el  módulo de  dirección asistida  44  . cuando ingresé el helper de longcode para el módulo 44, apareció una advertencia que decía que no recibiría ayuda de longcode, por lo que no se muestra ninguna información para cada bit, simplemente seguí las instrucciones y en el byte 3  , verifiqué activar el  bit 5.

No hay errores también para el módulo 44,



En la cámara A5 hay un

Fallo encontrado:
2621440 - Databus
          U1121 00 [009] - Mensaje faltante









Too many unknowns.



If you installed the A5 sensor, it may be a calibration problem.

But perhaps without the serial camera, some other component is needed in a higher version, ... like the BCM might need one (Medium Plus - BCM MQBAB M +) or (High - BCM MQBAB H).
What model do you equip?



We do not have experiences with retrofits of the A5 sensor, only with activation with the Traffic Assist as standard.



Another thing, you said "Something else that i want to note is the 44 Power steering module when i entered longcode helper for the 44 module, there was an warning poped that saying i will have no longcode help, so i dint have any info displayed for every bit, i just followed the instruction and into Byte 3, checked activate bit 5. "

But the process indicates "byte 3, activate bit 0" in the "44 Powe r steering module", ... Is it a typing error?



Maybe we could compare the encoding with a Log of yours.

[technics100]

My father in law has just got a Karoq and wants to disable the start stop permanently, is this easily done with VCDS?

[Gizmo]

Yes very easy.

[technics100]

4 minutes ago, Gizmo said:

Yes very easy.



Is there a guide somewhere?

[mega1800]

On 11/02/2019 at 16:39, Tezaman said:



https://www.thingiverse.com/thing:3420703



Good job, I want to install the foot lights too. You have a tutorial with coding and bcm.
Many thanks

[markc1184]

On 29/04/2019 at 09:42, Gabi4 said:

I can't find in the Apps menu of OBDeleven the option to activate the road signs recognition :(. My car has lane assist, acc, front assist, light and rain sensors, the 9.2" infotainment system, so, as I understood in these pages, it has all the necessary elements to activate it and that it's only a matter of coding.

Someone who succeded with OBDEleven, can help me please?



Is lane assist a requirement for road sign recognition? I'm contemplating buying an OBDEleven and would like to add whatever is possible. Our Karoq doesn't have lane recognition though. Also, is the above all done through the short code options in the app or is long code needed?

[Tezaman]

On 10/05/2019 at 11:12, Crapula said:



Too many unknowns.



If you installed the A5 sensor, it may be a calibration problem.

But perhaps without the serial camera, some other component is needed in a higher version, ... like the BCM might need one (Medium Plus - BCM MQBAB M +) or (High - BCM MQBAB H).
 What model do you equip?



We do not have experiences with retrofits of the A5 sensor, only with activation with the Traffic Assist as standard.



Another thing, you said "Something else that i want to note is the 44 Power steering module when i entered longcode helper for the 44 module, there was an warning poped that saying i will have no longcode help, so i dint have any info displayed for every bit, i just followed the instruction and into Byte 3, checked activate bit 5. "

But the process indicates "byte 3, activate bit 0" in the "44 Powe r steering module", ... Is it a typing error?



Maybe we could compare the encoding with a Log of yours.



Yes it was typo Byte3 bit 0



SO My BCM is

Part No SW:5Q0 937 084 CM

Component BCM MQBAB B H36 0253







[Tezaman]

On 10/05/2019 at 22:16, mega1800 said:

Good job, I want to install the foot lights too. You have a tutorial with coding and bcm.
Many thanks

i found a guide for the GOLF7 is exactly the same!

[Tezaman]

22 minutes ago, Tezaman said:



Yes it was typo Byte3 bit 0



SO My BCM is

Part No SW:5Q0 937 084 CM

Component BCM MQBAB B H36 0253









On 10/05/2019 at 11:12, Crapula said:



Too many unknowns.



If you installed the A5 sensor, it may be a calibration problem.

But perhaps without the serial camera, some other component is needed in a higher version, ... like the BCM might need one (Medium Plus - BCM MQBAB M +) or (High - BCM MQBAB H).
What model do you equip?



We do not have experiences with retrofits of the A5 sensor, only with activation with the Traffic Assist as standard.



Another thing, you said "Something else that i want to note is the 44 Power steering module when i entered longcode helper for the 44 module, there was an warning poped that saying i will have no longcode help, so i dint have any info displayed for every bit, i just followed the instruction and into Byte 3, checked activate bit 5. "

But the process indicates "byte 3, activate bit 0" in the "44 Powe r steering module", ... Is it a typing error?



Maybe we could compare the encoding with a Log of yours.





But again the BCM B H M  etc , its more for the pins used , how many pins arae active and you can used them , i doupt that this is the problem because the Road sign rec. and the High beam assist woulnt work , Also non of the retrofit experts has this as "must have" you only need new windshield



I think that is the Dynamic Calibration , Dynamic calib  executes right after the manual calibration of the camera with the board. you have to go into the road and drive some kilometers in order the camera to be calibrated. i ll check the values of it .



Edited 13 May, 2019 by Tezaman

[Tezaman]

The other interest thing to mention is that my A5 camera (i bought her from KUFATEK) when i enter the loing coding the first tab contains the car model , the camera is coded with the VW PASSAT 2018 ,



Address A5: Frt Sens. Drv. Assist (R242) Labels:| 3Q0-980-65X-A5.clb

Part No SW: 3Q0 980 654 H HW: 3Q0 980 654 A

Component: MQB_B_MFK H06 0271

Serial number:x

Coding: 0004080200000401002213458050A10010000E010020

Edited 13 May, 2019 by Tezaman

[Tezaman]

i found codes for skoda karoq with factory lane assist

0004080200000401002213458050A10010000E010020 ---MINE
0203070800000401002213458050A10010000E010020 ---Factory

Edited 13 May, 2019 by Tezaman

[Crapula]

35 minutes ago, Tezaman said:

i found codes for skoda karoq with factory lane assist

0004080200000401002213458050A10010000E010020 ---MINE
0203070800000401002213458050A10010000E010020 ---Factory



Hi @Tezaman



My karoq carries the factory Lane Assist



My A5 coding is (and our differences):



Byte:                     00   01    02   03   04   05   06   07   08   09    10   11   12    13   14   15   16   17   18   19   20   21

Crapula:     '02 03 07 08 00 00 04 01 00 22 13 44 81 50 A9 00 84 00 0E 20 00 20

Tezaman:  '00 04 08 02 00 00 04 01 00 22 13 45 80 50 A1 00 10 00 0E 01 00 20



Byte 00: Value 02

LC, 00.0 ~ 7.00, Manufacturer: Volkswagen
LC, 00.0 ~ 7.01, Manufacturer: Volkswagen_N
LC, 00.0 ~ 7.02, Manufacturer: Skoda
LC, 00.0 ~ 7, 03, Manufacturer: Seat
LC, 00.0 ~ 7.04, Manufacturer: Audi
LC, 00.0 ~ 7.05, Manufacturer: Bentley
LC, 00.0 ~ 7.06, Manufacturer: Lamborghini
LC, 00.0 ~ 7.07, Manufacturer: Bugatti
LC, 00.0 ~ 7.08, Manufacturer: Porshe
LC, 00.0 ~ 7.09, Manufacturer: Quattro
LC, 00.0 ~ 7, FF, Manufacturer: Uncoded



Byte 01: Value 03

LC, 01.0 ~ 7.00, clase: A000
LC, 01.0 ~ 7.01, clase: A00
LC, 01.0 ~ 7.02, clase: A0
LC, 01.0 ~ 7.03, clase: A
LC, 01.0 ~ 7.04, Clase: B
LC, 01.0 ~ 7.05, Clase: C
LC, 01.0 ~ 7.06, Clase: D
LC, 01.0 ~ 7.07, Clase : E
LC, 01.0 ~ 7.08, Clase: E +
LC, 01.0 ~ 7.09, Clase: Other class
LC, 01.0 ~ 7, FF, Clase: Uncoded



Byte 02: Value 07
LC, 02.0 ~ 7.00, Generation: Not coded
LC, 02.0 ~ 7.01, Generation: Generation 1
LC, 02.0 ~ 7.02, Generation: Generation 2
LC, 02.0 ~ 7.03, Generation: Generation 3
LC, 02, 0 ~ 7.04, Generation: Generation 4
LC, 02.0 ~ 7.05, Generation: Generation 5
LC, 02.0 ~ 7.06, Generation: Generation 6
LC, 02.0 ~ 7.07, Generation: Generation 7
LC, 02.0 ~ 7.08, Generation: Generation 8
LC, 02.0 ~ 7.09, Generation: Generation 9



Byte 03: Value 08
LC, 03.0 ~ 7.00, Body type: Sportback
LC, 03.0 ~ 7.01, body type: Sedan
LC, 03.0 ~ 7.02, body type: Wagon
LC, 03.0 ~ 7.03, body type: Hatchback
LC, 03.0 ~ 7.04, body type: Coupe
LC, 03.0 ~ 7.05, body type: cabriolet

LC, 03.0 ~ 7.06, body type: Crossover
LC, 03.0 ~ 7.07, body type: pickup
LC, 03.0 ~ 7, 08, Body type: Minivan
LC, 03.0 ~ 7.09, Body type: Other type
LC, 03.0 ~ 7, FF, Body type: Not coded



Byte 09: Value 22

LC, 09.1 ~ 4.01, Thermal glass

LC, 09.1 ~ 4.02, type of windshield: thermal (green) glass
LC, 09.1 ~ 4.04, windshield type: clear glass
LC, 09.1 ~ 4.06, type of windscreen: Aterial (purple) glass
LC, 09.5, Active - Right traffic
LC, 09.5, Not Active - circulation on the left (England) (Maybe for you)
LC, 09.6, Steering side
LC, 09.7, Steering translation



Byte 11: Value 44

LC 11.0.00, ??? installed/not trailer detector electronics (AAG)
LC, 11.1.01, set lane change assistant (LCA / Side Assist)
LC, 11.2,04, adaptive cruise control obtain (ACC)
LC, 11.3.08, Pedestrian Break
LC, 11.4.10, Blind Spot Detection
LC, 11.5.20, Start stop control
LC, 11.6.40, Rain / light sensor coded
LC, 11.7.80, Windshild heater



Byte 11: Value 81

LC, 12.1.00, Main Unit Not Enabled

LC, 12.1.01, Main Unit Enabled
...
LC, 12.6, Parking assistance installed (PLA)
LC, 12.7.80, Installed stability program (ESP)



Byte 14: Value A9

LC, 14.0 01, Direct CAN interface for ACC radar included

LC, 14.3 08, Perso HC last Setting
LC, 14.5 ~ 7.00, Interception time Body:

Early LC, 14.5 ~ 7.40, Intervention time: Early

Early LC, 14.5 ~ 7.40, Intervention time: Late
LC, 14.5 ~ 7.80, Intervention time: Early (Control via MFA +)
LC, 14.5 ~ 7, A0, Intervention time: Late (Control by MFA +)



Byte 16: Value 84

LC, 16.0, Lane Assist_AGW_output

LC, 16.1, Lane Assist OFF text
LC, 16.2 ~ 3, 04, EA_Variant2
LC, 16.2 ~ 3.08, Emergency assistance: Option 2
LC, 16.4, Recognition of traffic signals enabled (TSR / VZE)

LC, 16.5, STA
LC, 16.6, Headin Control assist Mobility  (HCA)
LC, 16.7, Headin Control assist (HCA / Lane Assistance)



Byte 19: Value 20

LC, 19.0 ~ 3.00, Additional headlights not installed
LC, 19.0 ~ 3.01, Additional headlamps (FLA): halogen
LC, 19.0 ~ 3.02, complementary high beam lamps (FLA): Xenon
LC, 19.0 ~ 3.03, complementary high beam lamps (FLA): LED
LC, 19.0 ~ 3, 04, Additional headlamps (FLA): Laser

LC, 19.4 ~ 7.00, Type of headlamps (FLA): Halogen
LC, 19.4 ~ 7.10, Type of headlamps (FLA): Xenon
LC, 19.4 ~ 7.20, type of headlight (FLA): LED
LC, 19.4 ~ 7.30, type of headlight (FLA): LED with variable light distribution



Regards

[mega1800]

4 hours ago, Tezaman said:

i found a guide for the GOLF7 is exactly the same!

When you have time, if you give it to me, I'll take a look

[Tezaman]

4 hours ago, Crapula said:



Hi @Tezaman



My karoq carries the factory Lane Assist



My A5 coding is (and our differences):



Byte:                     00   01    02   03   04   05   06   07   08   09    10   11   12    13   14   15   16   17   18   19   20   21

Crapula:     '02 03 07 08 00 00 04 01 00 22 13 44 81 50 A9 00 84 00 0E 20 00 20

Tezaman:  '00 04 08 02 00 00 04 01 00 22 13 45 80 50 A1 00 10 00 0E 01 00 20



Byte 00: Value 02

LC, 00.0 ~ 7.00, Manufacturer: Volkswagen
LC, 00.0 ~ 7.01, Manufacturer: Volkswagen_N
LC, 00.0 ~ 7.02, Manufacturer: Skoda
LC, 00.0 ~ 7, 03, Manufacturer: Seat
LC, 00.0 ~ 7.04, Manufacturer: Audi
LC, 00.0 ~ 7.05, Manufacturer: Bentley
LC, 00.0 ~ 7.06, Manufacturer: Lamborghini
LC, 00.0 ~ 7.07, Manufacturer: Bugatti
LC, 00.0 ~ 7.08, Manufacturer: Porshe
LC, 00.0 ~ 7.09, Manufacturer: Quattro
LC, 00.0 ~ 7, FF, Manufacturer: Uncoded



Byte 01: Value 03

LC, 01.0 ~ 7.00, clase: A000
LC, 01.0 ~ 7.01, clase: A00
LC, 01.0 ~ 7.02, clase: A0
LC, 01.0 ~ 7.03, clase: A
LC, 01.0 ~ 7.04, Clase: B
LC, 01.0 ~ 7.05, Clase: C
LC, 01.0 ~ 7.06, Clase: D
LC, 01.0 ~ 7.07, Clase : E
LC, 01.0 ~ 7.08, Clase: E +
LC, 01.0 ~ 7.09, Clase: Other class
LC, 01.0 ~ 7, FF, Clase: Uncoded



Byte 02: Value 07
LC, 02.0 ~ 7.00, Generation: Not coded
LC, 02.0 ~ 7.01, Generation: Generation 1
LC, 02.0 ~ 7.02, Generation: Generation 2
LC, 02.0 ~ 7.03, Generation: Generation 3
LC, 02, 0 ~ 7.04, Generation: Generation 4
LC, 02.0 ~ 7.05, Generation: Generation 5
LC, 02.0 ~ 7.06, Generation: Generation 6
LC, 02.0 ~ 7.07, Generation: Generation 7
LC, 02.0 ~ 7.08, Generation: Generation 8
LC, 02.0 ~ 7.09, Generation: Generation 9



Byte 03: Value 08
LC, 03.0 ~ 7.00, Body type: Sportback
LC, 03.0 ~ 7.01, body type: Sedan
LC, 03.0 ~ 7.02, body type: Wagon
LC, 03.0 ~ 7.03, body type: Hatchback
LC, 03.0 ~ 7.04, body type: Coupe
LC, 03.0 ~ 7.05, body type: cabriolet

LC, 03.0 ~ 7.06, body type: Crossover
LC, 03.0 ~ 7.07, body type: pickup
LC, 03.0 ~ 7, 08, Body type: Minivan
LC, 03.0 ~ 7.09, Body type: Other type
LC, 03.0 ~ 7, FF, Body type: Not coded



Byte 09: Value 22

LC, 09.1 ~ 4.01, Thermal glass

LC, 09.1 ~ 4.02, type of windshield: thermal (green) glass
LC, 09.1 ~ 4.04, windshield type: clear glass
LC, 09.1 ~ 4.06, type of windscreen: Aterial (purple) glass
LC, 09.5, Active - Right traffic
LC, 09.5, Not Active - circulation on the left (England) (Maybe for you)
LC, 09.6, Steering side
LC, 09.7, Steering translation



Byte 11: Value 44

LC 11.0.00, ??? installed/not trailer detector electronics (AAG)
LC, 11.1.01, set lane change assistant (LCA / Side Assist)
LC, 11.2,04, adaptive cruise control obtain (ACC)
LC, 11.3.08, Pedestrian Break
LC, 11.4.10, Blind Spot Detection
LC, 11.5.20, Start stop control
LC, 11.6.40, Rain / light sensor coded
LC, 11.7.80, Windshild heater



Byte 11: Value 81

LC, 12.1.00, Main Unit Not Enabled

LC, 12.1.01, Main Unit Enabled
...
LC, 12.6, Parking assistance installed (PLA)
LC, 12.7.80, Installed stability program (ESP)



Byte 14: Value A9

LC, 14.0 01, Direct CAN interface for ACC radar included

LC, 14.3 08, Perso HC last Setting
LC, 14.5 ~ 7.00, Interception time Body:

Early LC, 14.5 ~ 7.40, Intervention time: Early

Early LC, 14.5 ~ 7.40, Intervention time: Late
LC, 14.5 ~ 7.80, Intervention time: Early (Control via MFA +)
LC, 14.5 ~ 7, A0, Intervention time: Late (Control by MFA +)



Byte 16: Value 84

LC, 16.0, Lane Assist_AGW_output

LC, 16.1, Lane Assist OFF text
LC, 16.2 ~ 3, 04, EA_Variant2
LC, 16.2 ~ 3.08, Emergency assistance: Option 2
LC, 16.4, Recognition of traffic signals enabled (TSR / VZE)

LC, 16.5, STA
LC, 16.6, Headin Control assist Mobility  (HCA)
LC, 16.7, Headin Control assist (HCA / Lane Assistance)



Byte 19: Value 20

LC, 19.0 ~ 3.00, Additional headlights not installed
LC, 19.0 ~ 3.01, Additional headlamps (FLA): halogen
LC, 19.0 ~ 3.02, complementary high beam lamps (FLA): Xenon
LC, 19.0 ~ 3.03, complementary high beam lamps (FLA): LED
LC, 19.0 ~ 3, 04, Additional headlamps (FLA): Laser

LC, 19.4 ~ 7.00, Type of headlamps (FLA): Halogen
LC, 19.4 ~ 7.10, Type of headlamps (FLA): Xenon
LC, 19.4 ~ 7.20, type of headlight (FLA): LED
LC, 19.4 ~ 7.30, type of headlight (FLA): LED with variable light distribution



Regards

WOW thats awsome man THANKS!

i have updates



I changed the Coding for the first 8 digits that corresponds to skoda karoq ,
and the error message , appeard  detailed

0659 - Steering
          C10AC F2 [008] - Lane-Holding Assistance Not Coded
          [New feature! Extended UDS fault detail is only supported by current gen. interfaces]
          Intermittent - Confirmed - Tested Since Memory Clear



i think the problem is on module 44



do you have your coding for module 44 to take a look at the diffs , thanks a tone!



I see the Byte 11: Value 81 , very interesting  i use the LC, 12.1.00, Main Unit Not Enabled ?

Edited 13 May, 2019 by Tezaman

[Crapula]

47 minutes ago, Tezaman said:

WOW eso es impresionante hombre GRACIAS!

tengo actualizaciones



Cambié la codificación de los primeros 8 dígitos que corresponden a skoda karoq,
y el mensaje de error, aparece detallado

0659 - Dirección
          C10AC F2 [008] - Asistencia para mantener el carril no codificada
          [¡Nueva función! El detalle de falla UDS extendido solo es compatible con la generación actual. interfaces]
          Intermitente - Confirmado - Probado desde Borrar memoria



Creo que el problema está en el módulo 44



¿Tiene su código para el módulo 44 para ver las diferencias, gracias un tono?



Veo el  Byte 11: Valor  81  , muy interesante, uso el  LC, 12.1.00, ¿La unidad principal no está habilitada?



Did you reset the MMI?



Of Course: UC44:  01 00 00 11 00 C0 01 10



- Against steering wheel - activated
- Parking assistance system for parking - Inactive
- Slope Compensation - Not activated
- Lane departure warning system - Activated
- Steering wheel steering angle transmitter - Message_sent
- Hybrid traction - Unassembled
- Rampenverhalten bei Motorstopp - slowly
- Driver profile selection - Active
- Electronic stability program - Activated
- Engine start by power steering - activated
- Gierratenabhängige Mittenverschiebung - inactive
- active with motor stop - activated
- Assistance_system_monitor - activated

[Tezaman]

i just made a reset, but nothing yet



Until now my module 44 has



0100001100500010 tezaman
0100001100C00110 crapula



what do you think  about Byte6




This is the latest Camera A5  the previous values was a sample not actual one , down below is the current one

Byte:                     00   01    02   03   04   05   06   07   08   09    10   11   12    13   14   15   16   17   18   19   20   21

                     02 03 07 08 00 00 04 01 00 22 00 44 81 50 A1 00 90 00 0E 01 00 20 Tezaman
                     02 03 07 08 00 00 04 01 00 22 13 44 81 50 A9 00 84 00 0E 20 00 20 crapula

Edited 13 May, 2019 by Tezaman

[Tezaman]

One last thing crapula , can u share the adaptation MAP? to compare , for A5 camera, i think i am very close to solve this

[Crapula]

2 hours ago, Tezaman said:

One last thing crapula , can u share the adaptation MAP? to compare , for A5 camera, i think i am very close to solve this

A5 AdapMap



Adaptations:
        Identification signals traffic mode fusion:
                Fusion of road signs
        Adaptation_tsr:
            Par_country_mode:
                Automatic
            Par_relevance_mode:
                enabled
            Par_country_code_RSR:
                0
            Par_country_code_VZF:
                0
        Deactivate production mode:
                deactivate
        Calibration destination positions:
            Target 1, calibration mark 1, coordinates x:
                2610 mm
            Target 1, calibration mark 1, coordinates and:
                824 mm
            Target 1, calibration mark 1, z coordinates:
                1732 mm
            Target 1, calibration mark 2, coordinates x:
                2600 mm
            Target 1, calibration mark 2, coordinates and:
                -824 mm
            Target 1, calibration mark 2, z coordinates:
                1732 mm
            Target 1, calibration mark 3, coordinates x:
                2600 mm
            Target 1, calibration mark 3, coordinates and:
                825 mm
            Target 1, calibration mark 3, coordinates z:
                1075 mm
            Target 1, calibration mark 4, coordinates x:
                2600 mm
            Target 1, calibration mark 4, coordinates and:
                -825 mm
            Target 1, calibration mark 4, coordinates z:
                1075 mm
        BAP customization:
                Ativado
        Body height edge of the wheel arch:
            Height of the car edge of the housing. of the wheel, of. left:
                766 mm
            Car height edge of the housing. of the wheel, of. der .:
                767 mm
            Height of the car edge of the housing. of the wheel, of. left:
                763 mm
            Height of the car edge of the housing. of the wheel, after. der .:
                767 mm
        Assist Lane departure notice, lim. speed with trailer:
                300 km / h
        standstill_mode:
                not activated
        Warning intensity. Lane change assistant:
                Medium
        Activation and deactivation of all development messages:
            Activation_of_development_messages_reserved:
                not activated
            Activation_of_development_messages_lane:
                not activated
            Activation_of_development_messages_WLA:
                not activated
            Activation_of_development_messages_VZF / TSR:
                not activated
            Activation_of_development_messages_EHR:
                not activated
            Activation_of_development_messages_HCA_lane:
                not activated
            Activation_of_development_messages_HCA_state:
                not activated
            Activation_of_development_messages_internal:
                not activated
        Xcp_interface:
                not activated
        Mask_error_reactions_for_development:
                not activated
        Initial calibration, result:
            Pitch angle:
                -0.268 °
            Yaw angle:
                0.417 °
            Rolling angle:
                -0.028 °
            Camera height:
                1475 mm
        Mode of production:
                deactivate
        Mode for roller test bench, functional:
                not activated
        Customize interv. moment with terminal 15 on:
                Last adjustment
        Distance with the calibration field:
                1500 mm
        Shaft separations:
            Front axle transverse position:
                -0 mm
            Transverse position rear axle:
                0 mm
        Activation status of lane change:
                on (setting by menu)
        Masked_fault_classes:
                255
                255
                255
                255
        WLA_adjustment:
            BrightnessThreshold_active:
                0
            BrightnessThreshold_passive:
                0

[Tezaman]

tons of coding from a stock almost full feature Skoda karoq

just for reference

https://forums.ross-tech.com/showthread.php?12362-2018-Skoda-Karoq-2-0TDI-4x4



[Shahoff]

Hi All.

I need help   Can't get maps working on digital dashboard.

Can anyone with fully working digital dashboard and working maps do the scan of modules 17 and 5F with adaptations ?

[Tezaman]

Does anyone have a file in C:\Ross-Tech\VCDS\Labels

like

5Q0-910-143.*

this is missing from my VCDS

[Shahoff]

Retrofitting of Virtual cockpit (AID) with MOST fibre completed.   Additional coding for MOS fibre to allow maps as well as callers and radio stations icons to be visible on digital dashboard is here:











Edited 29 May, 2019 by Shahoff
