MkI Fabia Fuse Panel Diagram and Table



Additional fuses can be located under the battery cover (if applicable). The owners handbook recommends that these are changed at a Skoda dealership. I think a reputable independant would also work. I don't know what these are for so if somebody does, feel free to PM me with the fuses purpose, location number and fuse Amperage rating.

After checking the MkI Fabia Workshop Manual PDF, these appear to be model/ engine specific





Battery Box Fuses for the 1.9TDi

No. Item Amperes

1 Dynamo 175
2 Interior 110
3 Radiator fan 40
4 ABS/TCS/ESP 40
5 Power steering 50
6 Glow plugs * 50

7 ABS/TCS/ESP 25
8 Radiator fan 30
9 Aircon system 5
10 Engine ctrl unit 15
11 Central ctrl unit 5
12 Automatic gearbox 5



For other engines, CHECK THE OWNERS MANUAL

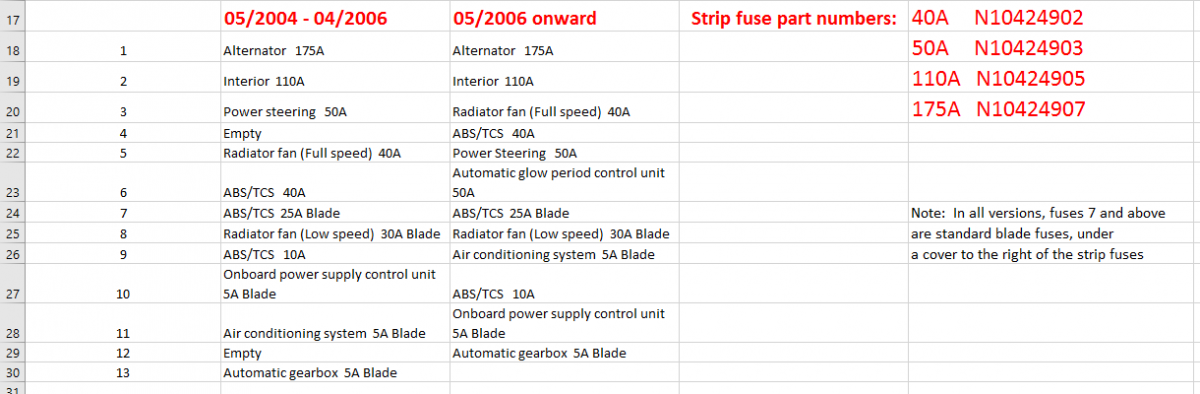

UPDATE:  Many thanks to Wino for compiling this spreadsheet of battery fuses. A gentleman and a scholar

Model year highlighted in red.



Bulbs

Front headlight

Halogen Headlight Dipped Beam  H7

Xenon Headlight Dipped Beam D2S

Main Beam H3

Side Light W5W

Indicator PY21W

Fog Lights H3



Rear Light Cluster

Rear Light P21W

Indicators PY21W

Brake Lights P21W

Tail Light  and Rear Fog Light P21/4W



Others

Side Indicator Lights WY5W

Number Plate Lights C5W

High Level Brake Lights LED

Interior Light C10W

Front Reading Light W5W

Rear Reading Light C5W

Boot Light W5W

Door Warning Light W5W

Glove Box Light C3W
