So managed to find bits of spare time today to have at the rear seats.

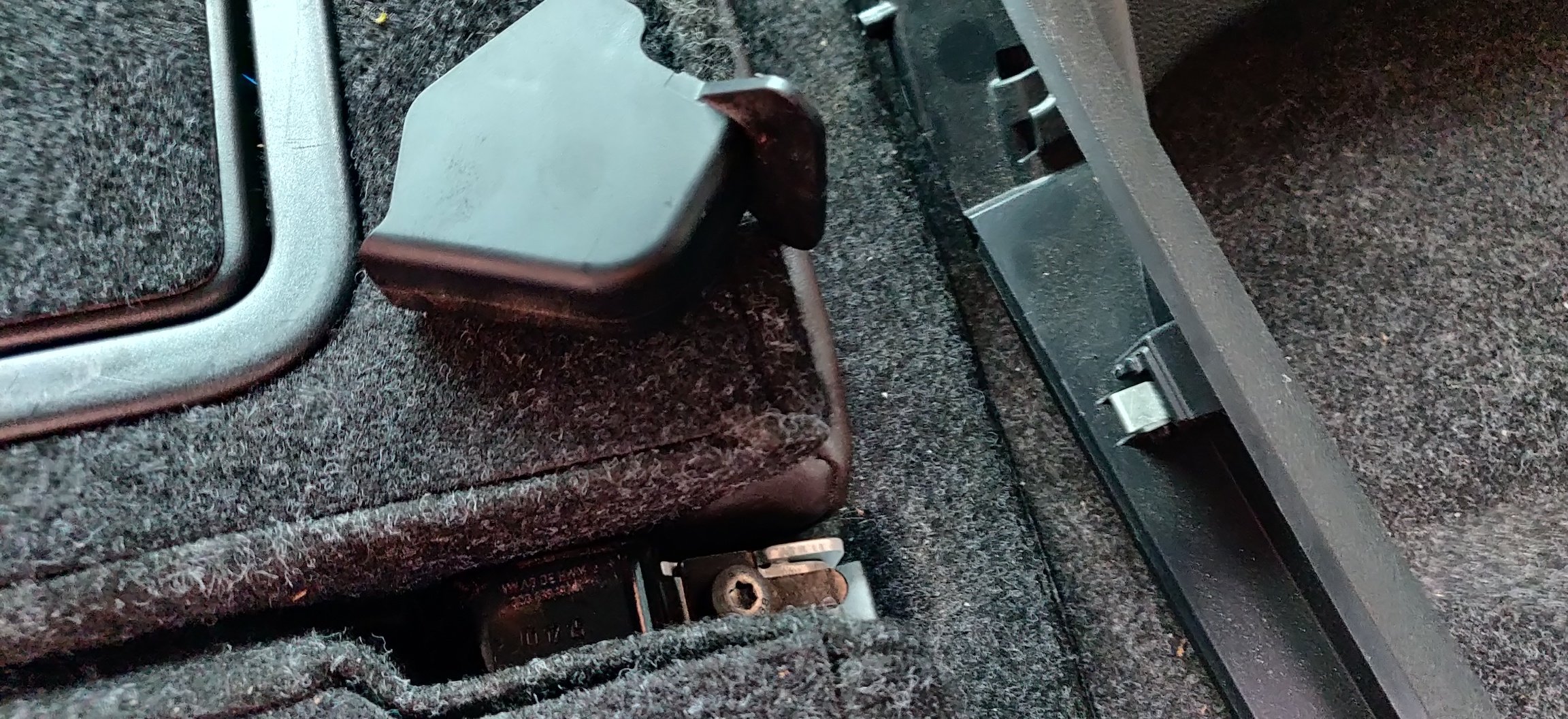

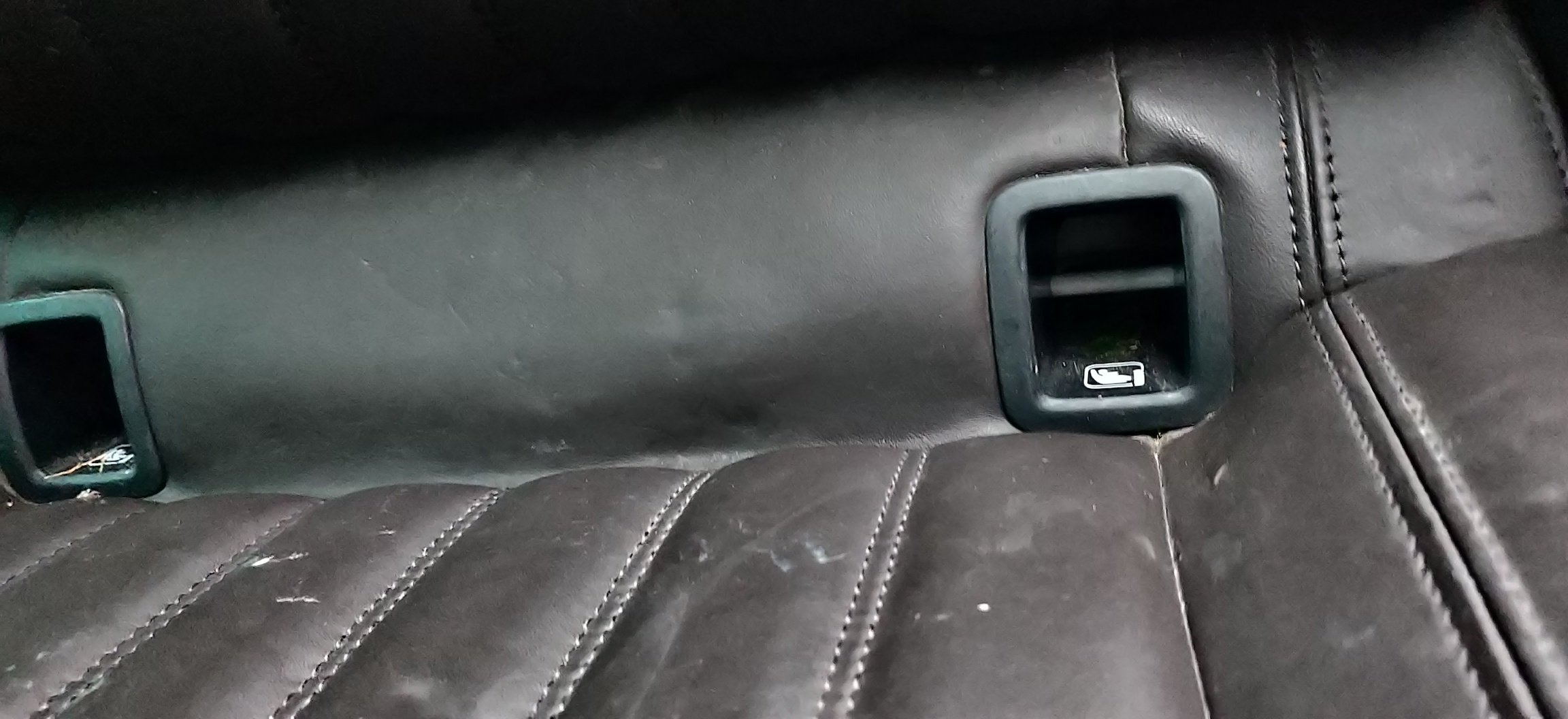

So one thing the workshop manual neglects to mention (or maybe it's mentioned somewhere away from the interior section), is when the rear seat bench (the lower bit) has Isofix attachments:
So the workshop manual says to lift up from the front with sharp upwards direction, then some wiggling to get the bench free, but not mentioning that these clips are probably in the way first.
So if anything this https://www.youtube.com/watch?v=9VTj0yUAYew nails the steps required. It's for a Golf R, but it's nigh on the same car (right?!) and the steps are actually the same.

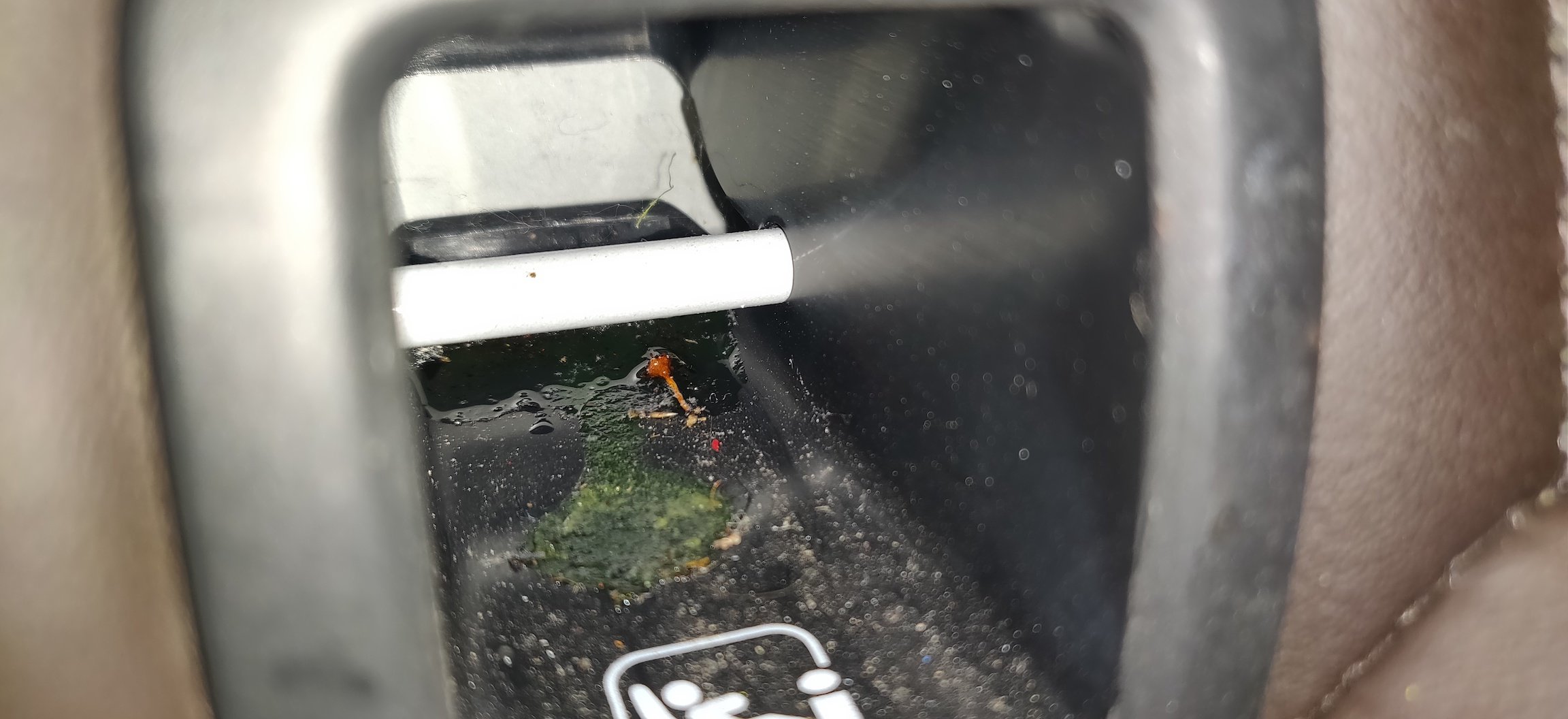

So essentially, looking at bit closer:

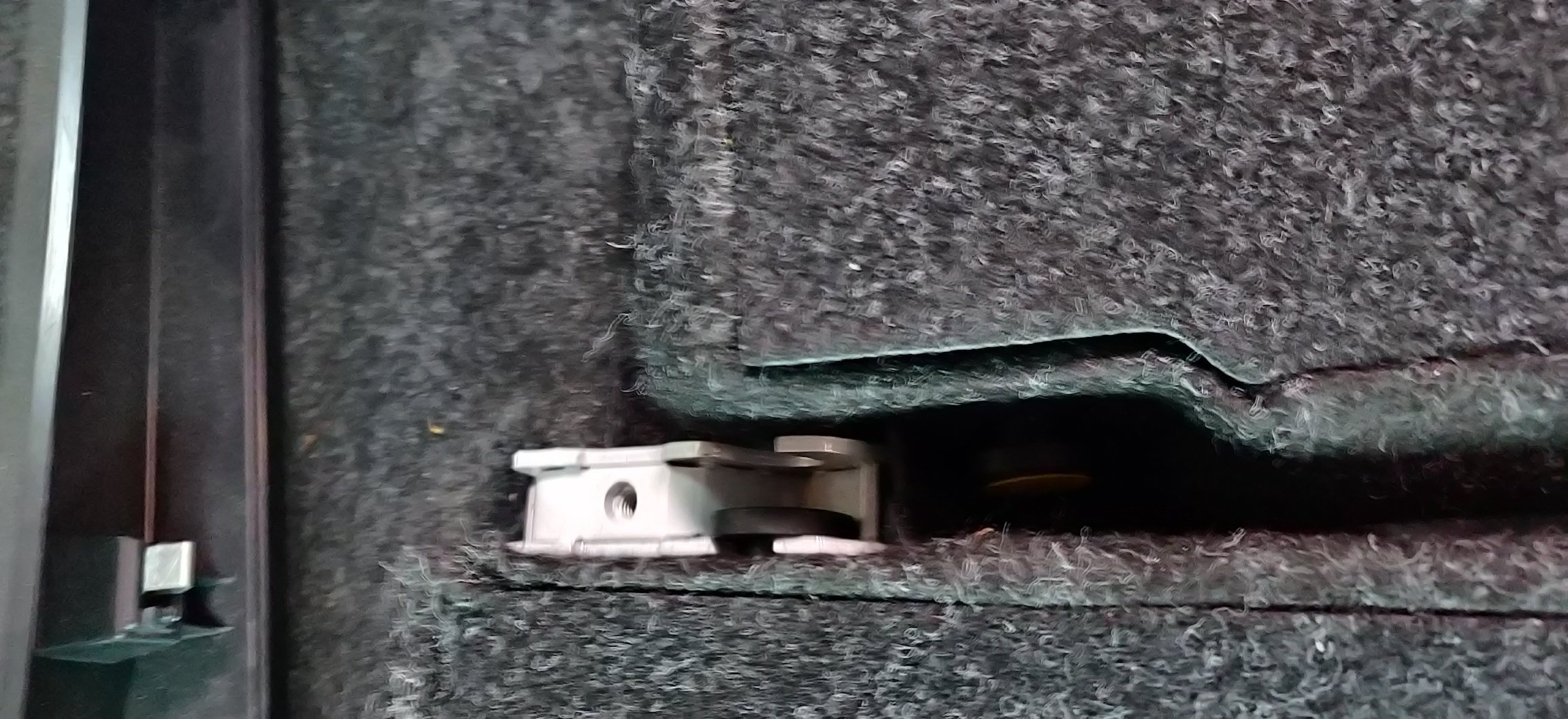

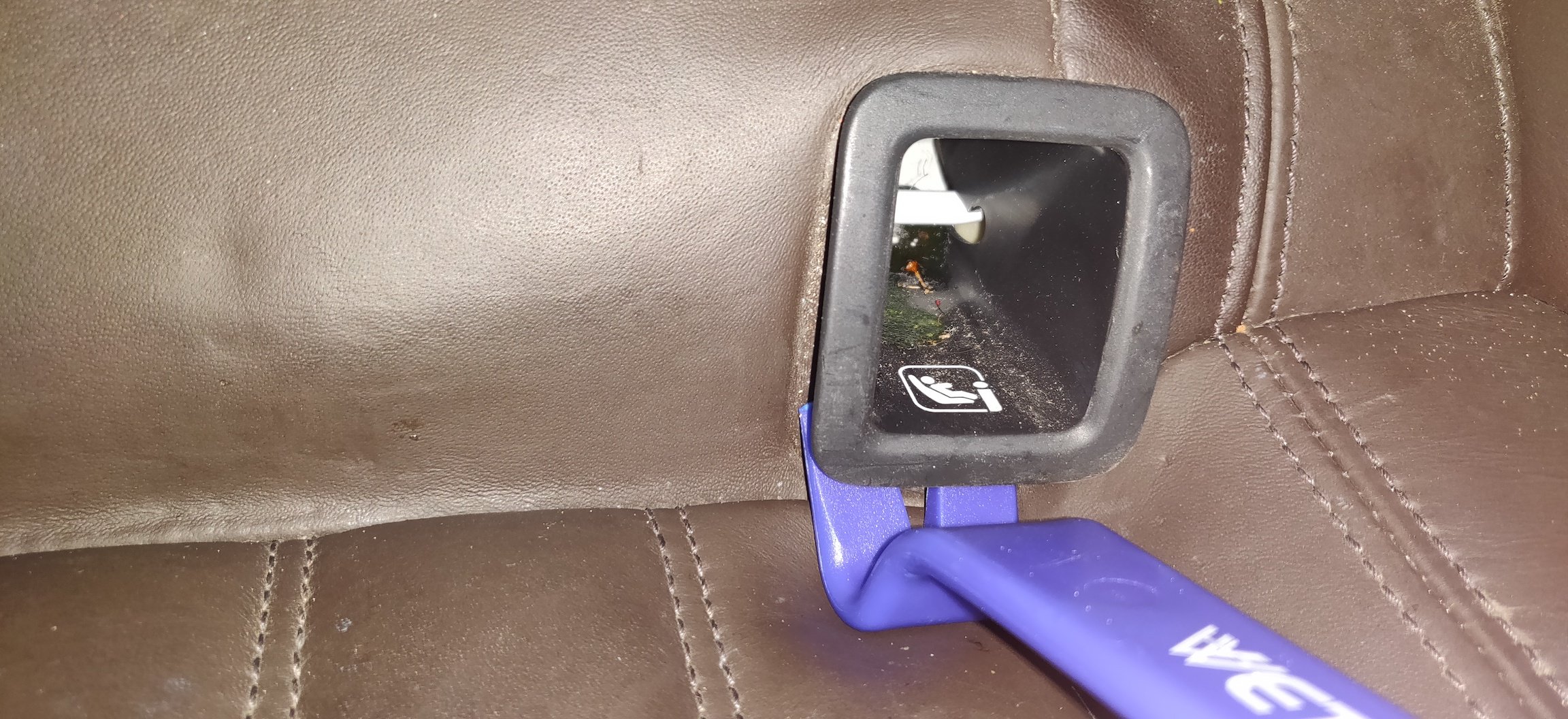

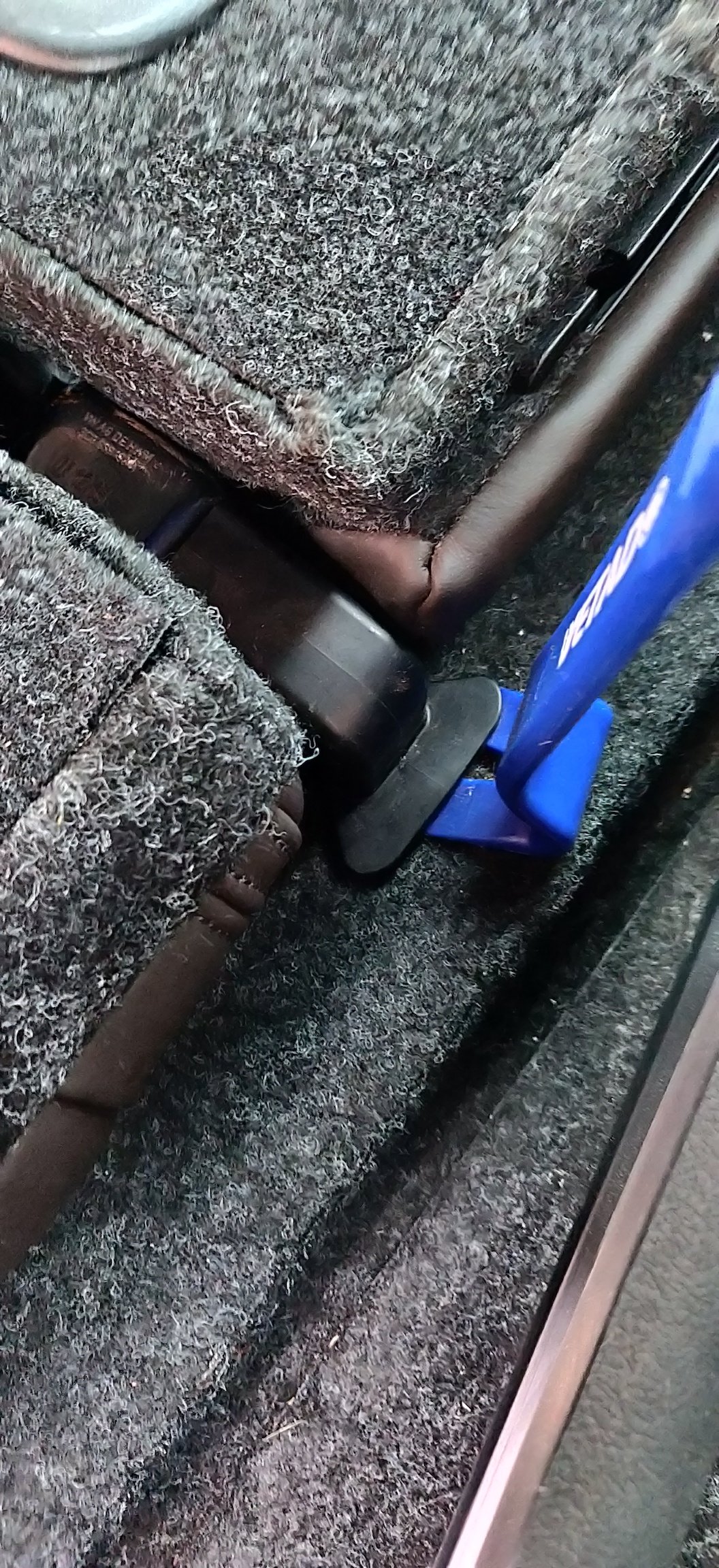

The mankiness in this clip will need to be sorted later, but the clips have a sorta angle in its groove meaning a tug from the underside upwards is enough to free them:

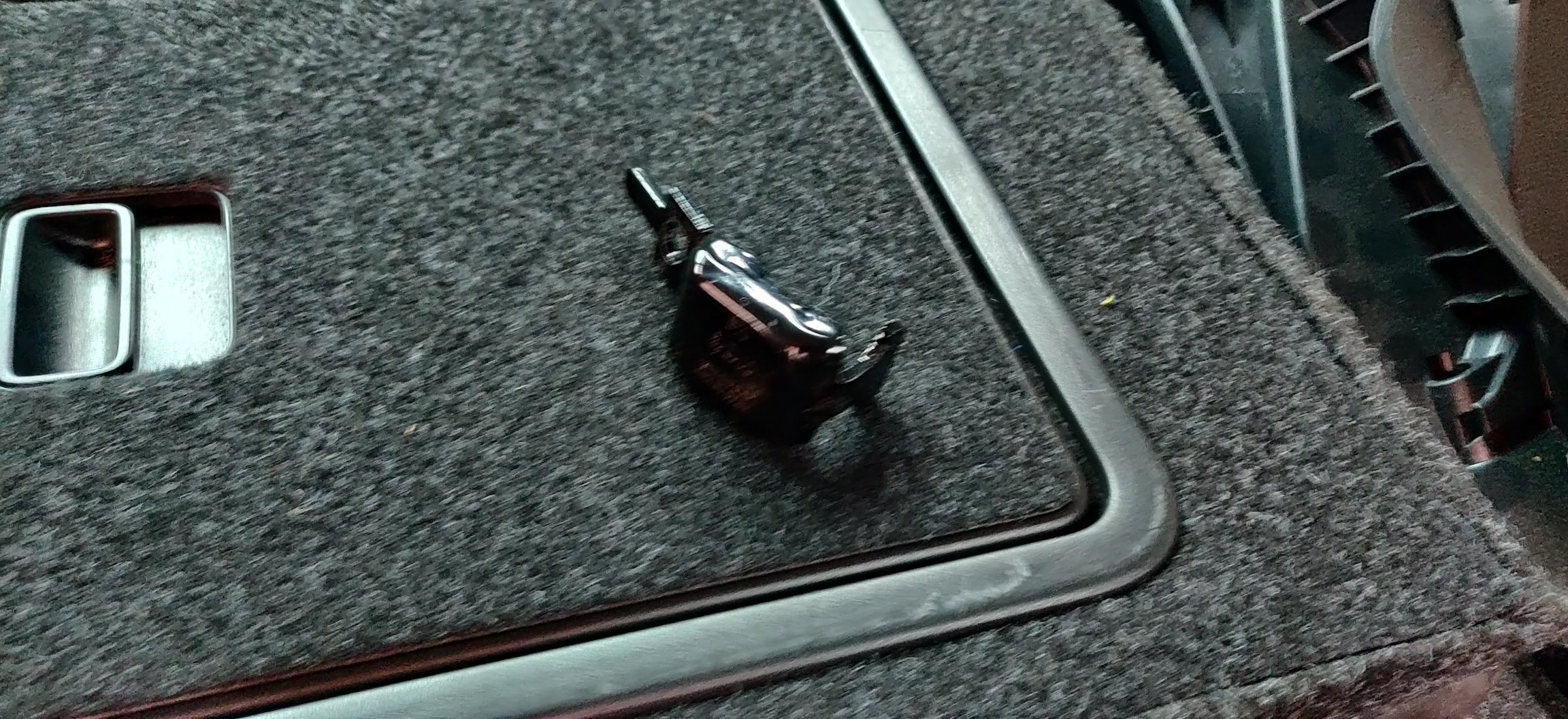

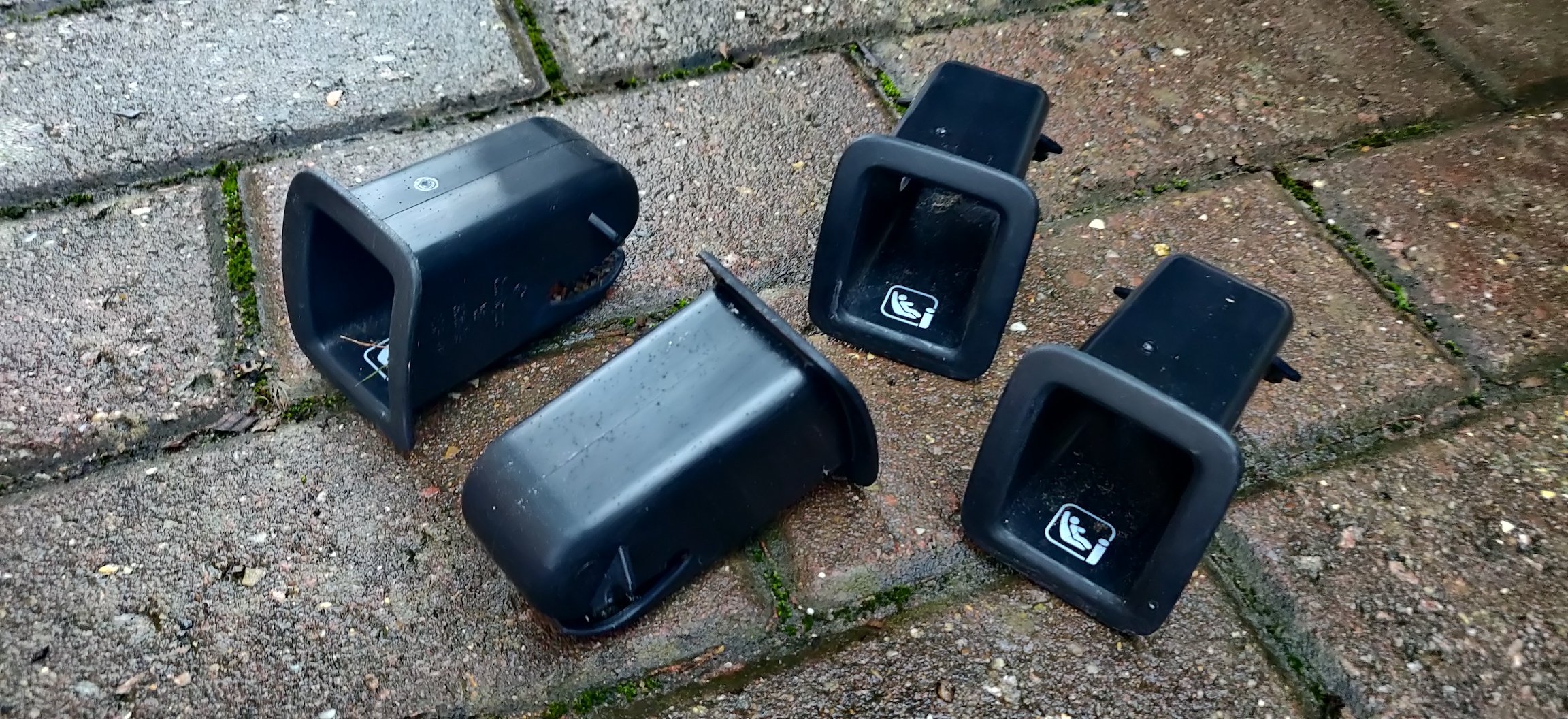

Lo and behold it starts coming loose and then pops free, to be pulled out, do so for all four:
Then, as per the YouTube video, sorta use your knee or something to get some purchase to push the bench slightly back, and then upwards in a U like shape, and eventually:
Do the same for the other side:

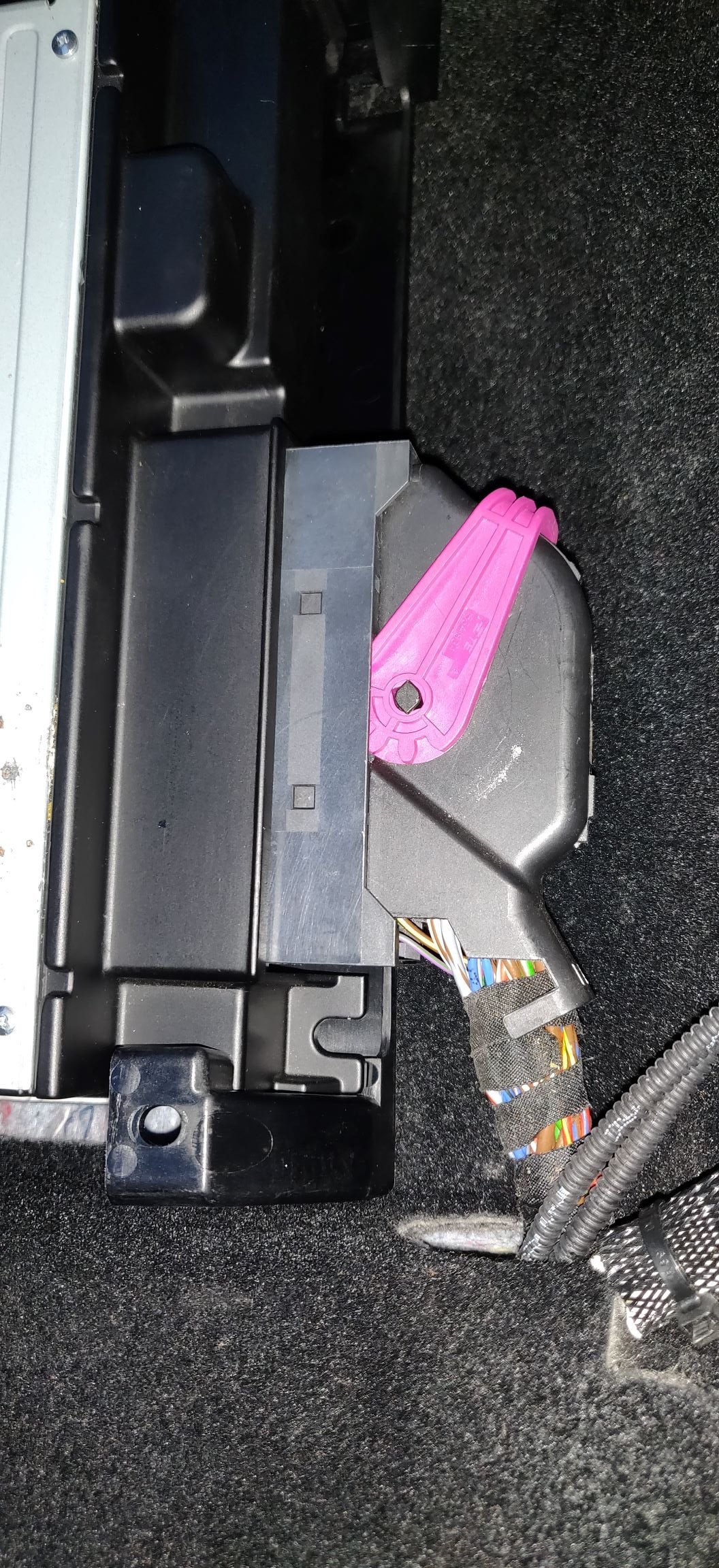

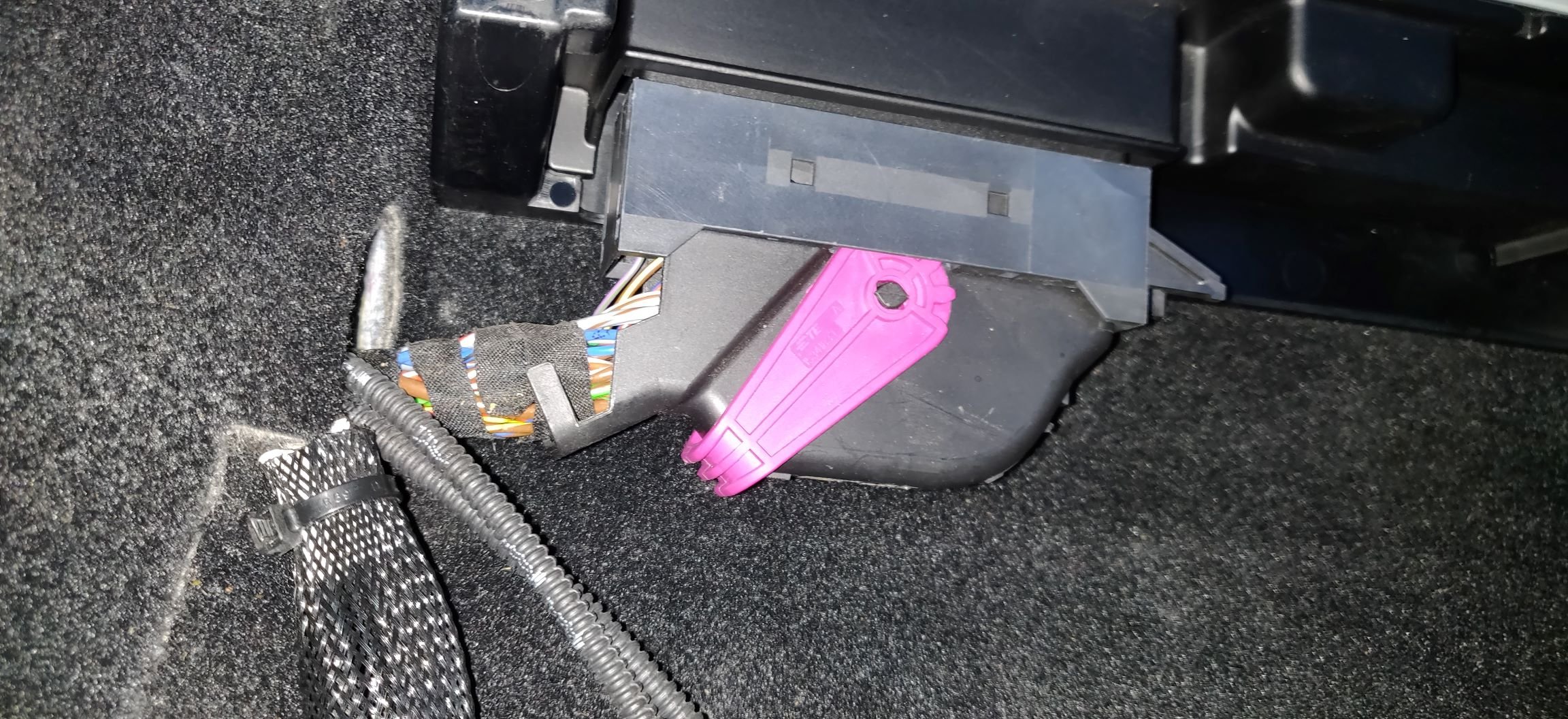

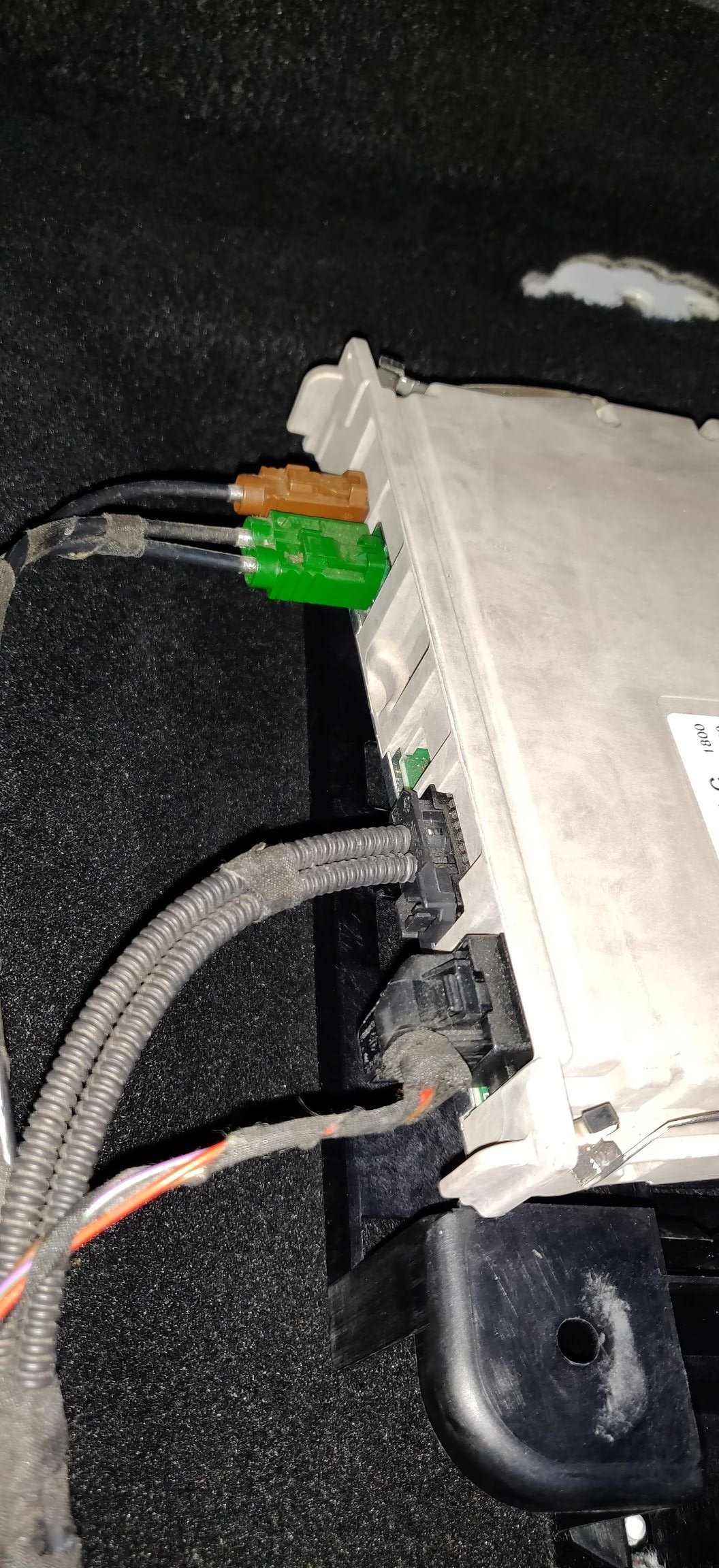

You'll then be presented with a couple of electrical connectors, so free those, and that should the bench freed.

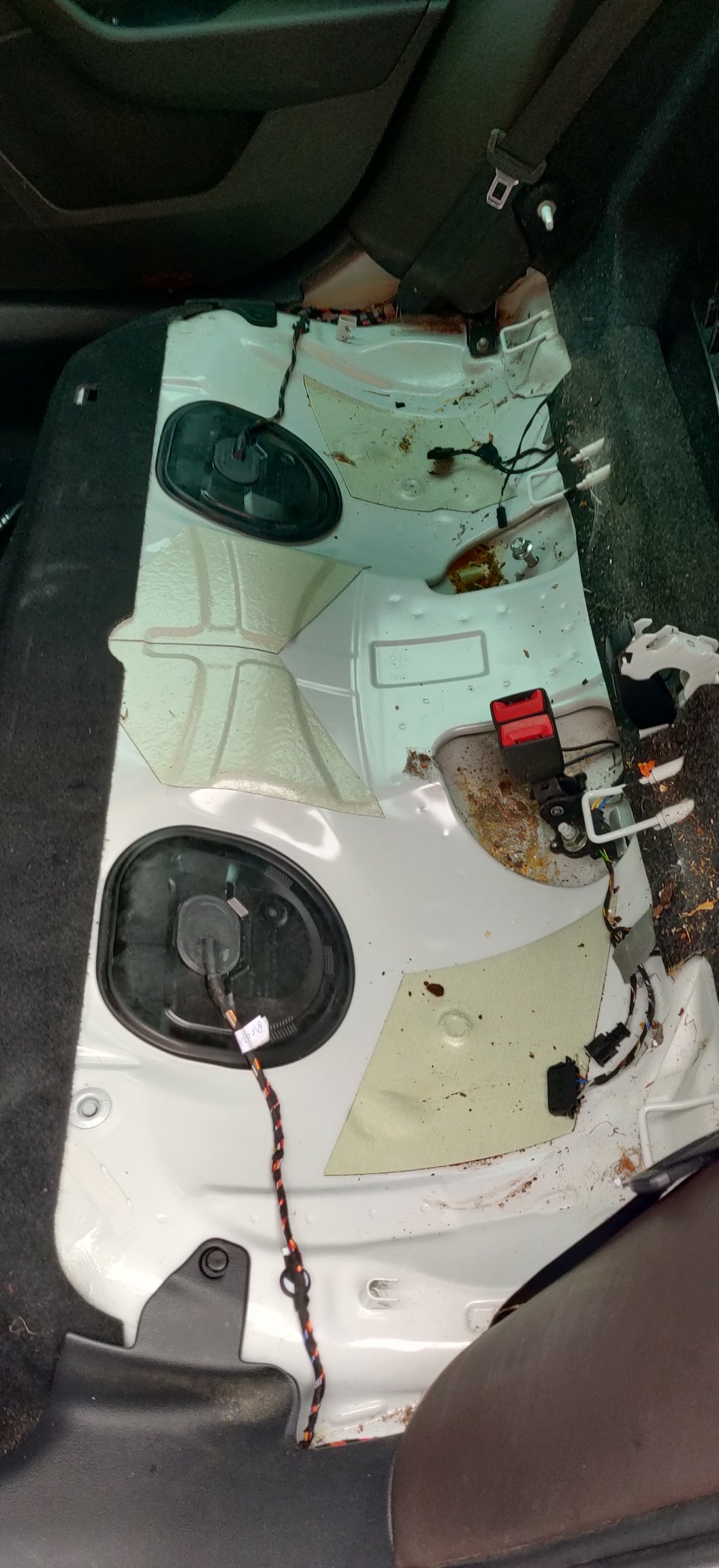

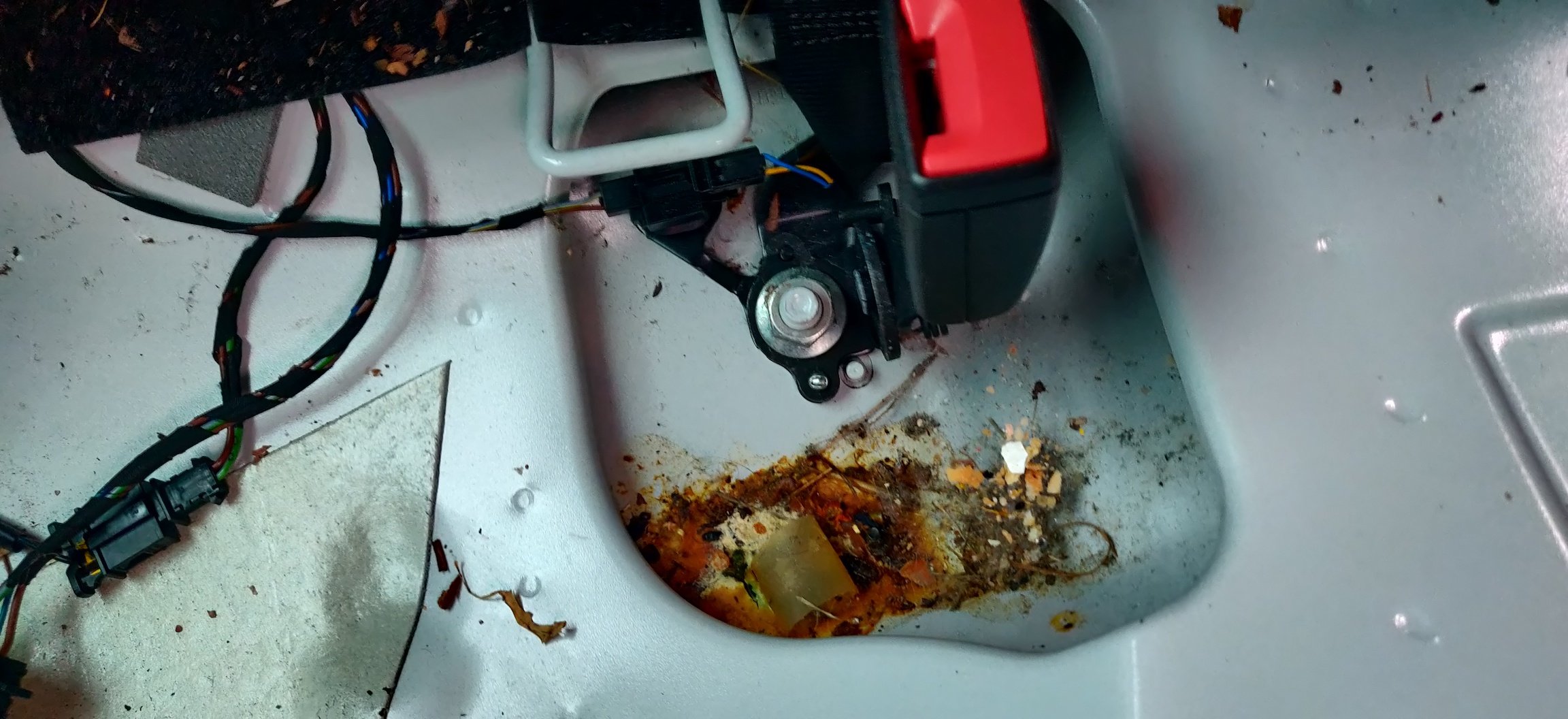

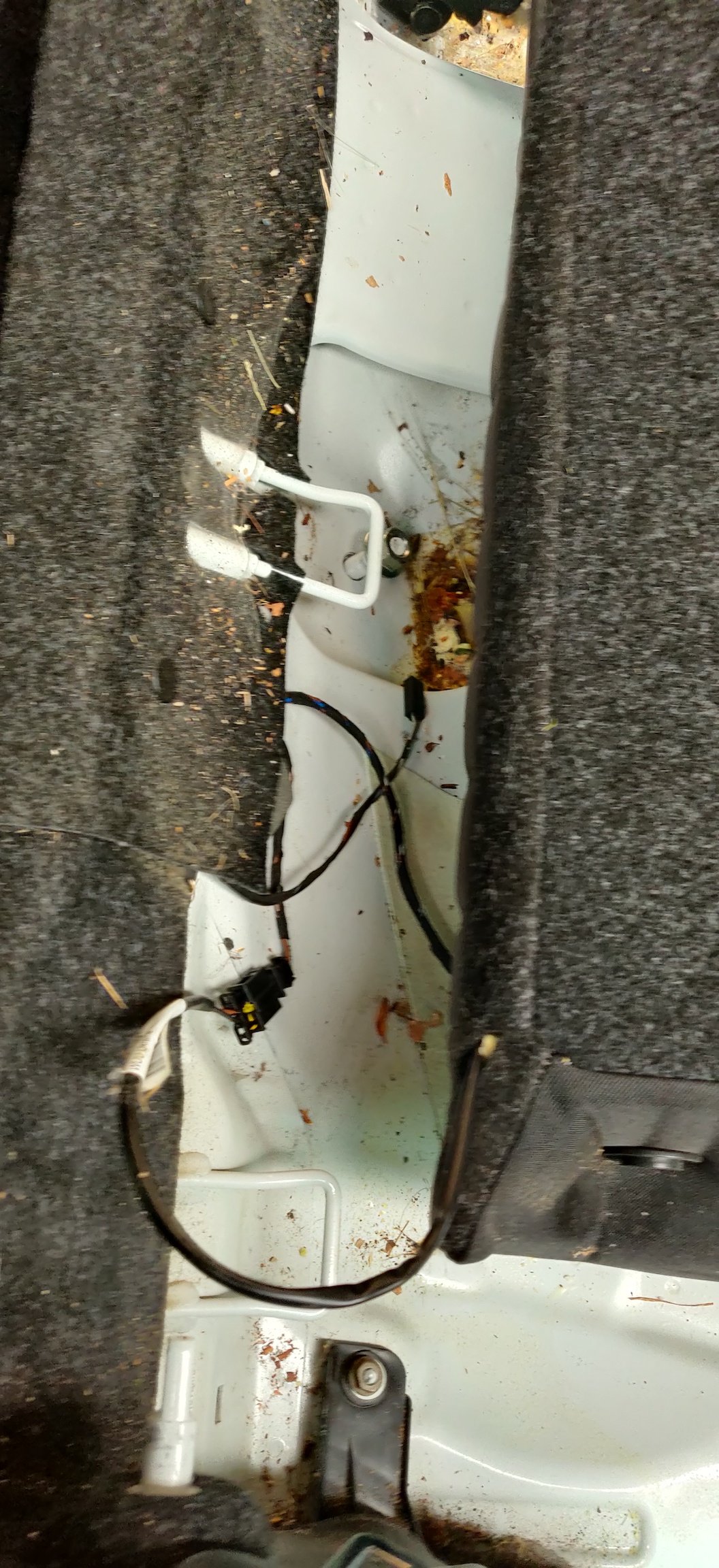

This then reveals the central seat belt anchor mounting:

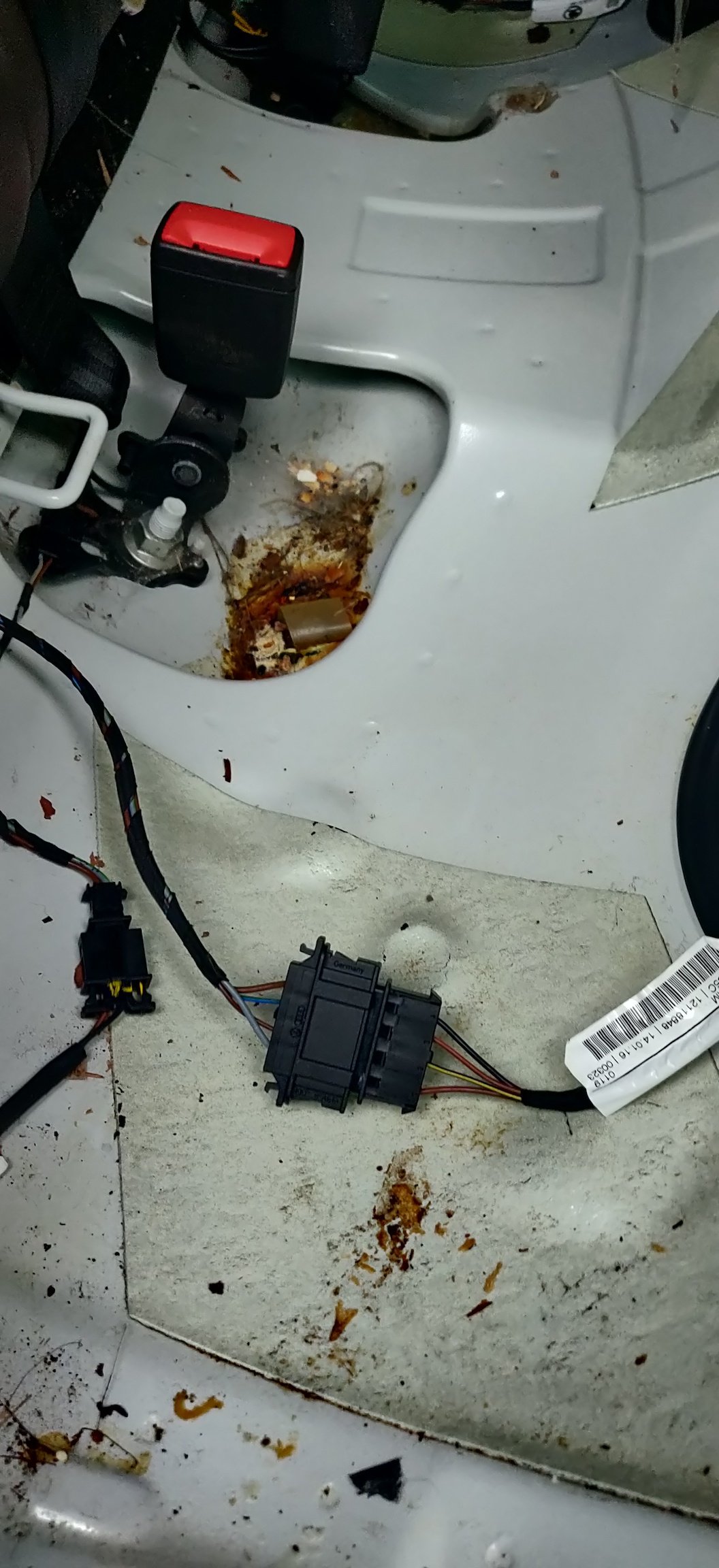

This was a 17mm nut, so undo that, and then disconnect the electrical connector. This one is a little fiddly, there's a tiny tab to be pulled away on one of the connectors whilst being pulled. A thin screwdriver and some delicacy should suffice.

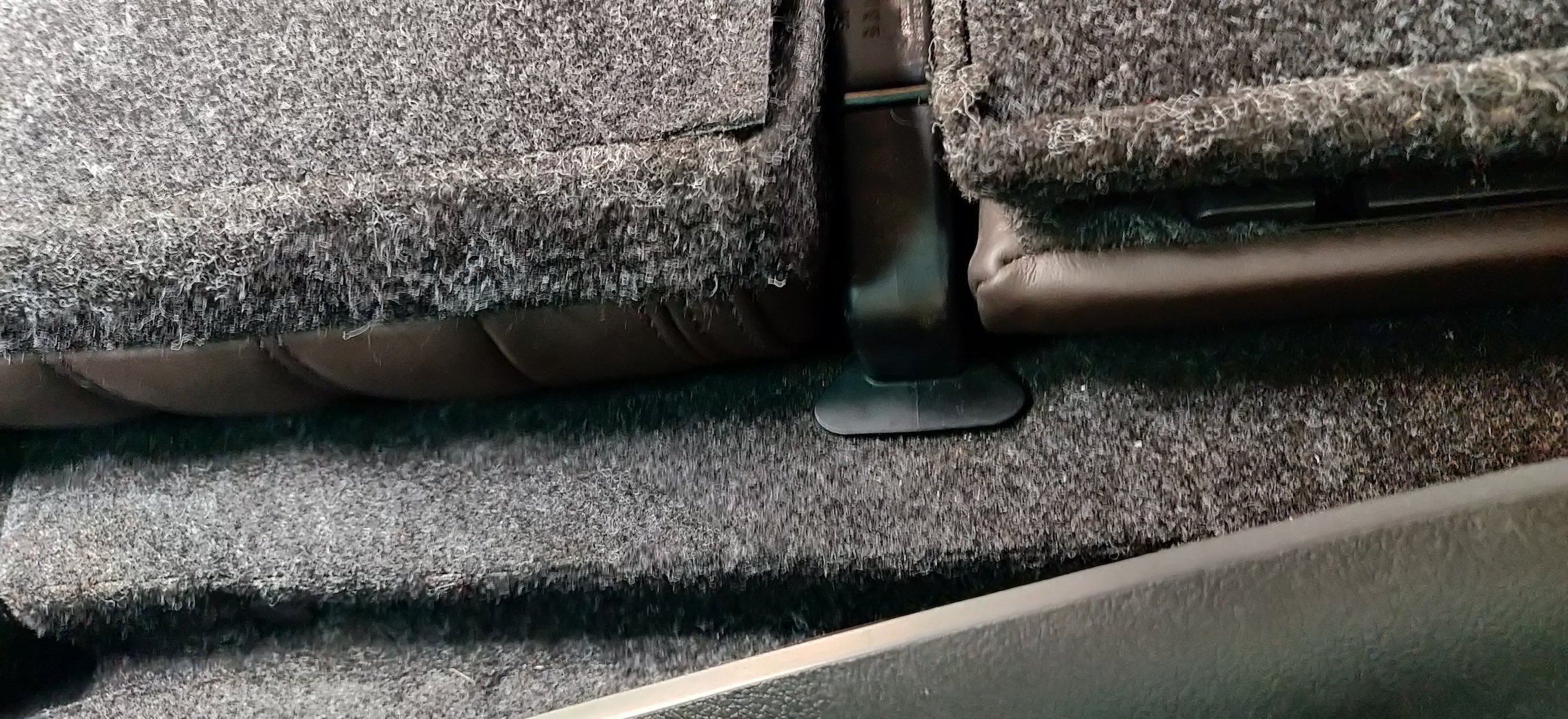

The next step to remove the backrests is the removal this central part, which is really there to keep the seats from popping out. It firstly comprises a plastic cover:
The video showed it pulling out by hand quite easily, but I had to use a tool:
Which subsequently made the cover pop out and fly around the rear of the car:

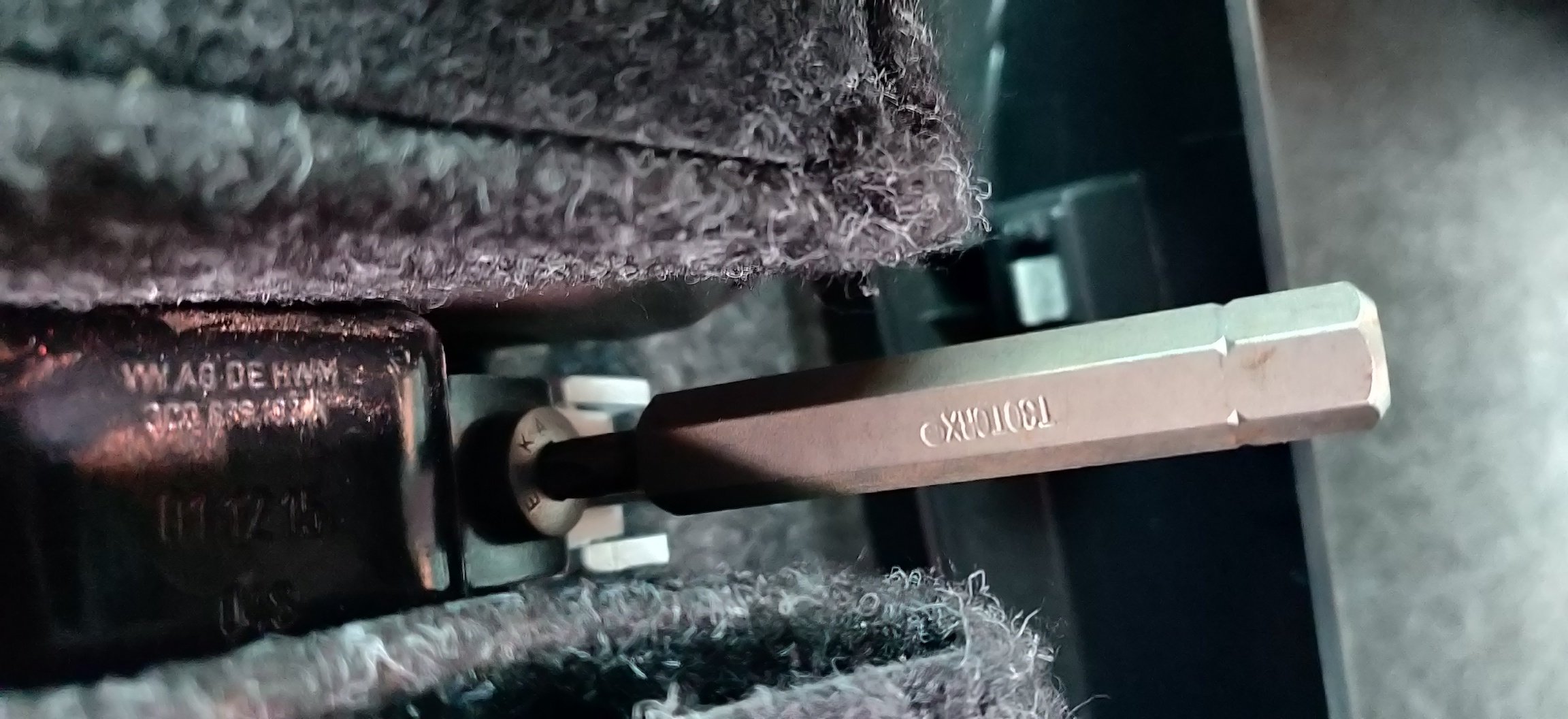

But its removal reveals the bolt for the main metal bit that keeps the seats in place. This was a T30 torx:

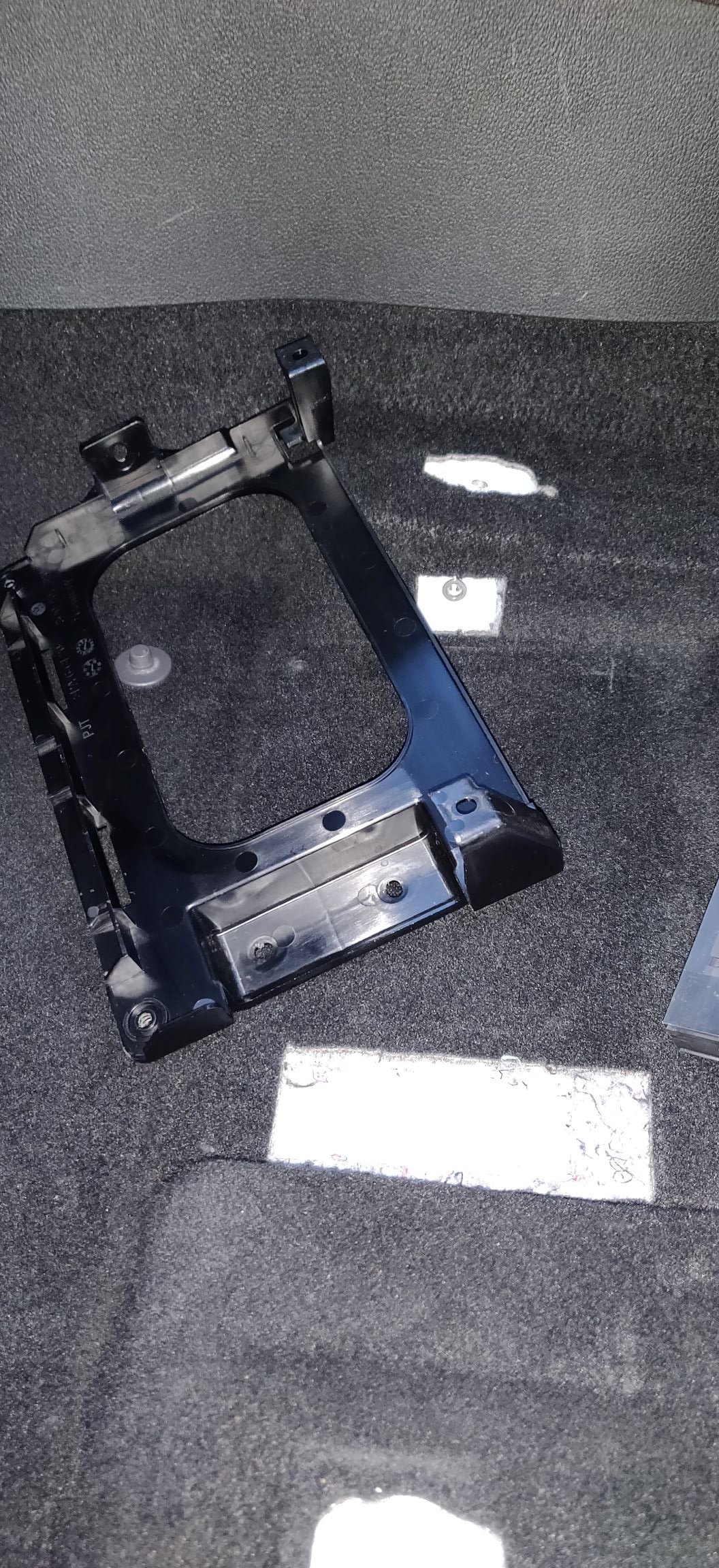

Once removed, the metal black part that does the work can then be removed. I had to do some wiggling and messing around with the seat back rests in order get it free, and I may have bent or damaged some of the backrest plastic doing so:
Regardless, there's now nothing to stop the backrests from being removed. They both sit on the hinge in the middle, and without the metal clip, can be lifted up:
With one side lifted up, you can then wiggle it away from the side of the car:

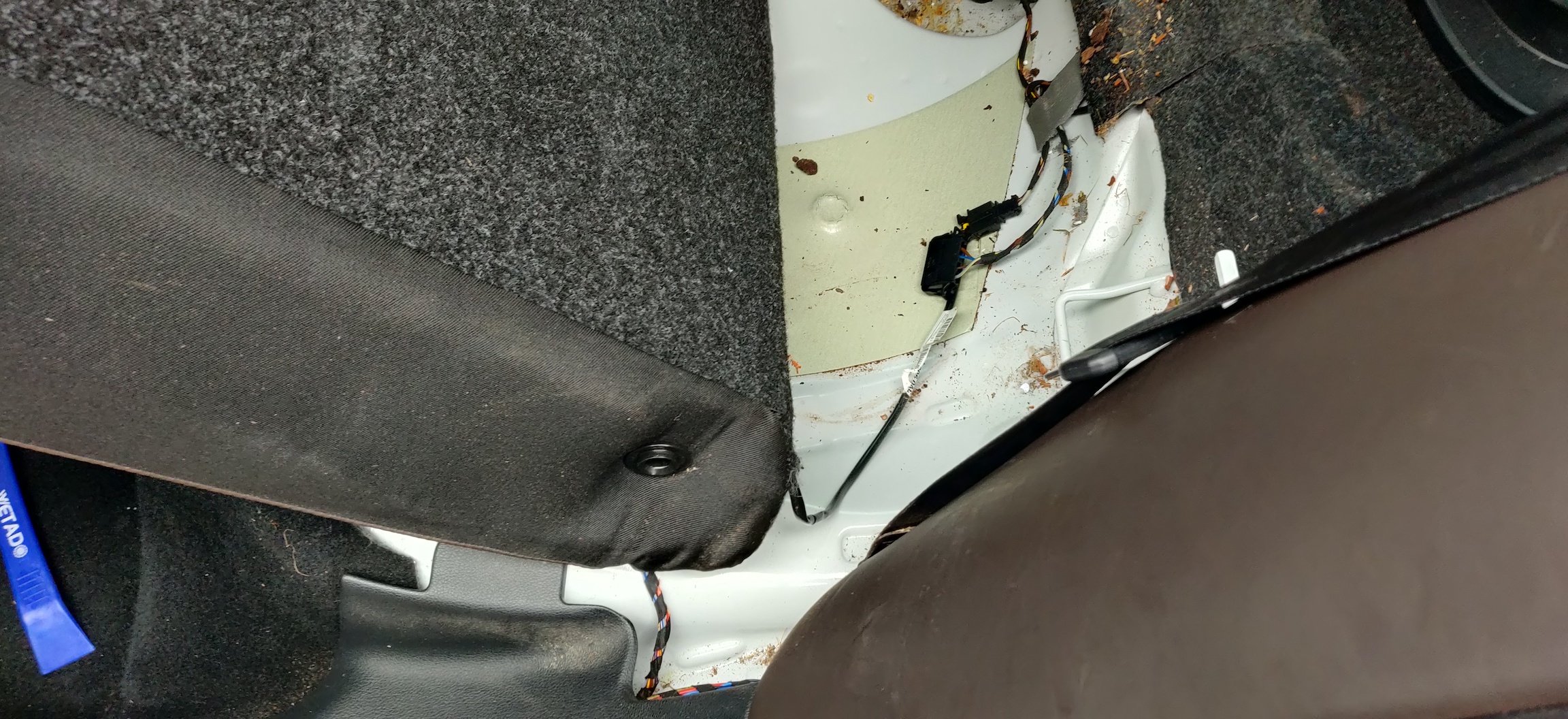

The white stub can be seen in the above, which is what the seat locates into. Disconnect the wiring from the backrest:

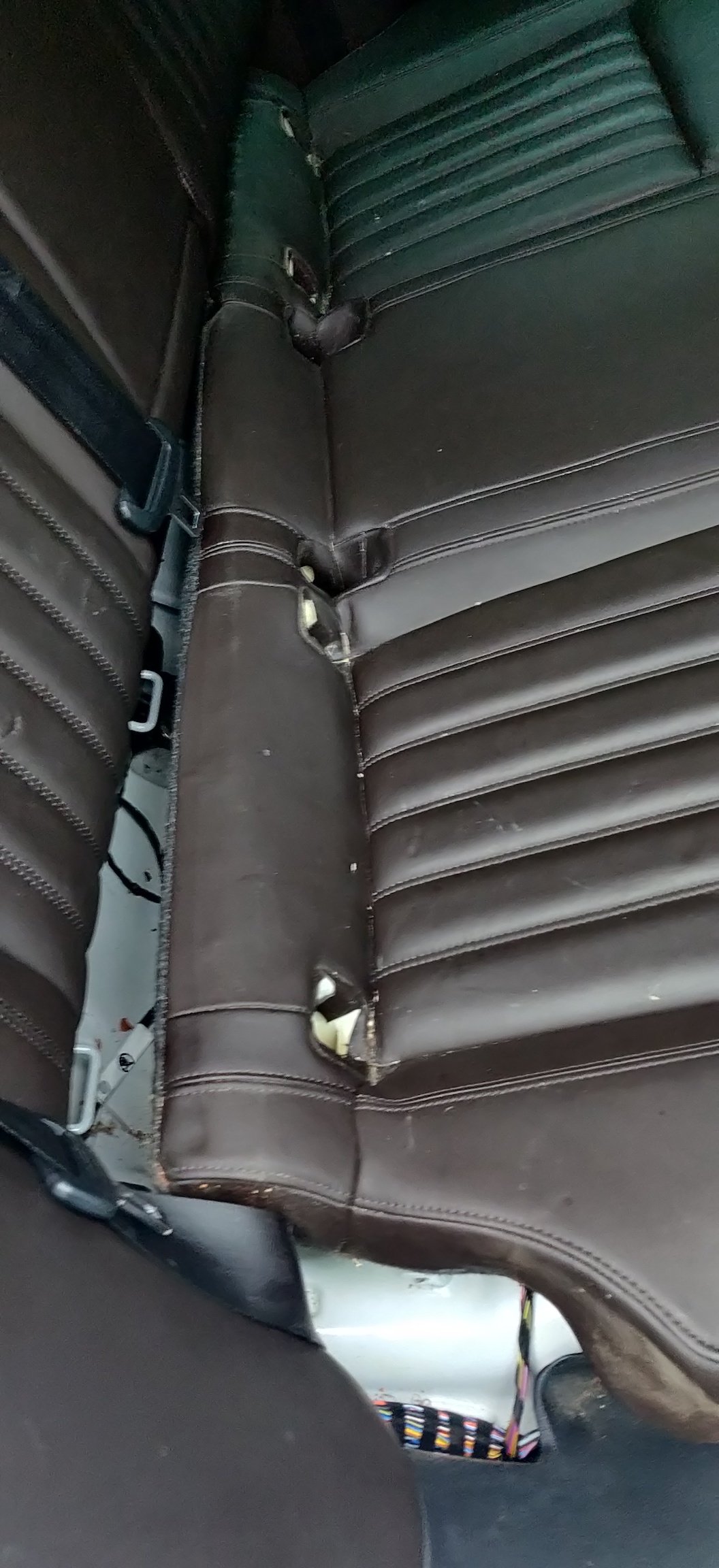

Then repeat for both sides, and the seats are then freed:
Once the seats were removed and placed aside, I noticed this:

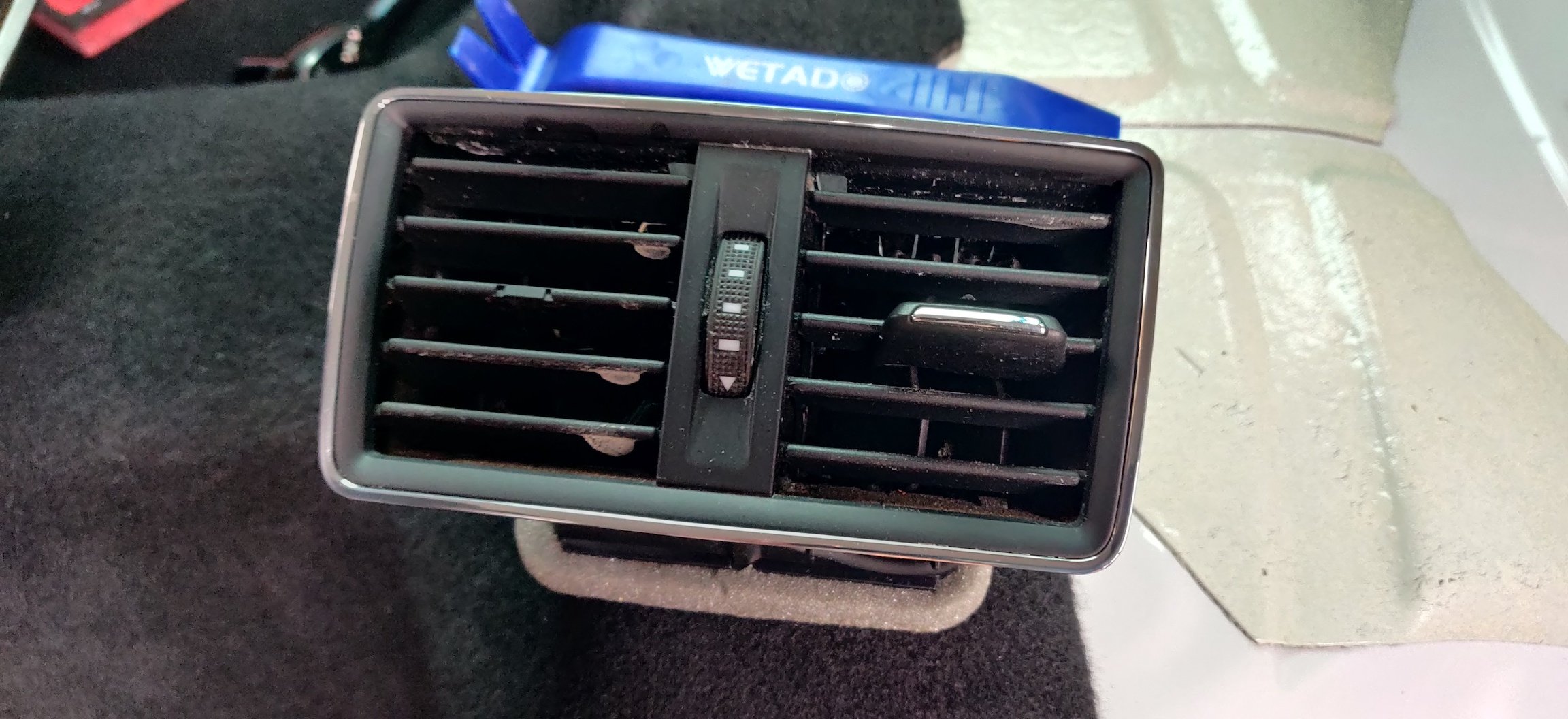

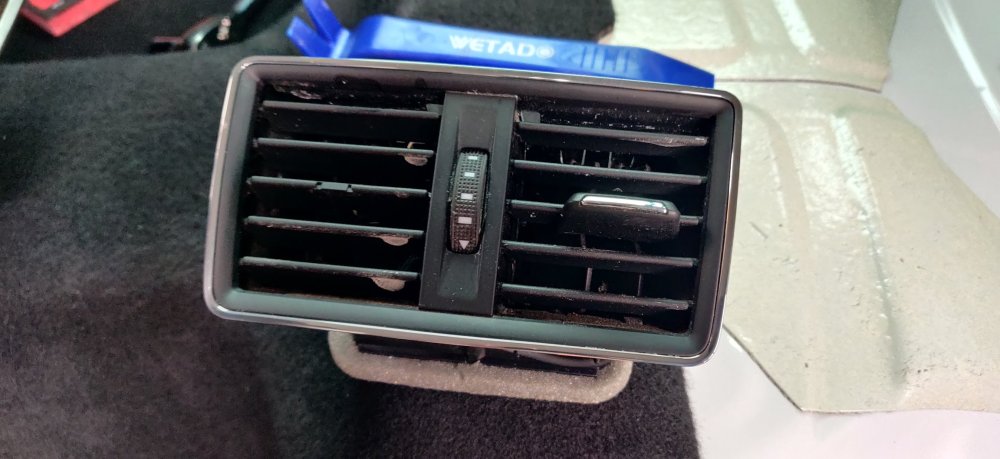

Decided to remove this vent from the centre console, looks like a stray foot or ham fist pulled off the left side tab thingy. I imagine sourcing a replacement is probably easier than attempting some repair.

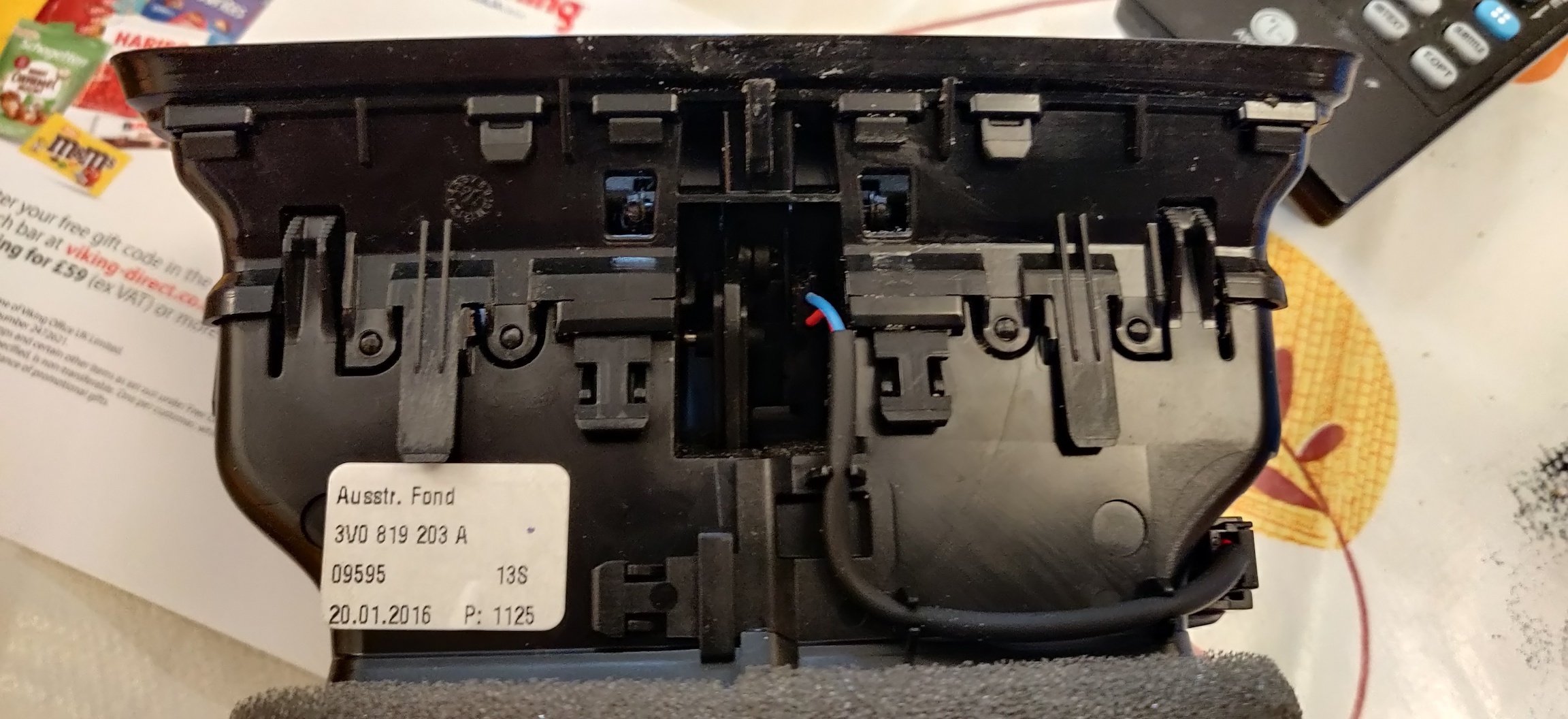

Looks like 3V0 819 203 A.

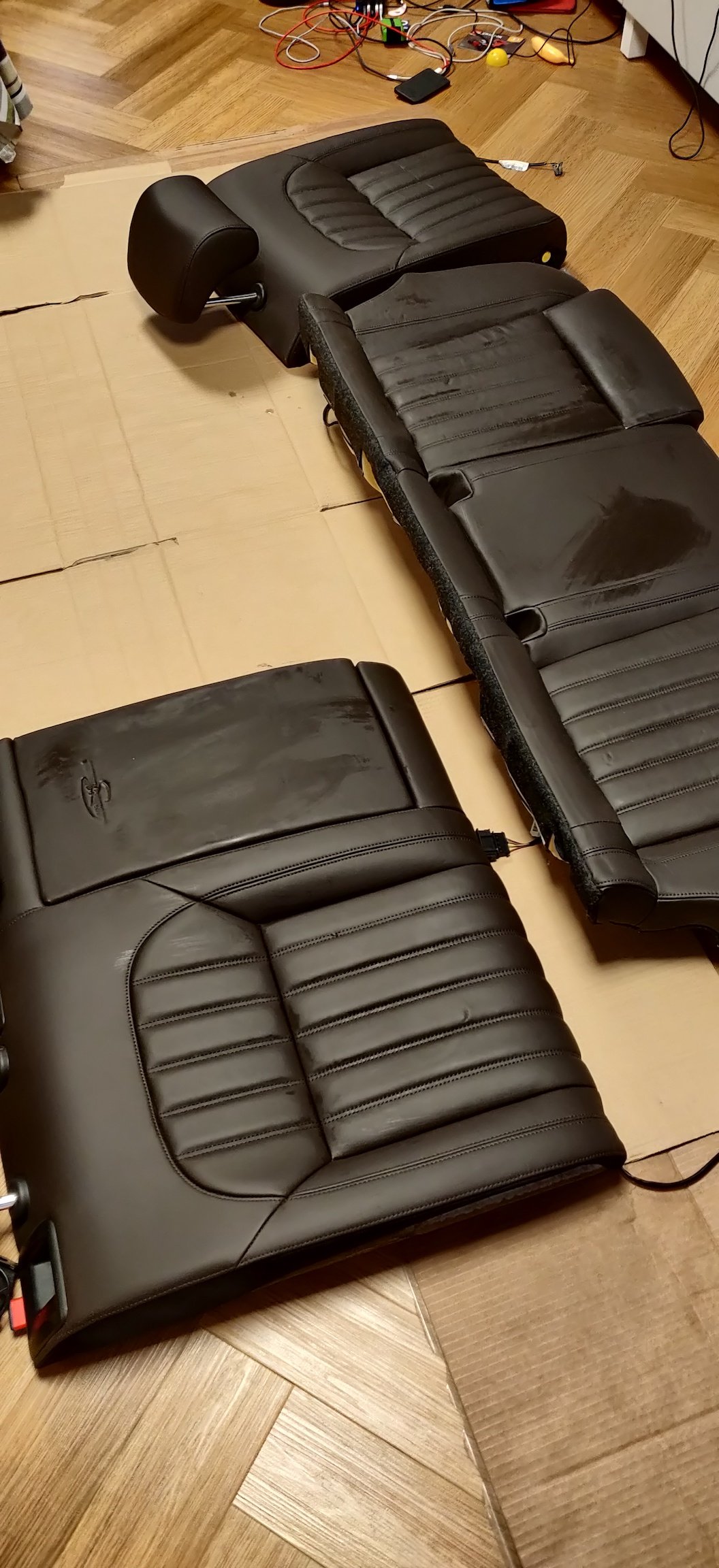

Once I had another spare moment, I went over the seats with a damp rag, with some elbow grease on stubborn bits, then gave it a go with some Leather Cleaner. Auto Glym stuff which was lying around the garage:
If I'm keeping this car long term, I'll probably have to arrange a leather guy to do some spot repairs, just a few little imperfections, but otherwise perfectly functional and comfy.

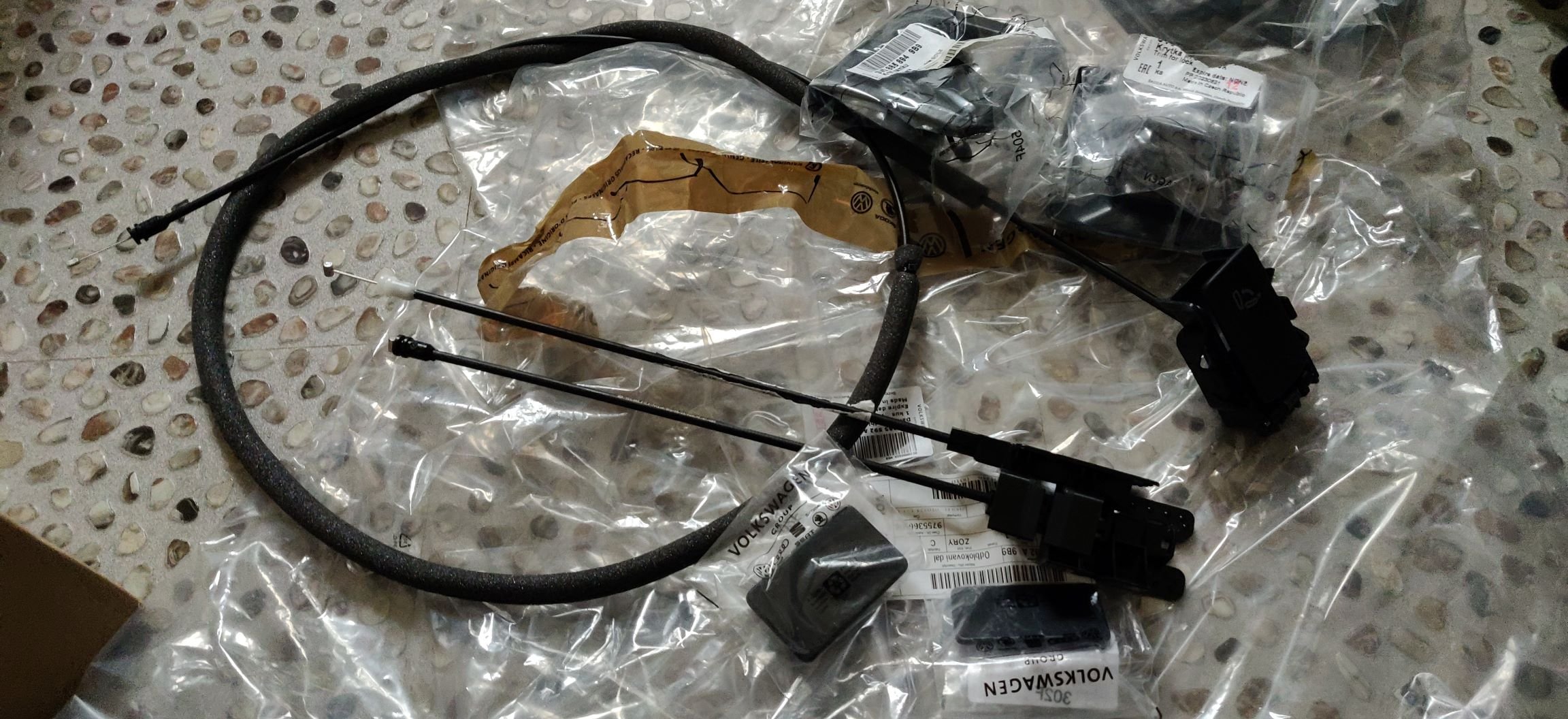

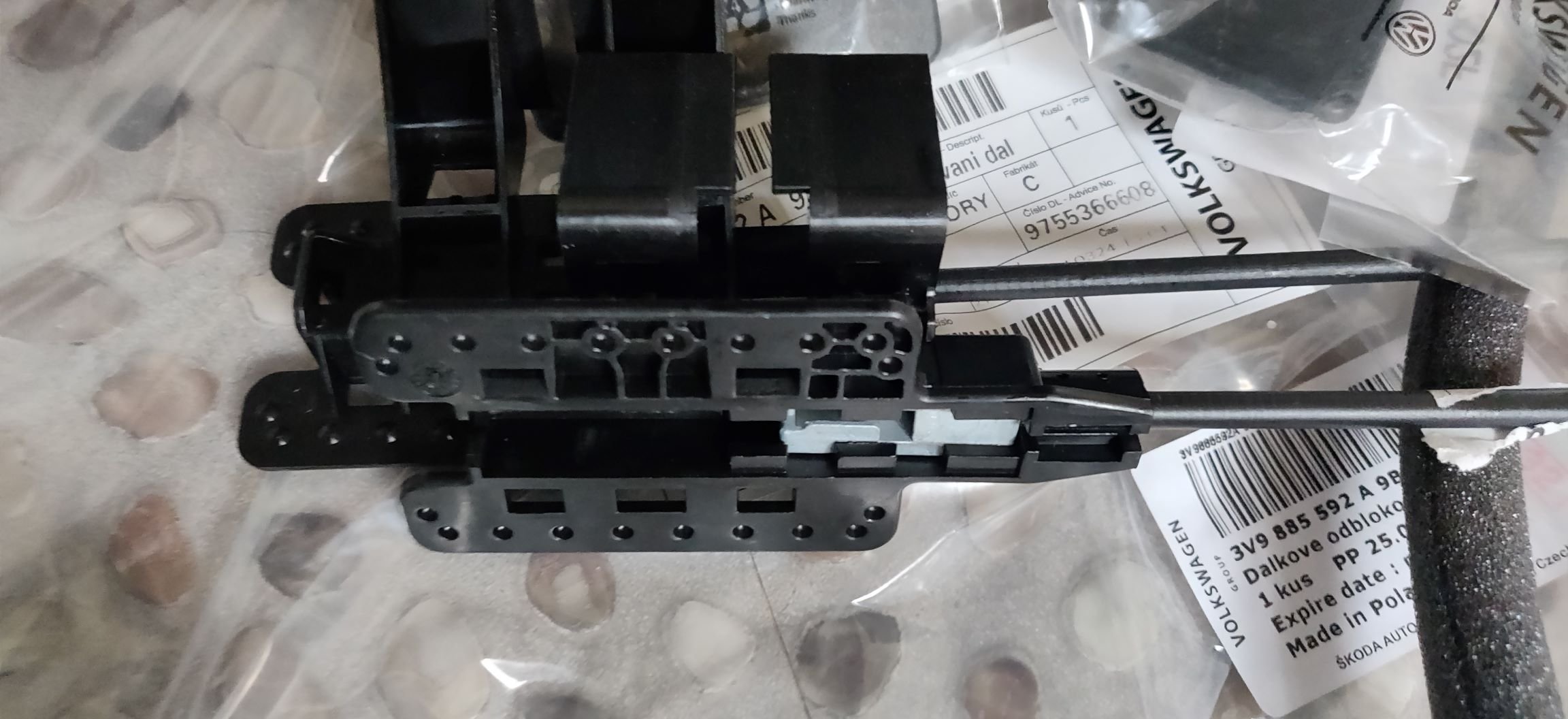

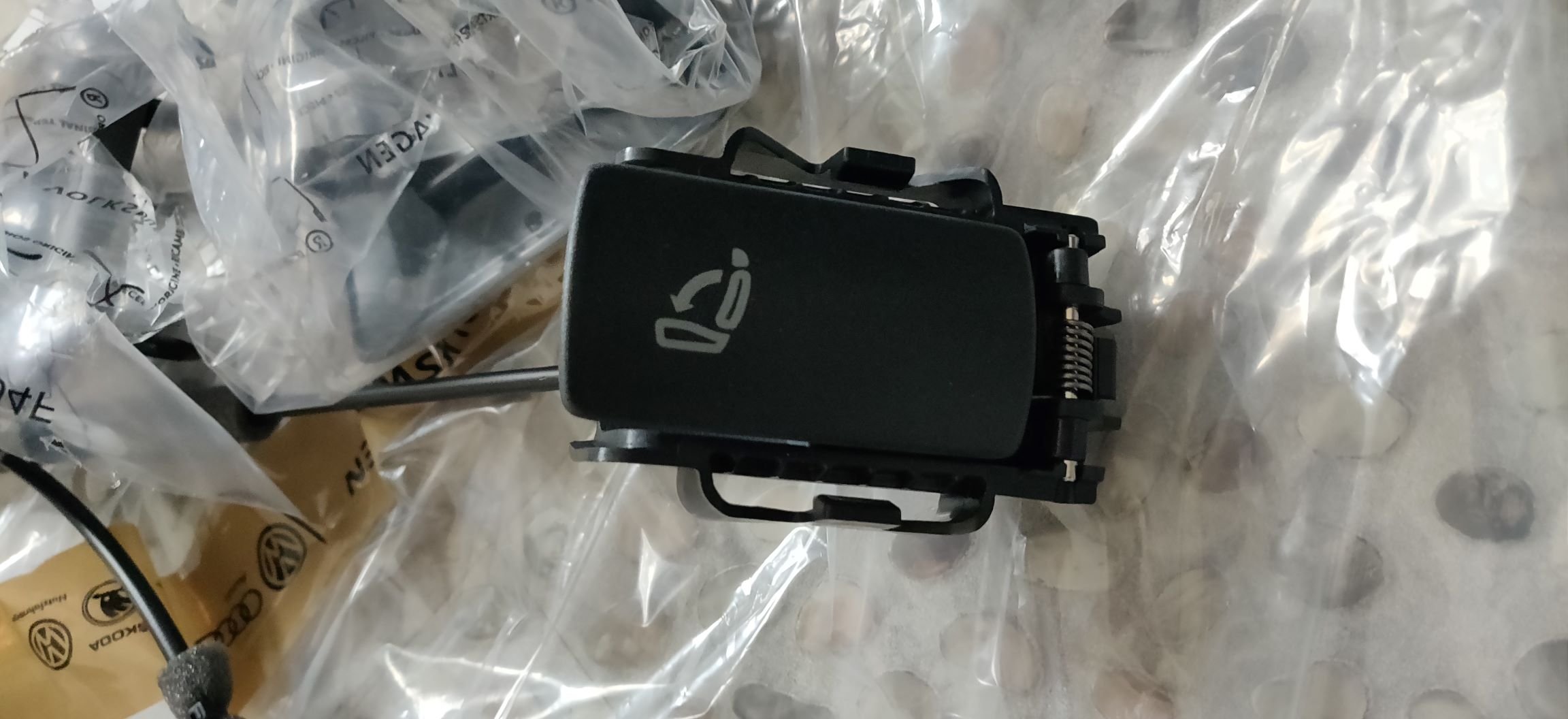

With the seat backrests in front of me and easily inspected, I started to think about the seat release from the boot, and to be honest, am pretty stumped.

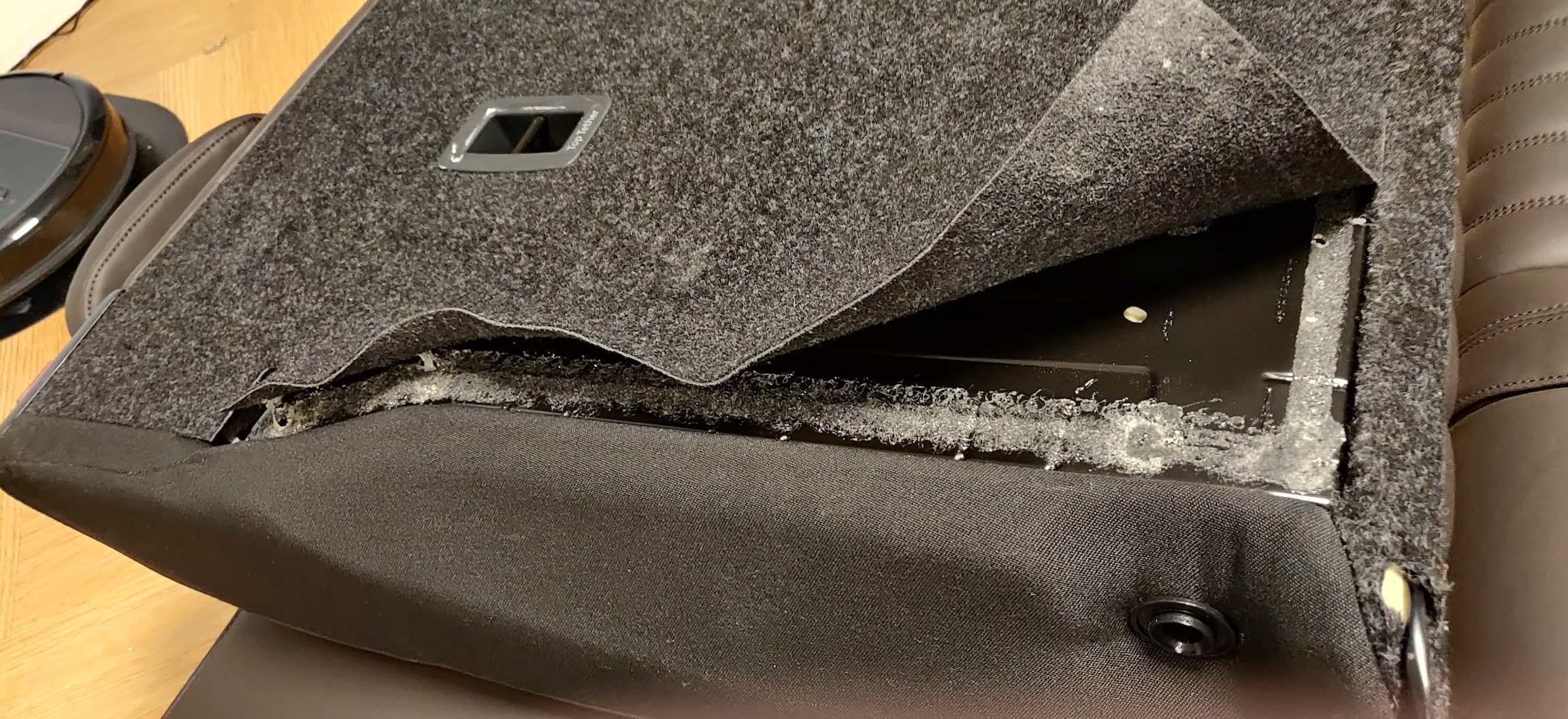

I started to look at the rear and peel it away, using a hair dryer to add some heat to loosen the glue:
At this point, I was expecting to see some sort of opening, or something to indicate how it might be possible to retrofit the bowden cables.
However, I couldn't immediately see it, so I chickened out and have patted the rear cover back onto the contact adhesive. I sense I will need to be even more destructive to get at it, probably needing to remove that side padding completely to get anywhere.
If anyone has any reference pics at this stage, I would greatly appreciate it!
